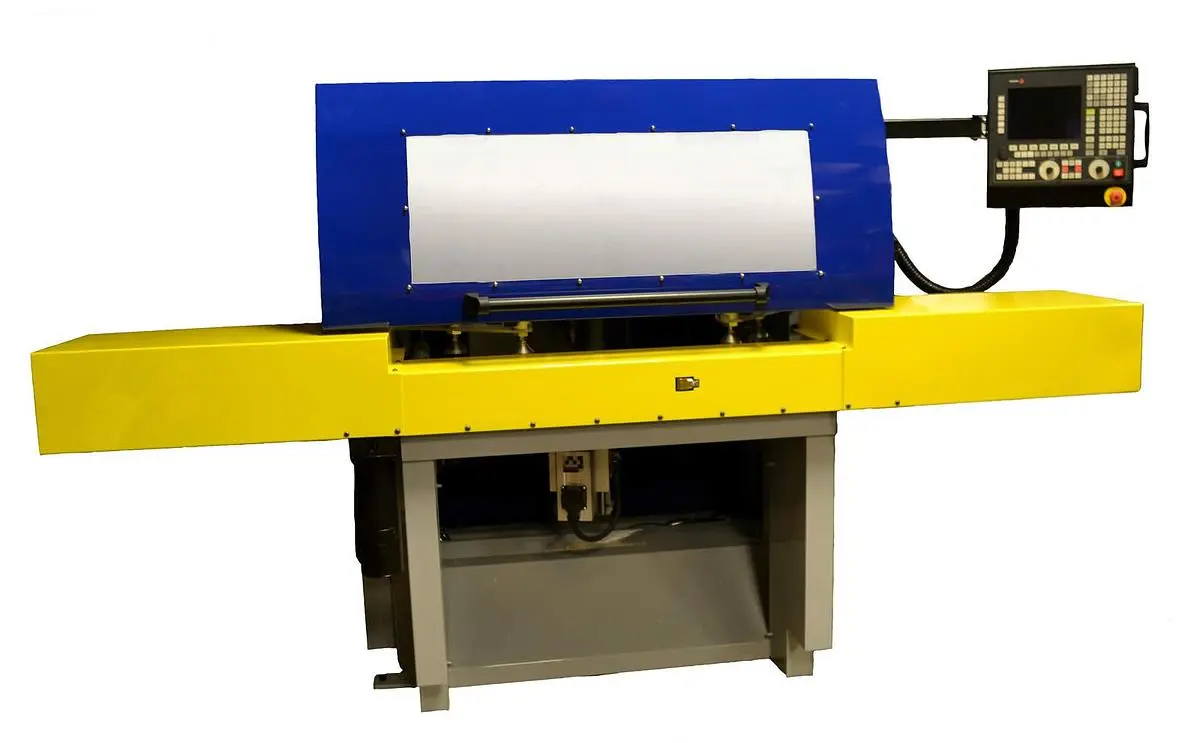

NEW US CONCEPTS CSR-750CNC AUTOMATIC CNC STAIR ROUTER

US Concepts CSR-750CNC Automatic CNC Stair Tread Router

New machine built to order allow 8-10 weeks for delivery.

A quote with a final price will be provided for your specific machine order.

Heavy Duty construction with Cast iron arms and walls
FAGOR CNC 8055i/A 3-axes package
Standard programs are:
Standard Box Step with Round Nose
Blunt Nose with Rake or Straight Riser
Open Pan Rout with partial Riser or no Riser
Temporary Stair Rout
Center Open Horse Cut
Open Stringer cut with 45° Riser relief
Two 5HP High speed router motors
Two adjustable speed drive controllers
Automatic board advance every cycle
Networking, and remote data entry and supervision
Max material width 12″
Material thickness: ¾” – 3-1/2″
Tool shank capacity ¾”
Max. feed speed 300 FPM
Communication ports: RS232, USB, network
Machine dimensions 94″L x 60″D x 64″H
Weight approx. 4200 lbs
Dust outlet 8″
