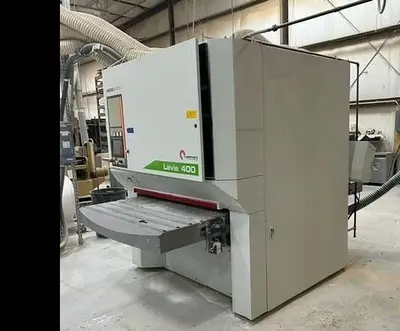

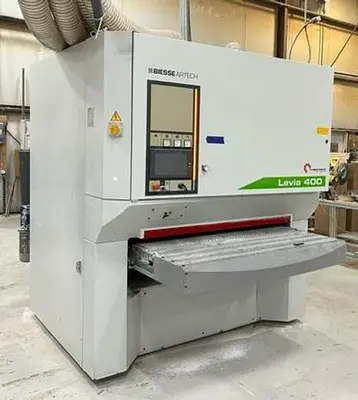

USED 2011 BIESSE BIESSE ARTECH LEVIA 400 - 1350

Biesse Artech Levia 400, 53" 3 Head Electronic Sectioned Pad Veneer / Finishing Sander, 3PH, Belt Cleaner, Outgoing Panel Cleaning - Brush / Air

2011 Model Year, Some Biesse service reprogramming is needed to put back into service. Owner replaced with new sander.

The encoder/relay doesn’t track the parts

The seller purchased new parts and installed them but then decided to buy a new sander instead. Reprogramming of the new tracking retrofit kit is needed by a Biesse service tech.

The parts are currently installed on the machine - KIT RETROFIT [PE502] INSTEAD OF H0102D250A

3-group electronic automatic sander calibrator with transversal belt BIESSE ARTECH LEVIA 400

Working width 1350 mm

Min/max working thickness 5/200 mm

Abrasive belt size 1370 x 2620 mm

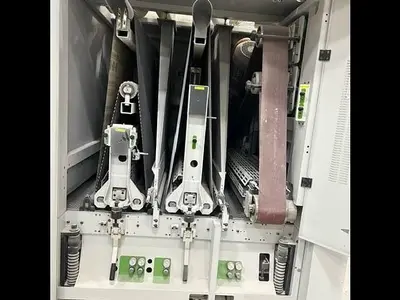

Composition:

42 sector reading barrier - 32 mm pitch

1st Belt Transversal group with electronic sectioned pad with 42 sectors, 32 mm pitch - Motor with 11 Kw (15 Hp) inverter

2nd Group Electronic sectioned buffer group with 43 sectors - 32 mm pitch - 11 Kw (15 Hp) motor with inverter - Oscillating blower for cleaning the belt

3rd Group Electronic sectioned superfinishing pad group with 42 sectors - 32 mm pitch - 11 Kw (15 Hp) motor with inverter

Oscillating blower for cleaning the abrasive belt

Brush unit with 2.2 kW (3 Hp) motor

with 200 diameter roller with quick change system

Device for lateral oscillation of the brush group

Panel cleaning group with turbo rotary blowers

Vacuum hob with 2.2 kW (3 Hp) electric fan inside the base

Automatic system for regulating the vacuum table according to the absorption of the belt feed motor

40 Shore rubber conveyor belt

Automatic table positioner

Entrance and exit roller conveyor

2.2 Kw (3 Hp) inverter for adjusting the belt advancement speed from 3.5 to 20 m/min

TSP 100 electronic control

N° 3 proportional valve for managing the working pressure of the electronic sectioned pad by electronic control

A transformer to run the machine is included in the sale also.

Overall dimensions:

Machine assembled mm 3200 x 2100 x 2300 h

Machine dismantled: mm 2500 x 2000 x 2300 h

Weight 3115 kg
