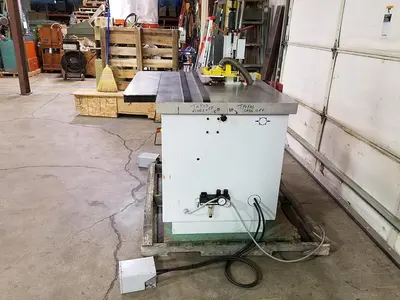

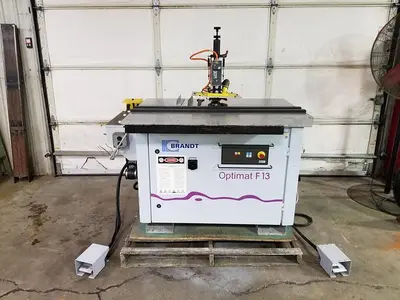

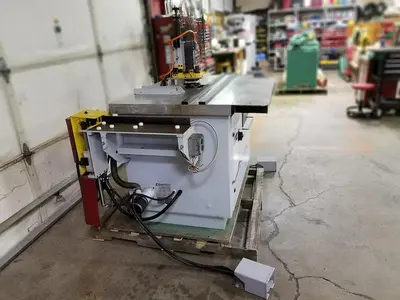

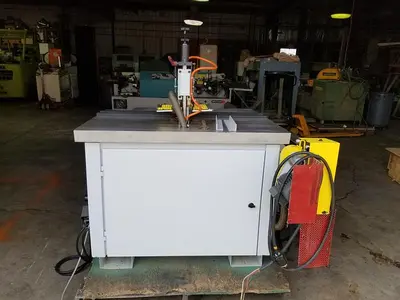

USED BRANDT OPTIMAT F-13 TOP AND BOTTOM TRIMMER

Brandt Optimat F-13 Top and Bottom Trimmer, 2HP, 3PH, 230V, Cleaned, Checked, Needs Comm. Card

Cleaned and checked, has some communications card issues and won't always let motors start, etc. For parts or repair.

Mfg 2002

2HP, 230V, 3Ph

47″ x 31″ cast aluminum main table
26″ x 6 1/2″ side table
(2) .54 hp, 230V, 3 ph cutterhead motors
.5 hp, 230V, 3 ph saw motor
Variable speed cutterhead
Top & bottom radius profiled cutterheads w/ insert cutter knives.
Side mounted trim saw station
Separate foot pedal controls for edge trimming & saw stations
3 mm max edgebanding thickness
70 mm max distance between top & bottom cutterheads
Turn knob height adjustment of top cutterhead.
Estimated dimensions 32″ x 60″ x 48″
