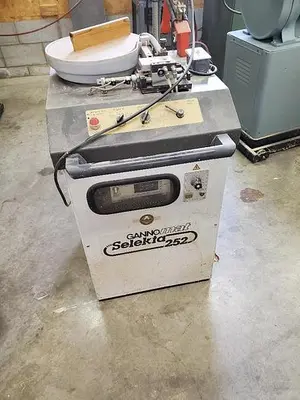

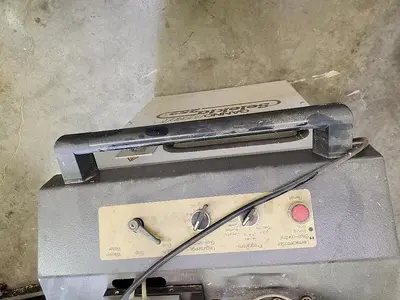

USED 1993 GANNOMAT SELEKTA 252

Gannomat Selekta 252 Dowel Inserter, 7 to 20mm long, 6-12mm Dia., Closed Glue System

As taken from service

Mfg. 1993

110v

Elect./Voltage: 110 V, 60 Cy, 1 Ph

Dimensions: 26″ L  x  26″ W  x  44″ H

Weight: 240 Lbs (estimate)

Dowel sizes from 7 to 20 mm; stays constant for every dowel; dowel sizes 6 to 12 mm and length from 25 to 50 mm possible; dowel feeding by maintenance-free vibrator.

Mechanical system of dowel selection for dowel diameter and dowel length; controlled by electronic limit switches with immediate error indication of incorrect dowel length (+/- 2mm);

Immediate ejection of the defective dowel by pressing the error light button. Fully automatic maintenance-free electronic controller with program selection of cleaning, gluing, and gluing / inserting.

8-position selector switch regulates glue amount by means of an electronically controlled timer; essential for different dowel size and diameter and various glue viscosity.

Closed glue system with conical seated front nozzle; eliminates hardening of the glue in the nozzle and need for routine cleaning of the glue system.

6 bar high-pressure system for glue injection for precise glue stream and clean dowel inserting.

Glue/Water selector switch for rinsing the system; control light indicates low glue in glue pot.

Maintenance-free pistol mechanism uses staple gun technology, repeat gluing/inserting by constant depression of the pistol trigger; revolver magazine of pistol provides constant supply of dowels;

Dowels not inserted to the bottom of the hole but are regulated by the length outside the panel.

No splitting of thin material or glue forced back out of the hole; no panel kick back or clamping the work piece or backstop is necessary; easy changing of machine or gun for use with different dowel diameter by modification kits. Will run dowel diameters of 6 mm, 8 mm, 10 mm, 12 mm dowel lengths: 20 – 50 mm (optional).
