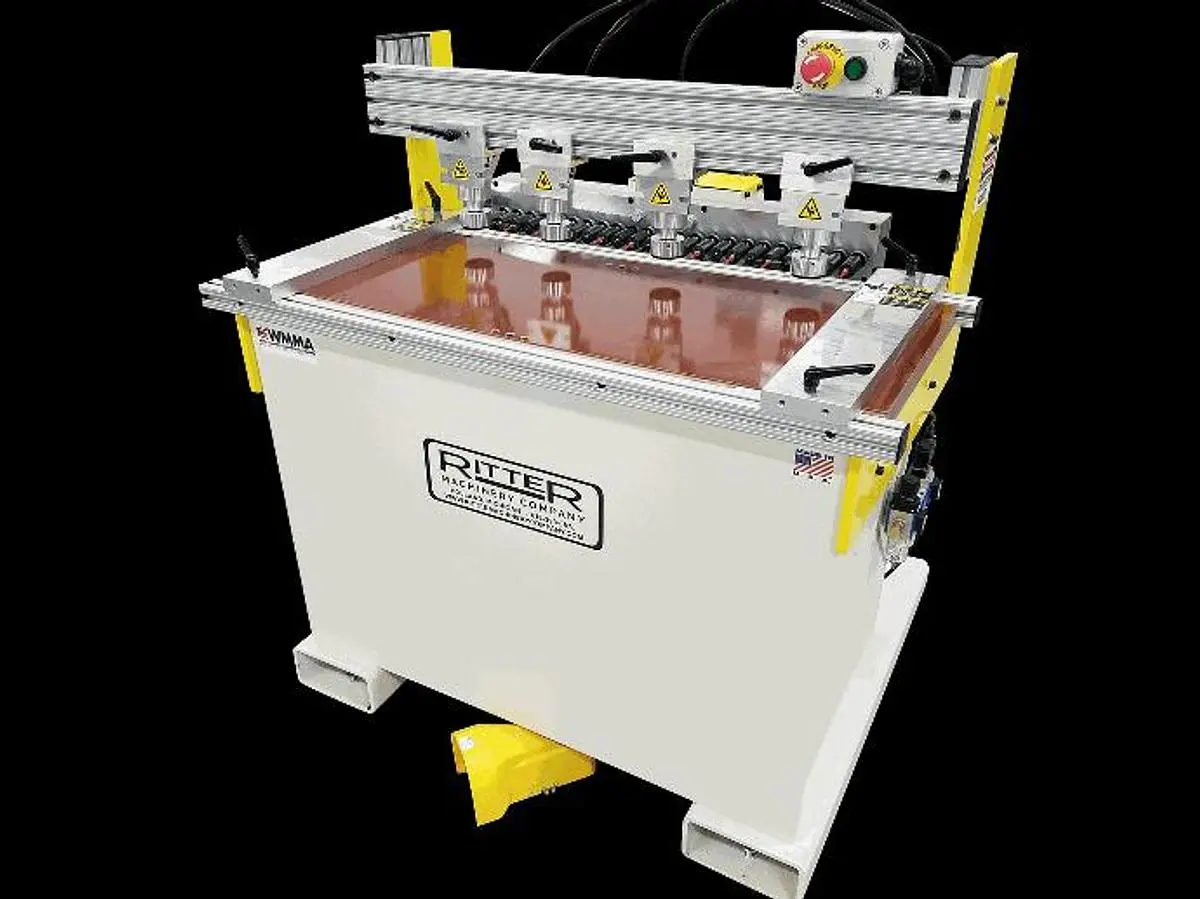

NEW RITTER R823

RITTER R823 - 23 Spindle Horizontal Boring Machine, 3HP, 1PH, 0-2" Boring Depth, 0-3" Workpiece Height

The Ritter R823 is a robust, 23 spindle horizontal borer, designed to be used as a supplemental borer for CNC nested based router and point-to-point borer applications, producing clean and accurate drilling of wood components. The workpiece is held firmly against the table by pneumatic clamps, and there is full adjustability of the index stops, bed height, and depth of cut.

Standard Features:

23-Spindle Gear Driven Drill Head on 32mm Centers
(12) Right Hand, (11) Left Hand
10mm Bored Female Collets With Set Screw Lock
0-2" Adjustable Boring Depth
0-3" Height Adjustment
(2) End Boring Fences
(4) 2.00" Bore Clamping Cylinder
Carriage Adjusting Jack
(1) Emergency Stop Button
Foot Actuated Boring Cycle
Tooling Not Included

Technical Data and Specifications:

Drive Motors: 3 HP, 1 Phase 240V
RPM: 3,450
Spindle Centers: 32mm
Collet Size: 10mm
Maximum Material Thickness: 2.125"
Electrical: 230V, 3Ø, 60Hz, 60A or 460V, 3Ø, 60Hz, 30A
Air: 2 CFM at 80 – 100 PSI
Work height: 33.5″
Footprint: 49″ x 48″
Table Area: 20″ x 42″

Shipping Weight: 1,485 LBS

Shipping Dimensions: 53″ L x 52″ W x 53" H
