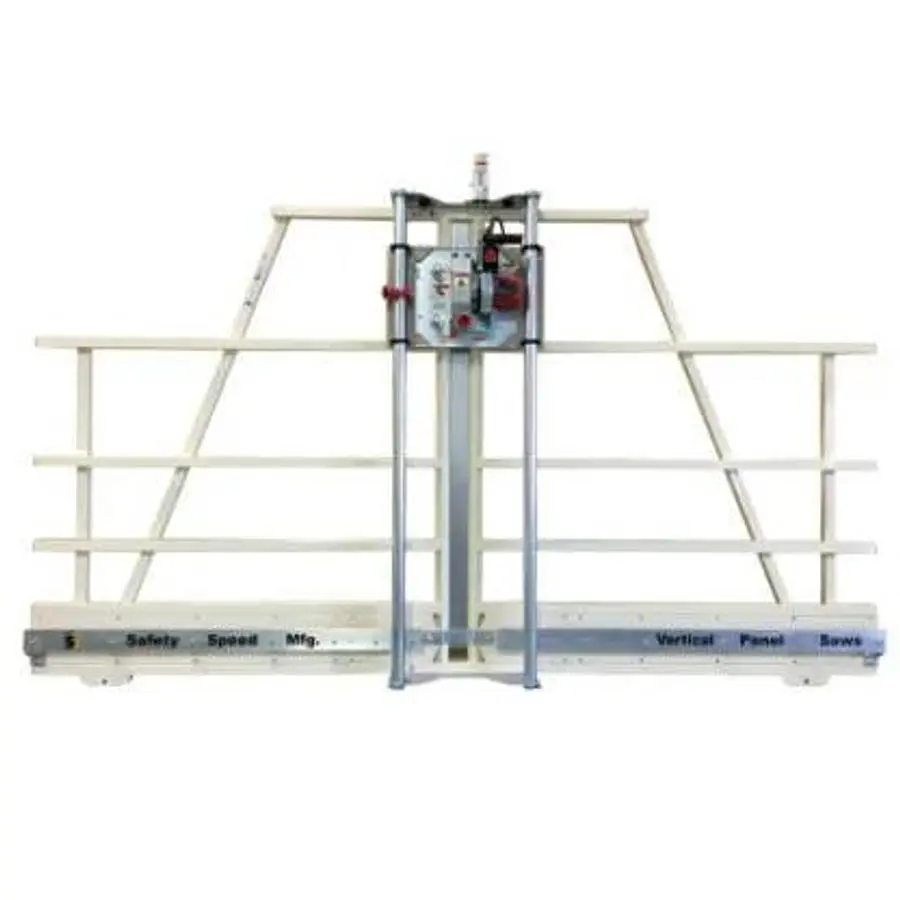

The H4 offers full-sized vertical panel saw productivity in economical machines. H-Series saws are used in all kinds of panel processing applications.
Standard Equipment
3 ¼ Hp, 15 amp industrial duty saw motor.
Zinc plated 1 ¾”steel guide tubes.
4 Nylatron roller bearing systems.
Adjustable vertical and horizontal rulers.
Quick change from vertical to horizontal cutting.
Thin material pressure guard.
Injection-molded plastic material rollers.
Spring loaded counter balance system.
Integrated dust collection bonnet.
Extended warranty.
TUV certified to UL/CSA standards
Additional information
Weight244 lbsDimensions120 x 11 x 70inMax. Crosscut50"/1270mm
Max. Rip CutUnlimited
Cut Depth1 ¾"/45mm
Cut Accuracy1/32"/.8mm
Frame Length120"/3050mm
Daily Usage1-3 Hours
Saw Blade Diameter8"/210mm
Saw Blade Bore5/8"
Rollers14
Motor amps and volts15 amp, 120 Volt, 7.5 amp, 220 Volt
Motor Manufacturer Milwaukee Tool
ModelH4
Country of Origin USA
