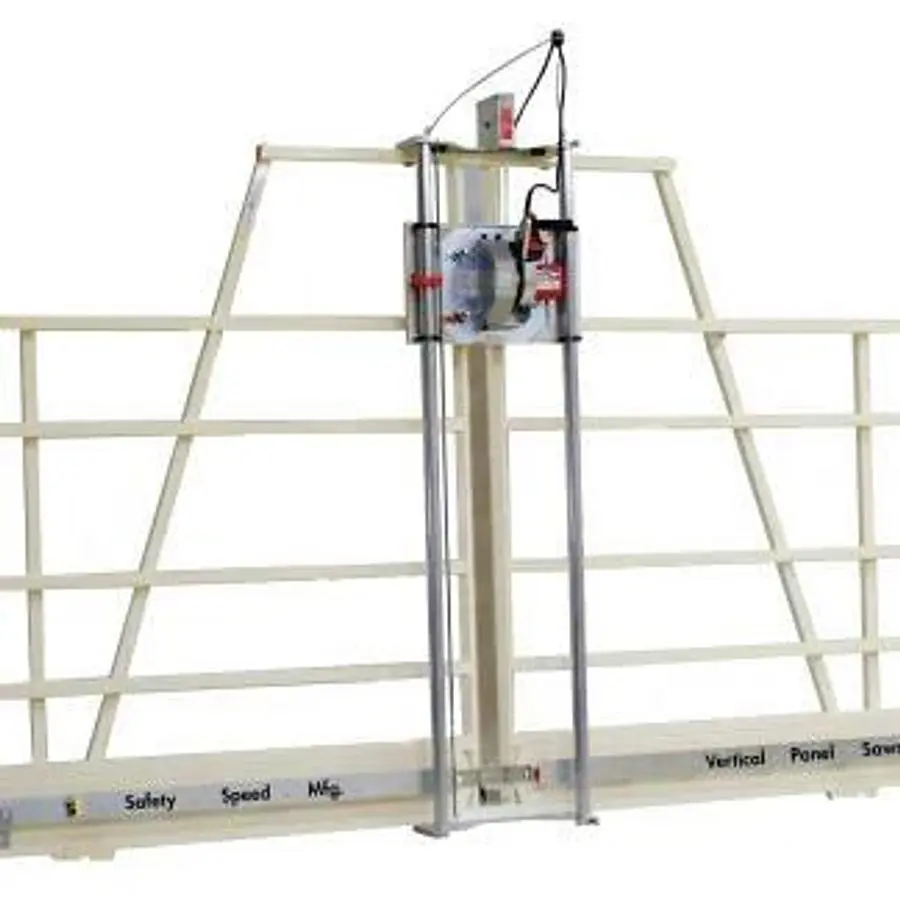

Photos are shown with a stand, and wheels which are optional accessories.
Standard Equipment
Zinc plated 1¾”steel guide tubes.
4 Nylatron roller bearing systems.
Milwaukee Tool Motor
Adjustable vertical and horizontal rulers.
Quick change from vertical to horizontal cutting.
Thin material pressure guard.
Injection-molded plastic material rollers.
Spring loaded counter balance system.
Integrated dust collection bonnet.
Extended warranty.
TUV certified to UL/CSA standards
Weight359 lbsDimensions120 x 11 x 95inMax. Crosscut74"/1850mm
Max. Rip CutUnlimited
Cut Depth1 ¾"/45mm
Cut Accuracy1/32"/.8mm
Frame Length120"/3050mm
Daily Usage1-3 Hours
Rollers14
Saw Blade Diameter8"/210mm
Saw Blade Bore5/8"
Motor Horsepower, Amperage and Volts3.25 HP, 15 amp, 120 Volt, 3.25 HP, 7.5 amp, 220 Volt
Motor Manufacturer Milwaukee Tool
Country of Origin USA
