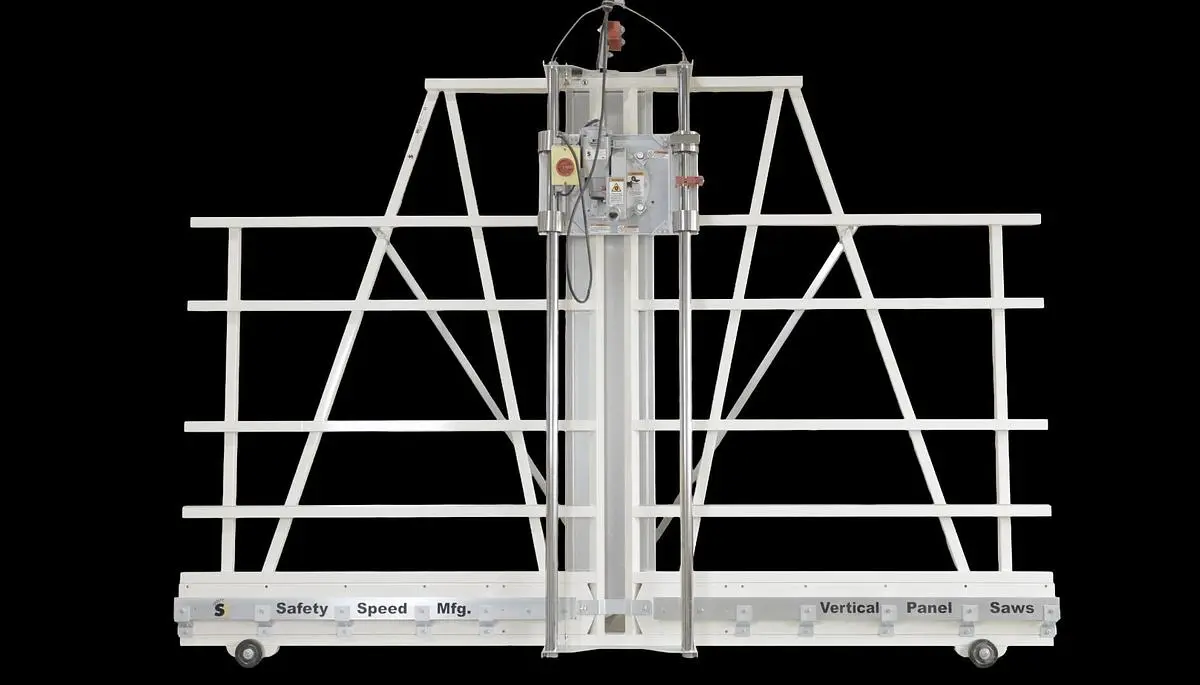

The 6400 provides a 64″ maximum crosscut while the 6800 provides a 74″ maximum crosscut. The maximum ripcut (horizontal) is dependent on pushing the panel through.
Standard Equipment
3 Hp worm driven heavy-duty saw motor.
10 ft. welded steel frame.
Chrome-plated 1 3/4″ guide tubes.
8 Nylatron roller bearing systems.
Adjustable vertical and horizontal rulers.
Quick change from vertical to horizontal cutting.
Thin material pressure guard.
Solid aluminum material rollers.
Enclosed counterweight system.
Integrated dust collection bonnet.
TUV certified to UL/CSA standards.
Weight598 lbsDimensions124 x 17 x 92inMax. Crosscut64"/1625mm
Max. Rip CutUnlimited
Cut Depth1 ¾"/45mm
Cut Accuracy1/64"/.4mm
Frame Length120"/3050mm
Daily Usage3-5 Hours
Rollers14
Saw Blade Diameter8"/210mm
Saw Blade Bore5/8"
Motor13 amp, 120V
Country of OriginUSA
