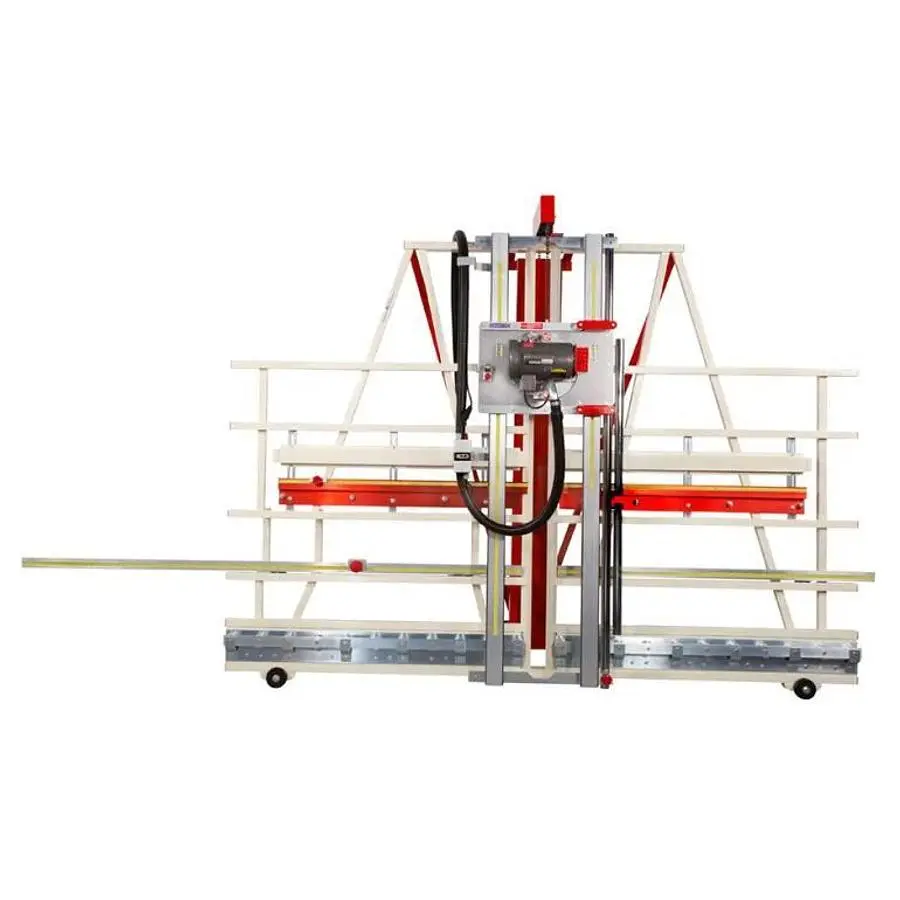

Continuous usage panel processing done the easy way. The 7400M panel saw features a 10′ frame, and the 7400XL features a 13′ frame. There are no other differences between these two machines.
Standard Equipment
Your choice of single or three phase, heavy duty induction saw motor.
Welded steel frame and integrated stand system.
Dual V-track precision guide system.
Adjustable vertical and horizontal rulers
Quick stop gauges (8′ left, 5′ right).
Saw blade. Quick change from vertical to horizontal cutting.
Floating pressure saw foot.
Solid aluminum material rollers.
Enclosed counterweight system.
MID-WAY FENCE™.
Dust collection ready.
Hold down bar.
Wheels.
3 year warranty.
TUV certified to UL/CSA standards
Weight950 lbsDimensions124 x 98 x 48inMax. Crosscut64"/1625mm
Max. Rip Cut Unlimited
Cut Depth2 ⅛"/55mm
Cut Accuracy.005"/.125mm
Frame Length120"/3050mm
Daily Usage Continuous (8+ Hours)
Rollers22
Saw Blade Diameter8"/210mm
Motor2HP, 1~ 230V, 11.5 AMPS, 3HP, 3~ 230V, 7.6 AMPS, 3HP, 3~ 460V, 3.8 AMPS
Saw Blade Revolutions Per Minute3450 RPM
Power supply options Single phase or three phase power at 50/60HZ
Country of Origin USA
