USED AMERICAN SAW MILL MACHINERY CO. UNIPOINT

American Saw Mill Machinery Co. / Monarch Unipoint Radial Arm Saw, 5HP, 3PH, 230V

Cleaned and Checked, video made

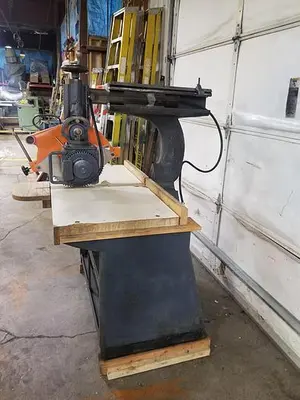

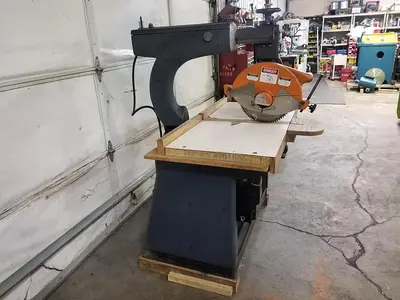

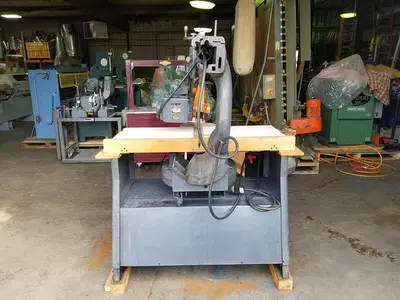

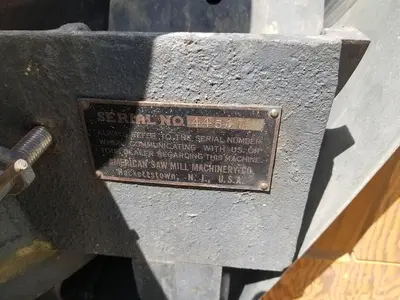

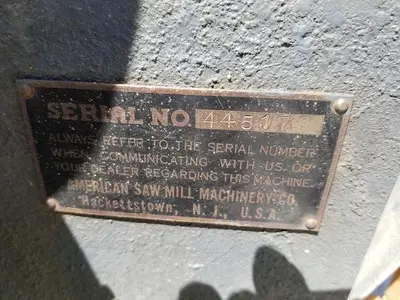

Approx. 1944 Monarch Unipoint Radial Arm Saw with I believe additional US government wartime tagging.

The original designers and manufacturer of the Unipoint Radial Arm Saw that Northfield bought the rights to and still makes today.

Motor Horsepower 5hp

Saw Diameter 16"

Saw Bore 1"

"Dado* Largest Width on Standard Mandrel 1-9/16"

"Dado* Largest Width on 1-3/8" Elongated Mandrel 3"

Maximum Depth of Cut (16" Saw) 4-1/2"

Cross Cut Capacity-Guide Fence Regular Position 17-1/2

Cross Cut Capacity-Guide Fence Rear Position 25

Ripping Capacity-Between Saw and Regular Guide Fence 23-1/2"

Ripping Capacity-with Guide Fence Moved to Rear 31"

Maximum 45 degree Miter:

Guide Fence Regular Position 4" x 12-1/2"

Moved to Rear 4" x 14-1/2"

Maximum 70 degree Miter:

Guide Fence Regular Position 4" x 6"

Moved to Rear 4" x 8-1/2"

Maximum Compound 45 degree Miter 3" x 12-1/2"

Motor Raises to Center of Arbor to Table Top, Max 10"

Motor Lowers, Center of Arbor to Table Top, Min 3-5/8"

Size of Table 25" x 48"

Height of Table 32"

Angle Capacity:

Saw Tilts to Left 45 degrees

Saw Pivot to Right 70 degrees

Saw Pivot to Left 45 degrees

Floor Space, Overall 48" x 60"

Net Weight 800 lbs
