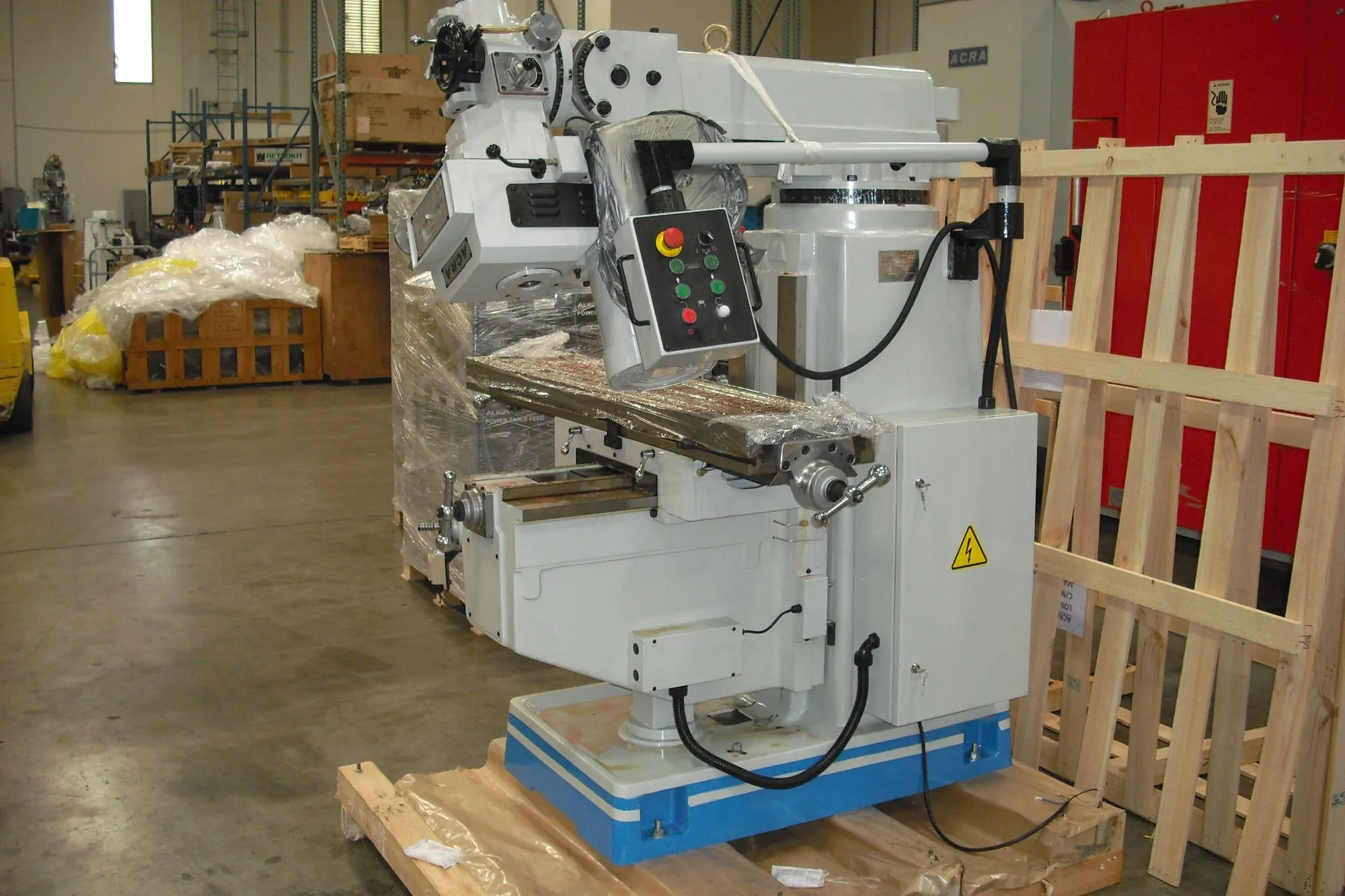

NEW 2025 ACRA AM5V
Overview
ACRA 5V Variable Speed Vertical Knee Mill Model AM5V 12.5" x 58" Table
FEATURES:
Variable Speed Mill
Class 7 Angular Contact Bearings
Certified Meehanite Casting
Build In Power Knee
Auto Lube System
Ram Locking System U.S. Patent #4990039 Utilizing 6 T-Bolts
#40 NST STD. w/ Erickson Thread
Hand Scraped Turret-Column Ways
Square Y & Z Ways
Dust Cover For Knee And Crossfeed Ways
Precision Hardened And Ground Table With Turcite
Double Wall Column
Built-In Coolant Tank In Base
Also:
Hardened & Ground Table & Ways; Double Wall Construction; Coolant System w/ Chip Tray; Quill Heat Treat Hardened & Chromed; Turcite On The X & Y Axis; Z Axis Power Rapid; Electrical Panel
Prices on the Optional Accessories have change due to the tariffs. Requested options will be priced but general 10% higher.
Specs
Table Size: 12.5" x 58"
X, Y, Z Axis Travel: 40" x 15.5"
Quill Diameter 4.125"
Knee Motor: Two HP
Main Motor: 5 HP Spindle
Vertical/Horizontal Spindle: #40 NST
Spindle RPM: 50 - 3,750 RPM
Voltage: 230 AC/1 PH/3 PH or 460 V optional
Dimensions: 85" x 75" x 98"
Specifications:
Table Size: 12-1/2″ x 58″
Longitudinal Table Travel / X-Axis: 40″
Cross Table Travel / Y-Axis: 15-1/2″
Number of T-Slots: 3
T-Slot Size: 5/8″
T-Slot Centers: 2-1/2″
Max. Weight of Workpiece: 1200 lbs
Travel of Knee / Z-Axis: 16″
Overarm Travel: 21″
Drilling Capacity in Cast Iron: OD-1″
Drilling Capacity in Steel: OD-3/4″
Capacity Face Milling: OD-4″ ~ 1/8″ Depth
Capacity End Milling: OD-3/4″ ~ 1/4″ Thickness
Spindle Taper: NT-40
Diameter of Quill: 4-1/8″
Number of Spindle Speeds: Variable
Range of Spindle Speeds: 50-3,750 rpm
Power Down Feed per Revolutions of Spindle: .0015/ .0003/ .0006 inch/rev.
Number of Power Feeds: 3
Spindle Travel: 5″
Head Movement (Left/Right): 90°
Head Tilt (Forward/Back): 45°
Distance Spindle to Table: 3″ – 22″
Max. Distance Spindle to Column: 25-3/8″
Min. Distance Spindle to Column: 5″
Collet Capacity: 1/8″- 7/8″
Horse Power for Main Motor: 5HP
Horse Power for Knee Motor: 2HP
Voltage: 230/460V ~ 3PH
Equipped With
Auto Oil Lubrication
Turcite B on X and Y axis
Rapid Knee Traverse
AC Frequency Control Panel
External Coolant Tank
Forward/Reverse Switch
Yaskawa Inverter 5AC
Halogen Work Light
Coolant System Chip Tray
• Turcite-B on X/Y axis.
• One-Shot Lubrication & Central Lubrication.
• Cast Iron Column for Heavy Duty.
• 2 HP AC Motor for Z-Axis up/down movement.
• Auto Oil Lubrication System w/Alarm Function for empty Oil & timer for Auto Oiler.
• Class 7 Angular Contact Bearing for the Quill.
• Level and Bolts.
• External Coolant system w/ Chip Tray
• Automatically lubrication system.
• Hand tools & box.
• Operator Manual & Parts list.
• Complete Electrical Cabinet.
• Built-in Coolant Tank.
• Halogen Worklight.
OPTIONAL ACCESSORIES:
6" Vise (China) W/Swivel............................................................................................................. $ 250.00
6" Vise (Taiwan) W/Swivel .......................................................................................................... $ 600/800
R-8 Collet Set 12 PC (China) -AM2/AM5 .................................................................................... $ 100.00
R-8 Collet Set (Taiwan) - AM2/AM5 ............................................................................................ $ 125.00
Clamping Kit 53 PC (China) ......................................................................................................... $ 100.00
Clamping Kit 53 PC (Taiwan) ....................................................................................................... $ 125.00
6" Rotary Table H/V ...................................................................................................................... $ 450.00
8" Rotary Table H/V ...................................................................................................................... $ 600.00
10" Rotary Table H/V .................................................................................................................... $ 750.00
12" Rotary Table H/V .................................................................................................................... $ 900.00
4" Riser Block – LCM-50 ............................................................................................................... $ 700.00
6" Riser Block – LCM-50 ............................................................................................................... $ 750.00
4” Riser Block LCTM 1,2,3 ............................................................................................................. $ 750.00
6” Riser Block LCTM 1,2,3 ............................................................................................................. $ 850.00
4" Riser Block – AM2, AM5 ... ... .................................................................................................... $ 700.00
6" Riser Block – AM2, AM5 ........................................................................................................... $ 750.00
8" Riser Block – AM2, AM5 ............................................................................................................ $ 850.00
Maxi-Torque Power Draw Bar R-8 / #30, 40 Taper (USA) ............................................................ $ 750.00
Right Angle Milling Attachment R-8 / #30 Taper ......................................................................... $ 1,100.00
Right Angle Milling Attachment #40 Taper .................................................................................. $ 1,450.00
Right Angle Head R8 ...................................................................................................................... $ 750.00
Right Angle Head R30 .................................................................................................................... $ 750.00
Right Angle Head #40 .................................................................................................................... $ 900.00
Coolant System / Chip Tray ........................................................................................................... $ 850.00
Safety Handle.................................................................................................................................. $ 90.00
Quick Change Tool Set (17PC) - AM2............................................................................................ $ 350.00
Quick Change Tool Set (17PC) - AM5 ............................................................................................ $ 400.00
Auto Lube Exchange ........................................................................................................................$ 300.00
Auto Lube .........................................................................................................................................$ 400.00
ACRA LC Series Variable speed (R8 or #30NST) ...........................................................................$ 5,000.00
ACRA Mill Head 2 H.P. 16 Speed Step Pulley (2 Speed) (R8 or #30NST) .....................................$ 3,500.00
ACRA Mill Head 3 H.P. Variable Speed (R8 or #30NST) ................................................................ $ 4,500.00
ACRA Mill Head 3 H.P. AC Inverter Drive (R8 or #NST30) .............................................................$ 5,500.00
NST #30 Spindle Instead of R-8 Spindle (LCM/LCTM1)................................................................ $ 250.00
Baldor Motor..................................................................................................................................... $ 750.00
OPTIONAL ACCESSORIES:
Acu-Rite 2-Axis 203...……………………………………………………………………………... $2,400.00
Acu-Rite 2-Axis 303...……………………………………………………………………………... $2,900.00
Newall 2-Axis D.R.O. DP700………………………………………………………………………$2,000.00
Newall 2-Axis D.R.O. NMS300……………………………………………………………………$1,200.00
Sony 2-Axis D.R.O. MILLMAN…………………………………………………………………… $ P.O.R.
Mitutoyo 2-Axis D.R.O KA-200……………………………………………………………………$ P.O.R.
Installation For 2-Axis D.R.O………………………………………………………………………$250.00
Acu-Rite 3-Axis 203...……………………………………………………………………………. $3,200.00
Acu-Rite 3-Axis 303...……………………………………………………………………………. $3,600.00
Accu-rite CNC MILLPWR G2 2 axis $33,750.00
Accu-rite CNC MILLPWR G2 3 axis $39,250.00
Newall 3-Axis D.R.O. DP700………………………………………………………………………$2,700.00
Newall 3-Axis D.R.O. NMS300………………………………………………………………… $1,600.00
Sony 3-Axis D.R.O. MILLMAN……………………………………………………………………$P.O.R.
Mitutoyo 3-Axis D.R.O KA-200………………………………………………………………… $P.O.R.
Installation For 3-Axis D.R.O……………………………………….……………………………$300.00
Power Feed X Axis Align……………………………………………………………………………… $450.00
Power Feed Y Axis Align……………………………………………………………………………… $550.00
Power Feed Z Axis Align……………………………………………………………………………… $550.00
Power Feed X Axis 140 Servo (USA)………………………………………………………………$P.O.R.
Power Feed Y Axis 140 Servo (USA)………………………………………………………………$P.O.R.
Power Feed X Axis 150 Servo (USA)………………………………………………………………$P.O.R.
Power Feed Y Axis 150 Servo (USA)………………………………………………………………$P.O.R.
Power Feed Z Axis (140 Only) Servo (USA)……………………………………......………$P.O.R.
Power Feed Installation X Axis………………………………………………………………………$50.00
Power Feed Installation Y Axis………………………………………………………………………$100.00
Power Feed Installation Z Axis………………………………………………………………………$100.00
