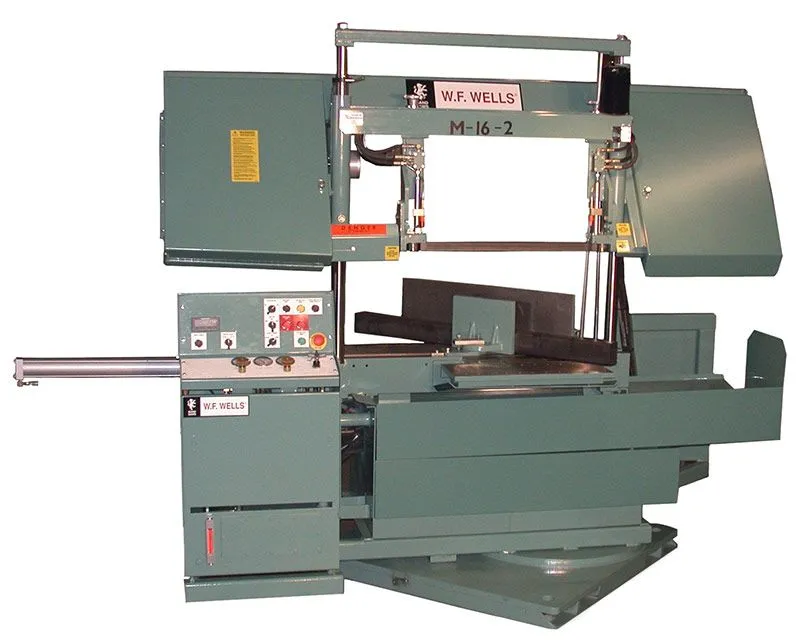

W.F. Wells Model M-16-2 Twin Post, Horizontal Miter Band Saw, 16"H x 26"W Capacity
The M-16-2 series features hydraulic swivel base, automatic preset hydraulic blade tension, a hydraulic miter vise with variable clamping pressure and increased sawing pressure for severe applications. These features provide easier and more productive operator control. Twin post design allows for more accurate cutting, notching, and easier cut entry on all tubing due to compound angles introduced by scissor type saw design.
| Rect-Cap (H) | 16" | 406.4 mm |
| Rect-Cap (W) | 26" | 660.4 mm |
| Rounds-Cap | 16" | 406.4 mm |
| Square-Cap | 16" | 406.4 mm |
| Power | 7.5 hp | 5.6 kW |
| Type (Auto, Manual, Semi) | Semi | Semi |
| Blade Width | 1.25" | 31.75 mm |
| Blade Thickness | 0.042" | 1.0668 mm |
| Blade Length | 200" | 5,080 mm |
| Dimensions | 120"L x 60"W x 90"H | 120"L x 60"W x 90"H |
| Weight | 3,800lbs | 3,800lbs |
Capacity: 16″ H X 26″ W @ 90°,
16″ H X 16″ W @ -45°
Weight Capacity: 5,000 lbs
Blade Speed: 60-500 SFPM
Blade Size: 1¼” X .042″ X 16′ 8″
Blade Guide: Rollers and Carbide Side Blocks
Blade Tension: Hydraulic
Bandwheel Size: 20″
Vise: Hydraulic
Blade Drive: 7½ HP, AC Vector Drive
Sawing Force: 0-750 lbs
Coolant Capacity: 15 Gallons
Hydraulic Capacity: 20 Gallons
Hydraulic Drive: 2 HP Motor
Work Height: 35″
Hydraulic Swivel Base with Miter Vise,
Single Direction. Digital Angle Display
In Feed Roller, Back of Saw Bed
Electronic Door Interlocks
Shipping Weight: 3,800 Shipping Dimensions….120”L x 60”W x 90”H
Electrics: Wired to NFPA 79 Machine Tool Standards
Standard Equipment:
1.25" Bimetal blade
Hydraulic swivel base, single direction
Carbide guides with roller backups
Hydraulic miter vise with variable pressure
Hydraulically controlled blade tension
Operator manual and parts list
Semi-automatic operation
Built-in coolant system
Blade powered rotary cleaning brush
TEFC Motors
Fused disconnect with lockout
NFPA-79 electronics
Automatic end-of-cut shut off
Quick and easy blade speed change
Feed pressure monitor/regular
All safety guards
Digital angle display
In feed roller, back of saw bed
Electronic door interlocks
OPTIONAL FACTORY INSTALLED ACCESSORIES
Description Order Number Price
Hydraulic Holddown, Saw Vise 0056038-M $3,250.00
Hydraulic Chip Conveyor, Auger Style 0056036 $5,475.00
Free Standing Outboard Vise $11,500.00
Laser Shadow Line 0052220 $3,050.00
Blade Break/Stall Switch 0056040 $675.00
Mist Coolant 0010774 $3,050.00
Non-Powered Conveyor 21" X 5' 0050252 $1,850.00
Non-Powered Conveyor 21" X 10' 0050251 $2,875.00
Electric Powered Conveyor 24” x 10’ 0010749 $11,875.00
Other Conveyor Options Available Upon Request – Please Contact Factory
