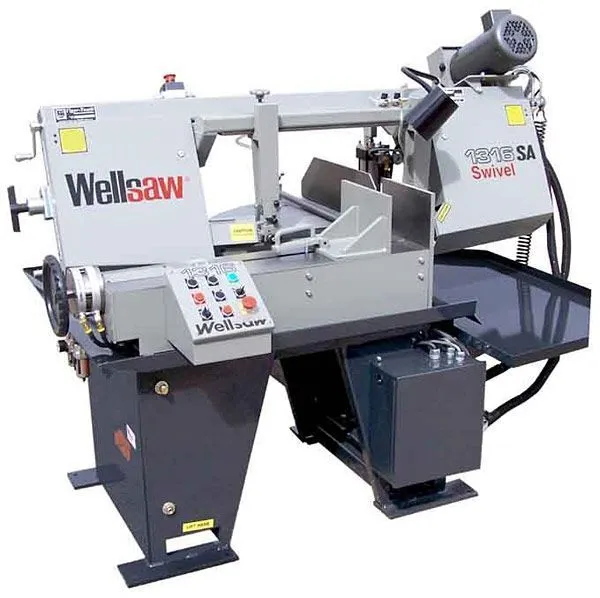

NEW 2026 WELLSAW 1316S-SA-EXT

Wellsaw Swivel Head Miter Band Saw w/ Semi Auto Operation Model 1316S-SA-EXT Cap.13" x 18"
Semi-Automatic Operation
The PLC controller is factory programed and manages the raise and lower functions of the saw head, and the open and close functions of the vise jaw in a programmed sequence. In high volume operations this increases productivity and reduces operator fatigue and error.
Full Cycle Operation:
- At the end of the cut the saw head rises to a pre-selected level
- The vise opens
- The operator advances the stock and presses the “Automatic” button
- The vise closes and the saw head approaches and makes the next cut

Specifications:
Capacity: Round Rectangular
@ 0° (90°) 13" 13"H x 18"W
@45° 13" 13"H x 18"W
@60° 13" 13"H x 14.5"W
Blade Size 1" x .035" x 15'- 6" (186")
Blade Speeds Infinitely Variable 70 - 375 SFPM
Blade Guides Carbide Guides, Zero Clearance, with Rollers
Blade Tension Manual Rite-Tension®
Electrical Options 115-208-230/60/1
208-230-460/60/3
Coolant System Tank Capacity 8 gallons
Submersible Pump 115V/0.6 Amp/ 3 gpm
Hydraulic System Air over Oil / 2 gls
Feed Rate Control Variable Hydraulic w/ positive pressure
Vise Control Pneumatic with Quick position and
qUICK aCTINGManual Screw adjustment
Sawing Force Gravity with Adjustable Counterbalance Spring
Band Wheels 15" Diameter Cast Iron
Discharge Table 23”
Stock Stop Projection 25”
Bed Height 35"
Floor Area 110"W x 89"L (including infeed conveyor)
Shipping Weight 1,900 lbs.

Features:
PLC Controlled, Full Cycle Semi-Automatic
Variable Hydraulic Feed Rate Control
Spring loaded, zero Clearance Carbide Guides with Rollers
Worklight with transformer
5 ft x 18 inch infeed roller material conveyor
Double reduction Gearbox w/ Perimeter Drive
Baldor® Motor /
3 HP / 3 Phase TEFC Infinitely Variable Blade Speeds
Quick Adjust Sawing Force
Rite-Tension® Blade Tensioning Device
Wet Cutting System, Flood Type
Powered Blade Brush
110 Volts at Controls
Overload and Undervoltage Protection
Precision Ground Vise Jaws
Quick Positioning Vise
Adjustable Stock Stop
Auto Shut-Off at End of Cut
OSHA Blade Guarding
Tiger-Tooth® Bi-Metal Blade
Coolant for Initial Start-Up

Options for consideration:
For installation at time of manufacture.
DESCRIPTION PART NO. PRICE
Flush Hose Kit DL 1316S-SA-EXT-905 $320.00
Blade Break/Stall Switch DL 1316S-SA-EXT-807 $747.00
VFD Variable Blade Speed (frequency drive) DL 1316S-SA-EXT-915 $3,559.00
Laser Line Pointer DL 1316S-SA-EXT-888 $794.00
Micro Lubricant System (“Near Dry” system) DL 1316S-SA-EXT-902 $1,086.00
Oil for MQL system, 1 gallon 100318-028 $71.00
50 Hz or 575 Voltage Contact Factory
Spare Parts Kit npn $757.00

Mounting Options
Casters - Set of four (2 locking) 100113-003 $258.00
OR
Leveling/Vibration mounts, set of four 098041-004 $91.00

Disconnect Options
Fused Disconnect Lever Type / NEMA 1 enclosure
DL 1316S-SA-EXT-913 $893.00
OR
Fused Disconnect Rotary Type / NEMA 12 Enclosure
DL 1316S-SA-EXT-732 $861.00

Material Handling
Overhead Bundle Clamp, pneumatic DL 1316S-910 $1,983.00
Gravity Roller Conveyors,
5ft x 18” 098050-013 $855.00
10ft x 18” 098050-014 $1,429.00
Mid-Duty Stock Stand, single roller
250 lb. capacity, 18" wide 098047-001 $ 290.00
Heavy Duty Stock Stand, single roller
6" wide 1000# capacity, pn M-325BM
(use pn 325H if saw if saw is equipped with casters or vibration mounts) $586.00
12” wide 1000# capacity M-326BM
(use pn 326H if saw is equipped with casters or vibration mounts) $624.00
