Max capacity: (25 ton psi - soft metals) (38 ton psi - stainless), 30°
V groove 13/32" depth, 37.5" V groove max 3/8" depth, 45° V groove max 5/16"
depth, Cutting speed 11 fpm, Adjustable hold down attachment, Manual roller bearing feed system,

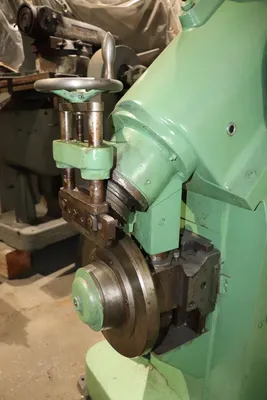

Support roller w/ back stop & guide rollers, Adjustable collet to lower/raise support rollers,

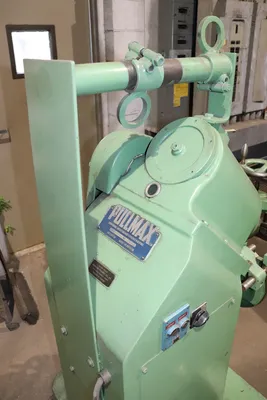

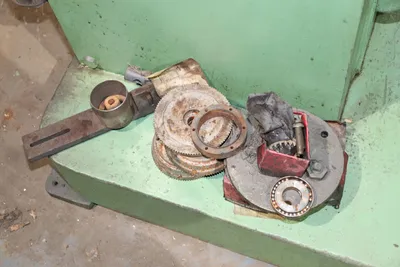

Custom Mfg. lift bracket on top of machine, Tooling: Est. 3 new type A cutters & extra new feed
roller bearings & appears to have type B cutter on machine, Takes 4 different type cutters,
Drive motor 2hp, Overall Dim. 3' 3"L x 2' 10"W x 5' 5"H, Est. Wt. 800 lbs.
