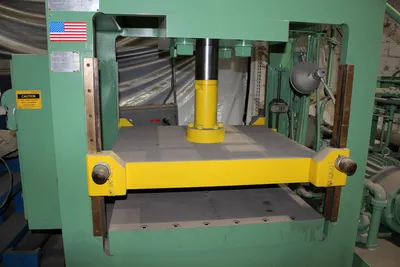

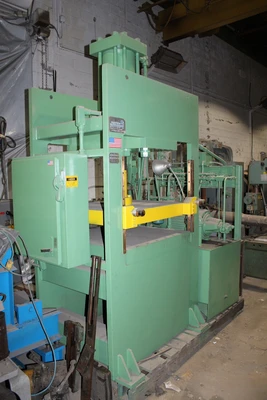

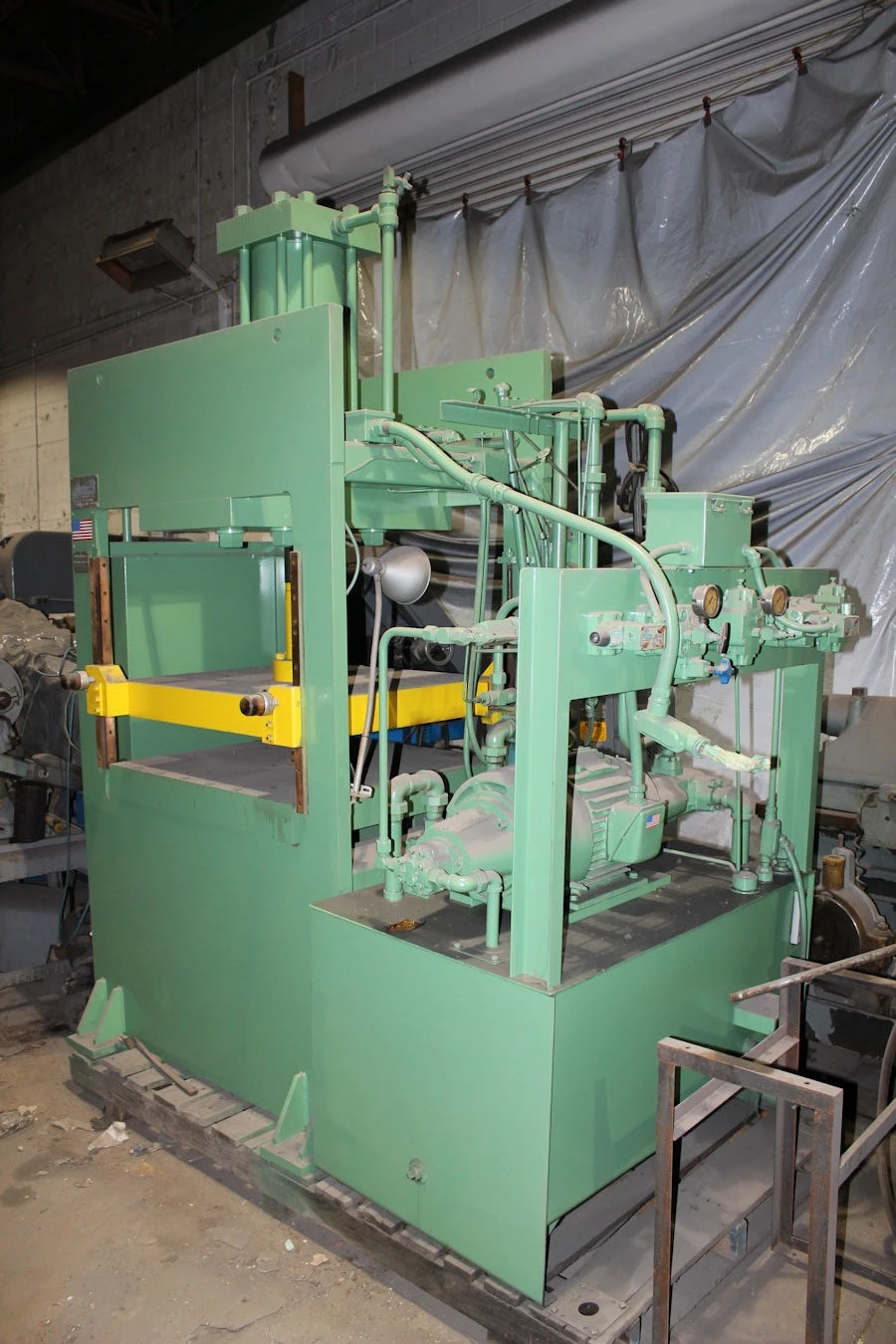

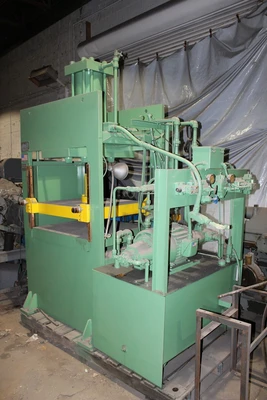

Machine Technologies 100 Ton Hydraulic Down Acting

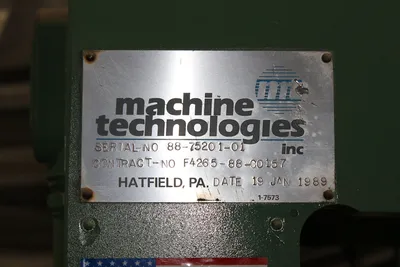

Date Mfg. 1/19/89, 100 Ton capacity, 36" x 36" Die area, 4.5" Dia. top center hydraulic

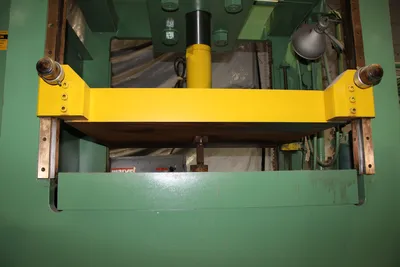

cylinder, 18" Est. stroke, 12" Shut height, Top platen 36"W x 32"FB x 4.25"H, Bottom platen

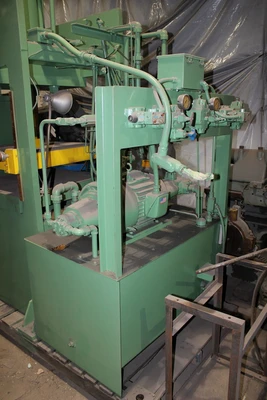

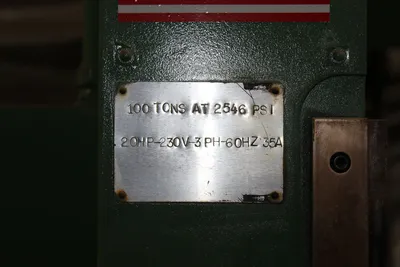

36"W x 35"FB x 4.25"H, 100 Gal. Hydraulic tank, 20hp 220/440v 3ph, Overall Dim. 8'L x 4' 8"FB x
9' 9"H (on 7"H pallet), Est. Wt. 7,500 lbs.
