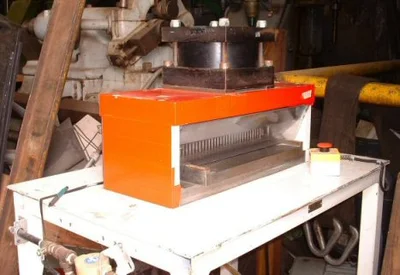

Custom 3 Ton Air Press

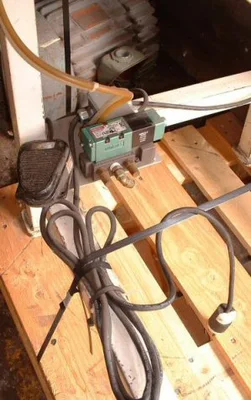

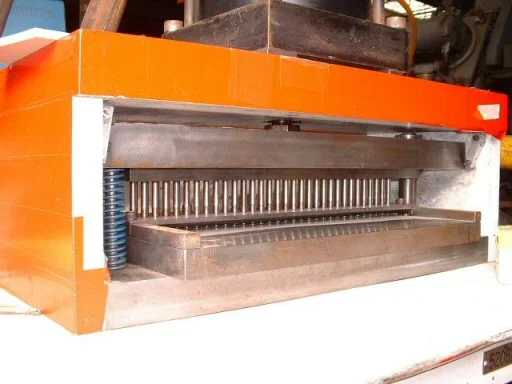

With inline Punch setup, With foot switch and hand button controls, Air valve, Machine has 64 - 1/4" punches
staggered in two lines with total length of 16" witch can be removed to put different die in machine,
Machine was used to punch plastic film, Max daylight in die area is 3.75" with die out, Max width between post
is 18", Ram is guided, Piston size is 8", Approx. max stroke is 2", Mounted on 15" x 37" x
34"H steel table
