NEW 2025 WELLSAW V20-24
Overview

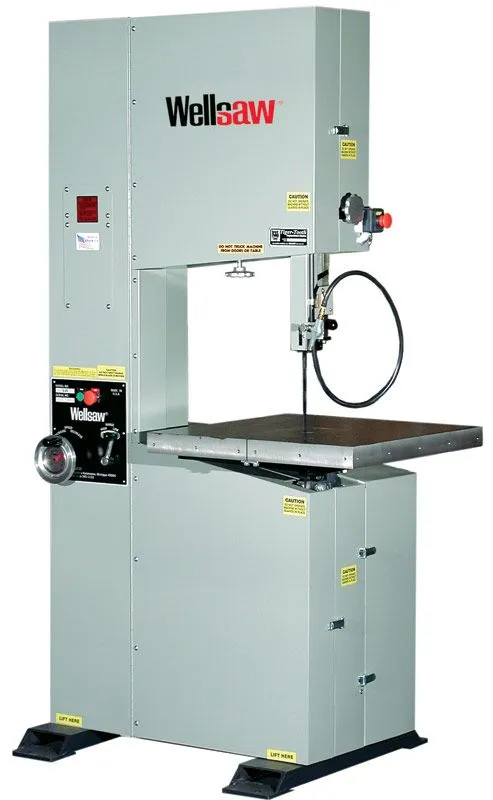

Wellsaw V20F-24 Vertical Bandsaw 20" throat x 24" high, Saw in stock
Dependable vertical sawing with extra capacity. For tool room, foundry work, and contour sawing. Your best choice.
20″ throat with 16″ under the guide (24″ for the V-20 Extended version)
VFD motor drive for variable blade speed
Innovative final drive for long life
Oil bath two speed gearbox
All powder coated sheetmetal
Specs
Specifications V-20-24
Capacity 20" Deep
Throat 16" High
Table to Guide 24" High
Blade Size
Standard 3/16" through 3/4"
Optional 1/2" through 1"
(This Option Not Available on V-20-24)
Blade Length 14'9" (177")
V-20-24 16'1" (193")
Band Wheels 21" Cast Aluminum
with Replacable Rubber Tires
Blade Speeds
Low Range 45-400 SFPM
High Range 325-3000 SFPM
Blade Guides Sealed Ball Bearings
with 90° Rotation Feature
Table Size 26" x 26" Cast Iron
Tilt 5° Inside and 45° Outside
Height 37-1/2"
Drive Motor 3hp 208/230/460 Volt
Three Phase
Single Phase 2hp 115/208/230 Volt
Floor Area 32" Wide x 48" Deep
Height Standard 83-1/2"
V-20-24 91-1/2"
Shipping Wt. 950 lbs
V-20-24 1,050 lbs
Equipped With
Standard Features
Heavy Tube Steel Frame
Precision Ground Cast Iron Table with Replaceable Throat Plate
Unique Heavy Duty Roller Guides
Rotate 90° to Accommodate Long Materials
Baldor® Motor
Magnetic Starter with Undervoltage and Overload Protection
115 Volts at Controls
Two Speed Cast Iron Gearbox with Helical Gears and Oil Bath
Lubrication for Quiet Operation
Blade Speed Indicator
Blade Tension Indicator
Flexible Arm Worklight
Chip Blower (Shop Air)
Removable Chip Tray
Tiger-Tooth® Bi-Metal Blade
OSHA Blade Guarding
Rotary Blade Brush
Factory Installed Options Available
Ideal Blade Welder, Grinder and Shear
24" Extended Height (Model V20-24)
Miter Gauge
Rip Fence, 26"
1" blade (not available on V-20-24)
Spray Mist Coolant System
Vacuum Nozzle
Extension Tables
Stock Stand
5 ft. and 10 ft. Non-Powered Roller Conveyor
NFPA Electrics (w/ fused disconnect)
Consult Factory for Additional Options
Prices subject to change without notice.
