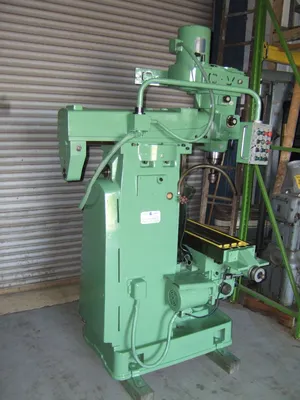

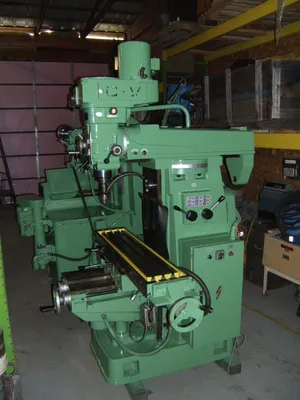

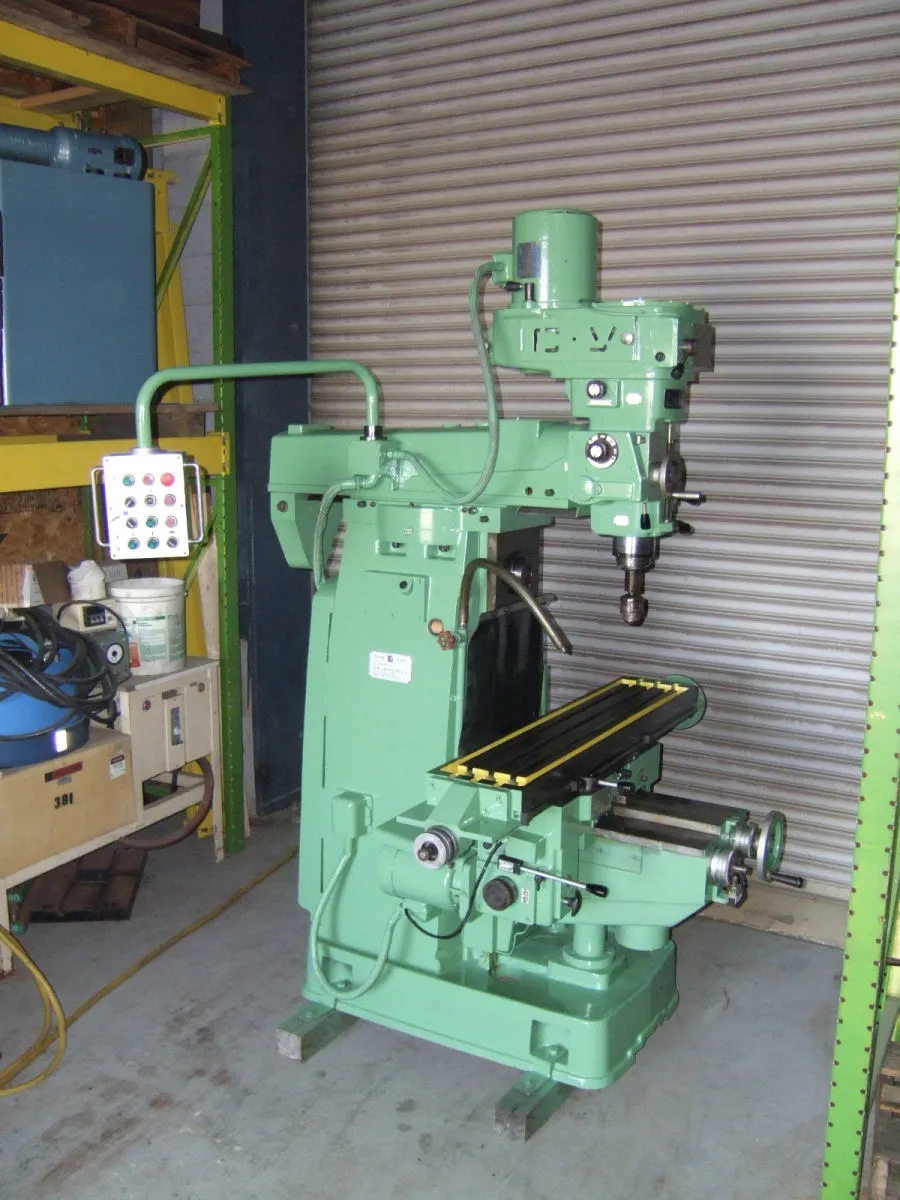

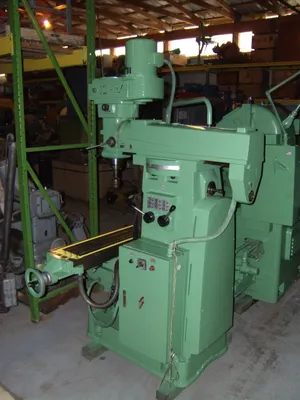

USED LUX CY-GH-260

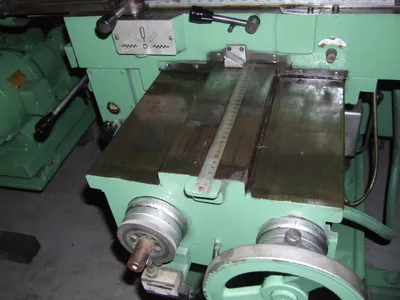

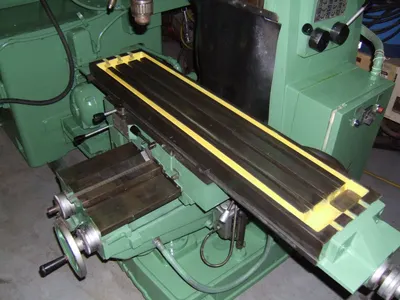

10" x 47" Table, Power cross feed on table, Power knee,

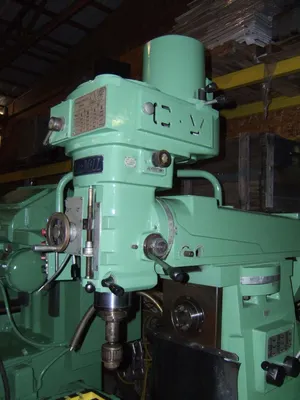

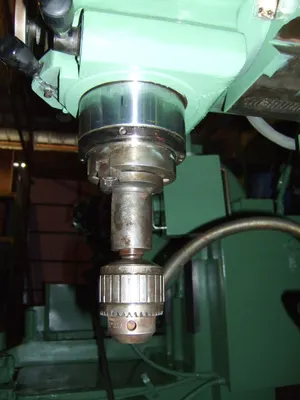

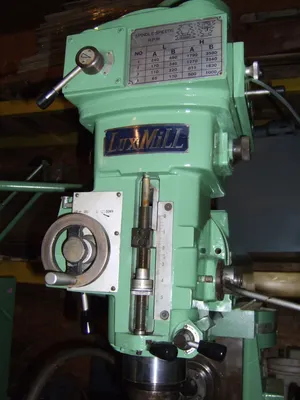

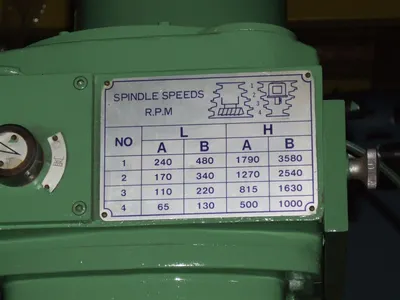

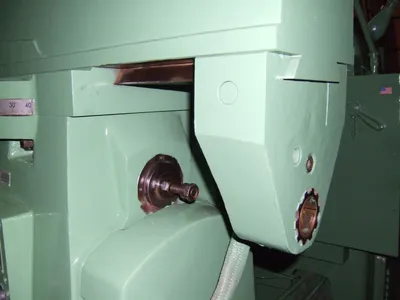

No. 40 Vert./Horiz. spindle with draw bars, 16 Vertical spindle speeds from 65 to 3,580 rpm, Heavy duty 4.5"

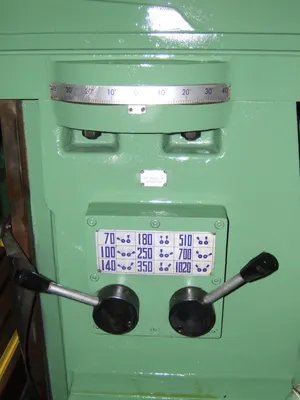

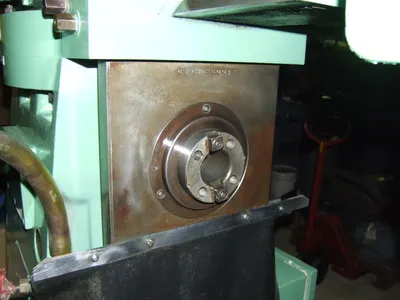

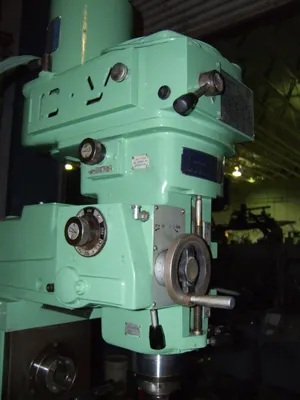

chromed spindle, Vertical head swivels 45° L/R, 9 Horizontal spindle speeds from 70 to 1,020 rpm,
Hand dial in power down feed from 0 to 95 & hand dial in feed ranges .003 .006 .0015, Vertical drive motor 3hp 220v 3ph,
Horizontal drive motor 5hp 220v 3ph, Overall Dim. 5' 3"FB x 5' 7"W x 7' 9"H
(on 3.5" wood blocks), Est. Wt. 3,500 lbs., Cleaned & painted
