Two available!
10,000 rpm, 20 HP, 24 place side mounted ATC, Macros, Quick Code Programming, 4th axis drive installed, Rigid tap, Chip auger.
All new 2000
Ran exclusively aluminum parts
| X | 50" | 1,270 mm |
| Y | 20" | 508 mm |
| Z | 25" | 635 mm |
| Power | 20 hp | 14.9 kW |
| RPM | 10,000 RPM | 10,000 RPM |
| # ATC | 24 | 24 |
| Taper | Cat 40 | Cat 40 |
| Table-W | 18" | 457.2 mm |
| Table-L | 50" | 1,270 mm |
| # Axis | 4 | 4 |
| Control | CNC (Haas) | CNC (Haas) |
| Dimensions | 139" x 110" x 118" | 139" x 110" x 118" |
| Weight | 13,000 | 13,000 |

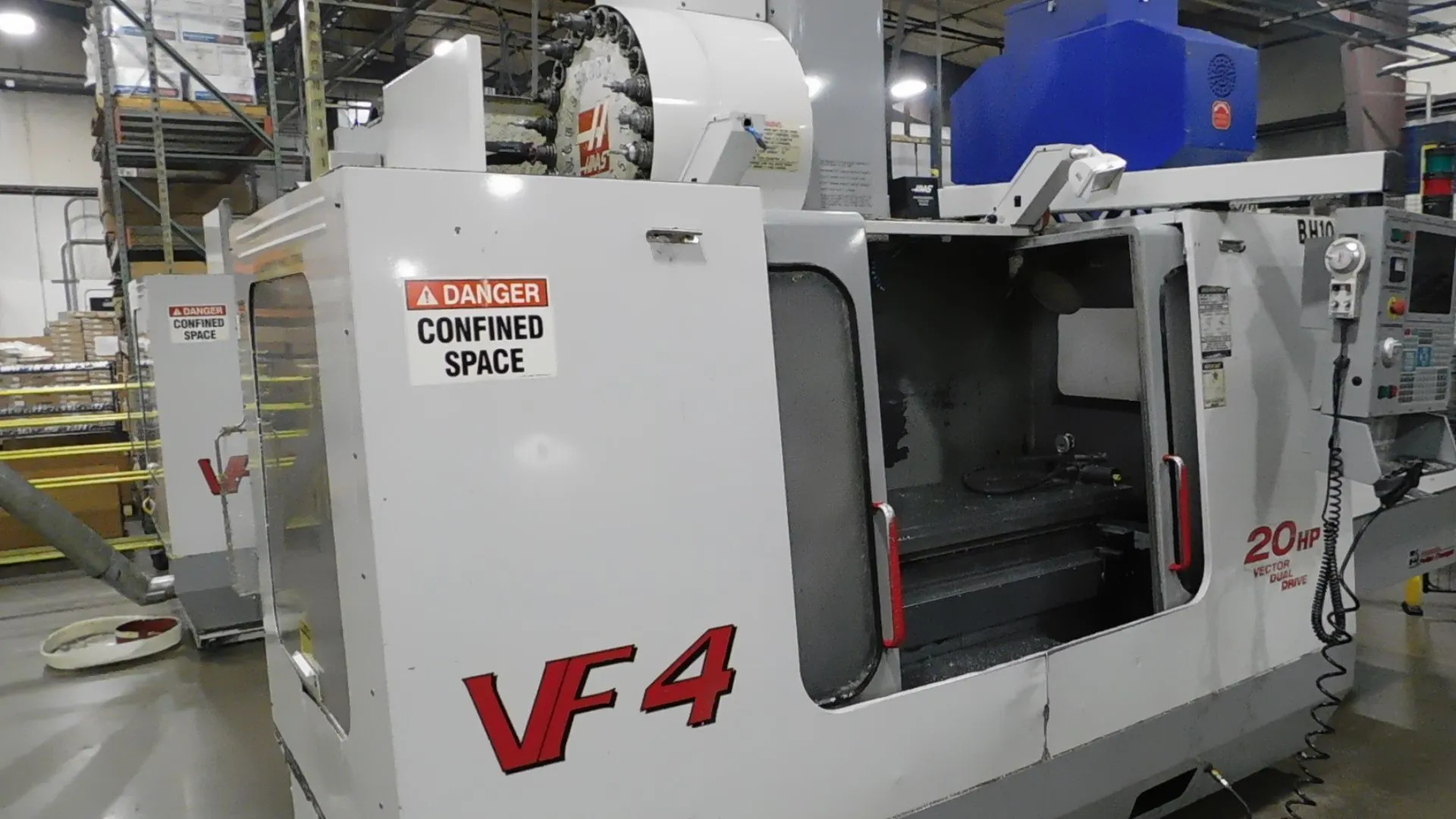

Two USED HAAS VMC’S
Model: VF-4 APC
Pallet size: 40” x 19”
Travels: 50” x 20” x 25”
Spindle speeds: 10,000 rpm
Spindle HP: 20
Spindle taper: Cat 40
Spindle nose to table: 29” to 4”
Max. Feed speeds: 650 ipm
Max. Rapid travels: 1,000 ipm
Side mounted ATC capacity: 24 place
Tool change time: Cut to cut – 4.2 sec.
Max. tool weight: 12 lbs.
Max. tool diameter with empty pockets: 3.5”
Dimensions: 123” wide x 110” deep x 118” high operating height x 12,000 lbs. (add 16” to the width for the chip auger)
Wired: 220v/3ph/60 cy
EQUIPPED WITH:
Programmable coolant nozzle
Chip auger
Rigid tap
High Intensity lighting
Machines have a Haas Dual pallet changer with 2) 40” x 19” pallets each and 48” x 18 7/8” sub plates mounted to each pallet.
Pallet changer dimensions: 62” x 51”
Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.
Machine #1: Equipped with a Haas Dual pallet changer, SN: 22467, new 2000
Machine #2: Equipped with a Haas Dual pallet changer, SN: 22470, new 2000
Video link: https://youtu.be/YRmd80LhW40
F.O.B. - Lake Zurich, IL
Haas Dual Pallet changers
24 place Side mounted tool changer
