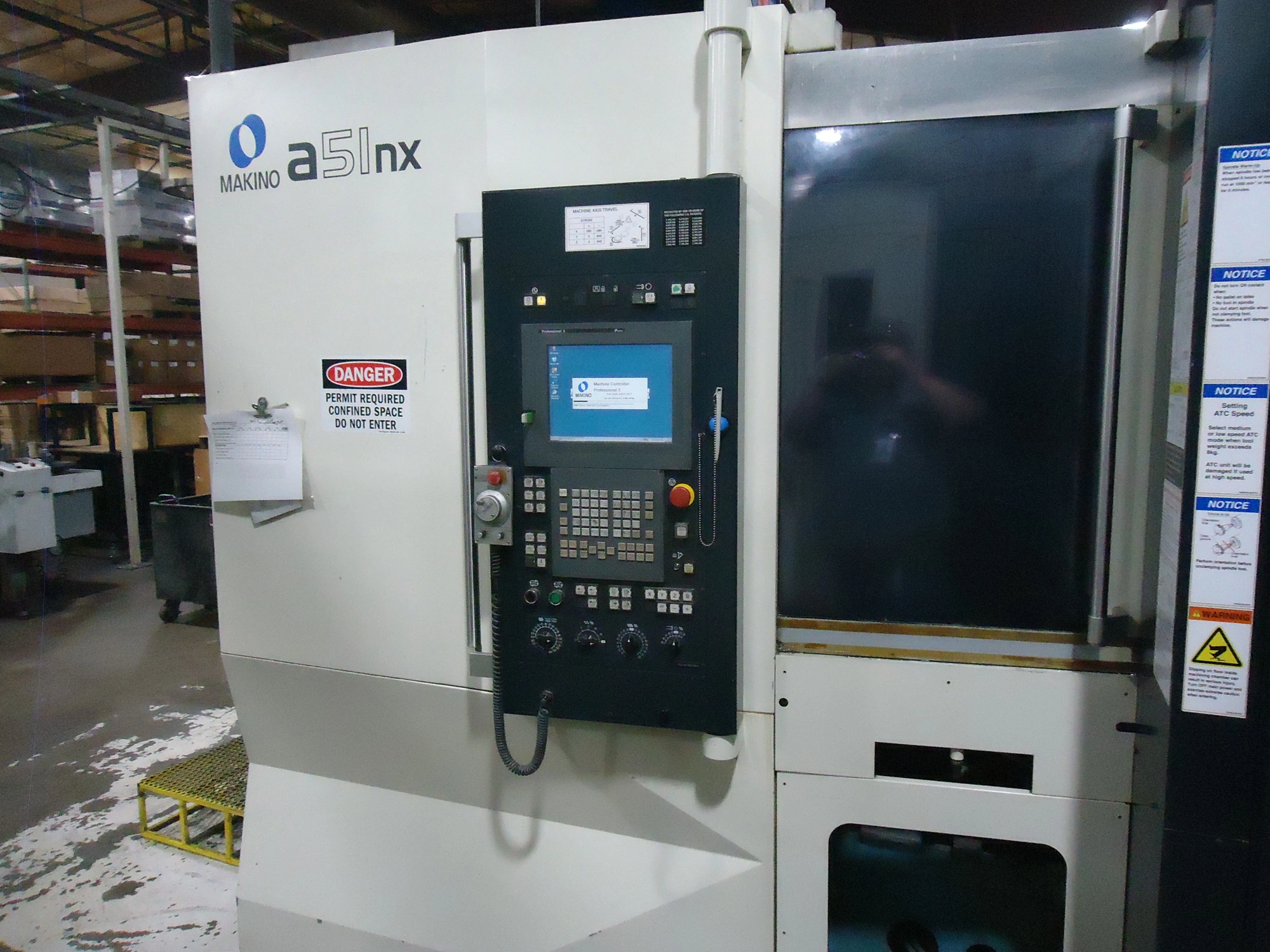

USED 2012 MAKINO A-51NX 4-AXIS CNC HMC
Overview
Description
Open to an Offer! - Must sell - No issues - 60 hours on a New spindle! A Nice Machine!
Specifications
| X | 22" | 558.8 mm |
|---|---|---|
| Y | 25" | 635 mm |
| Z | 15.7" | 398.78 mm |
| Power | 50 hp | 37.3 kW |
| RPM | 14,000 RPM | 14,000 RPM |
| # ATC | 60 | 60 |
| Taper | Cat 40 | Cat 40 |
| Pallet-W | 15.7" | 398.78 mm |
| Pallet-L | 15.7" | 398.78 mm |
| # Axis | 4 | 4 |
| Control | CNC (Pro 5) | CNC (Pro 5) |
| Dimensions | 98" x 135" x 106" | 98" x 135" x 106" |
| Weight | 17,200 lbs. | 17,200 lbs. |
ONE USED MAKINO 4-AXIS DUAL PALLET HMC
Model: a51nx
Pallet size: 15.7” x 15.7”
Travels: 22” x 25” x 25.2” in Z
Rapid Feed rates: X,Y, Z: 2,362 ipm
Max. feed rates: X,Y,Z: 1,968 ipm
B1: 47 rpm
Max. work piece: 1,100 lbs.
Spindle HP: 50
Spindle taper: Cat 40
Spindle ranges: 2
Spindle rpm: 14,000
Spindle torque: 240 Nm
ATC capacity: 60
Dimensions: 98” x 135” x 106” x 17,200 lbs.
EQUIPPED WITH:
Fanuc Professional 5 controls
Hosnic Md. RD3C-112A built in Chip conveyor
Coolant thru spindle
Full 4th axis
1G axis acceleration
One piece way covers
Step down transformer
Caron Tool Monitor
New 2012
Hours:
ON: 17,153
Operating: 16,851
Cut: 11,417
Spindle run: was 15,790 on old spindle which has been replaced with a new one by Makino due to poor surface finishes and has about 60 hours on the new spindle.
Machine was making good parts upon purchase.
OPEN TO AN OFFER!
Equipped With
Hosnic rear mounted chip conveyor
Coolant thru spindle
One piece way covers
