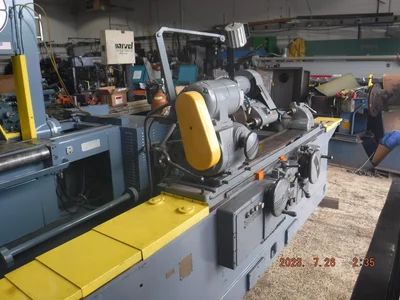

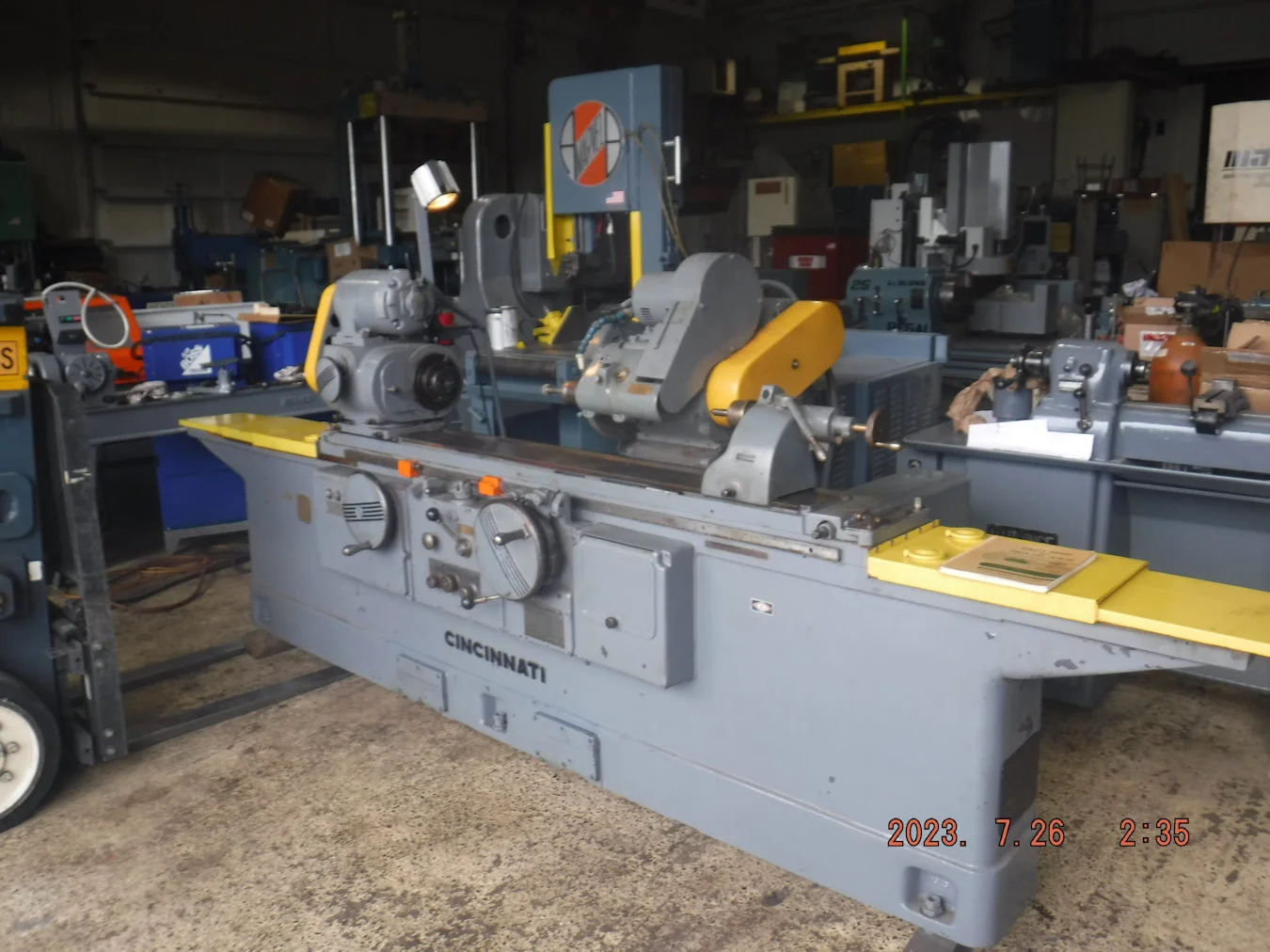

12" x 48" Capacity, 12" Swing, 48" Between

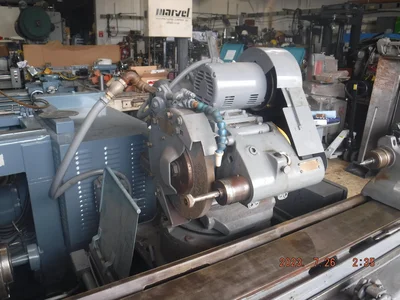

centers, Internal down type grind spindle, 12" x 1" x 5" Grinding
wheel (14" max), Table swivel taper toward wheelhead 3.5"/8.5°, Swivel
angle away from wheelhead 1" TPF/3°, Lower grind wheelhead
swivels 90°, Upper grind wheel swivels 30°, Workhead & tailstock
center tapers 9 B&S, Workhead spindle speeds from 50 to 500 rpm,
Adjustable table stops, Built in coolant, Workhead & internal motor
1hp, Hydraulic pump 1hp, Main spindle motor 3hp 208-220/440v 3ph,
Overall Dim. 13' 9"L x 5' 3"W x 5' 3"H, Est. Wt. 6,700 lbs.
