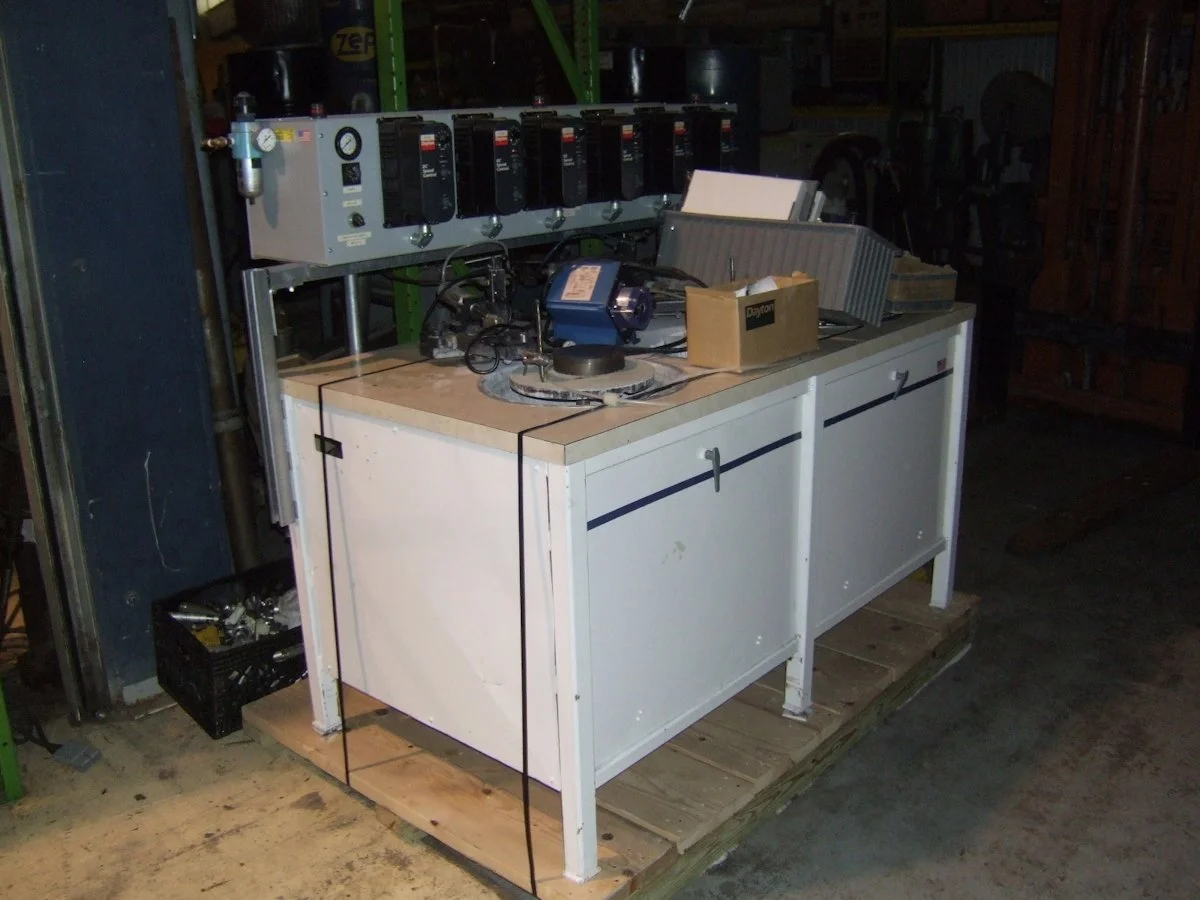

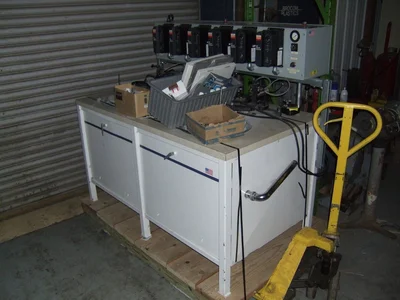

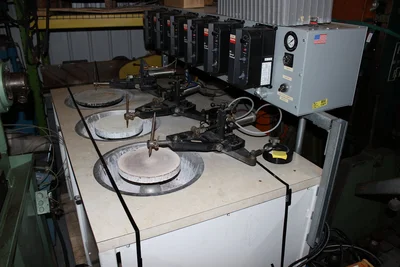

Buhler 3 Station Lapper
Overview
Specifications

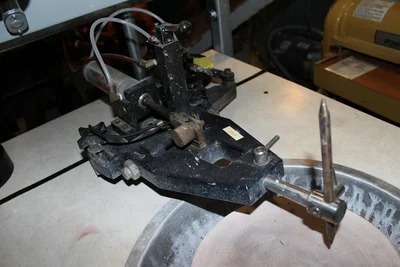

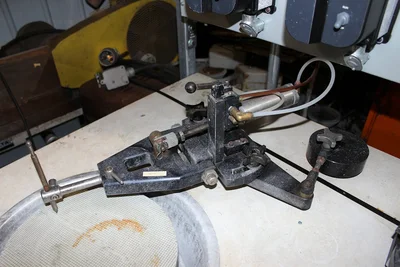

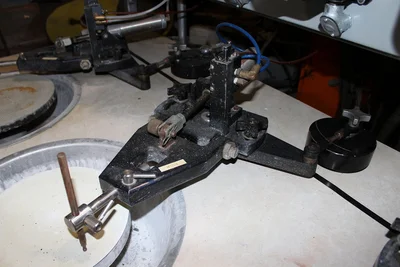

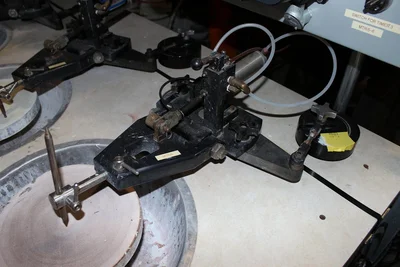

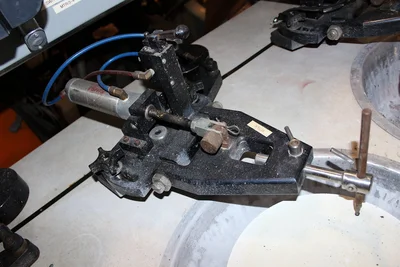

Custom Mfg. by 3M, 3 Strasbaugh work heads, Air operated up/down arms w/ hand lever and valve adjustments
to 5.5", in/out manual adjustment to 2.5", Up/down pointer adjustment to 5.5" Est., Rear

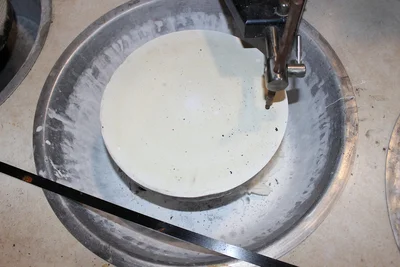

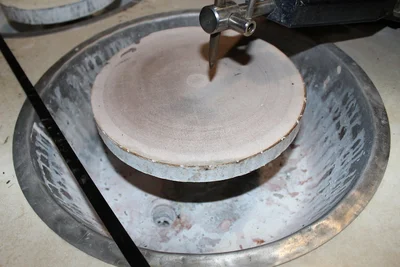

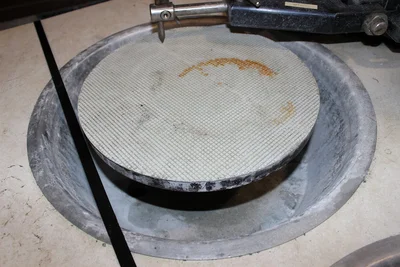

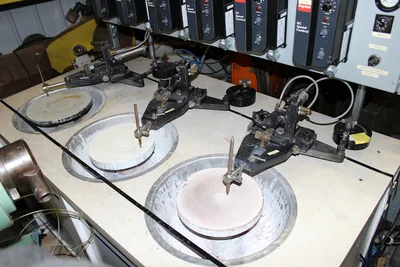

offset adjustment 0 to 3", 10" Dia. wheels on 2 stations and 12" Dia. on the other, 15.5"

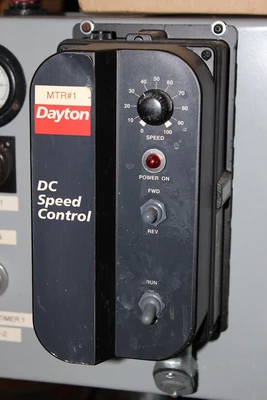

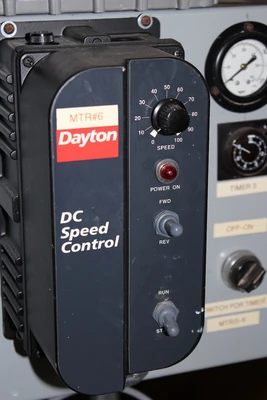

Dia. x 6" Deep slurry bowls w/ pull out drain plugs, 1.5" OD Main line & drain pipe, (6) Dayton

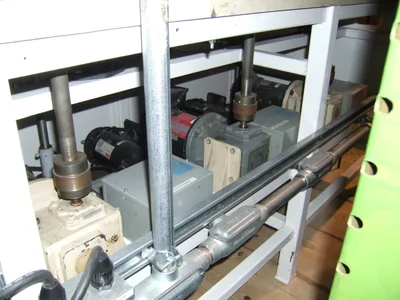

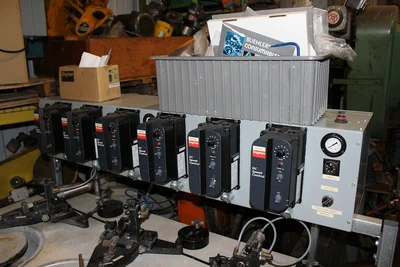

D.C. speed controls - run/stop - fwd/rev - Dial in from 0 to 100 - Power indicator light, (6) Dayton drive

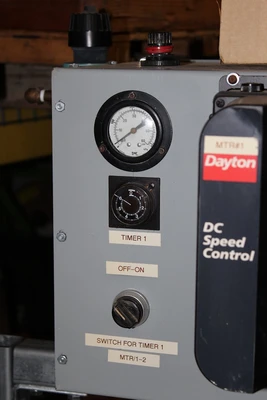

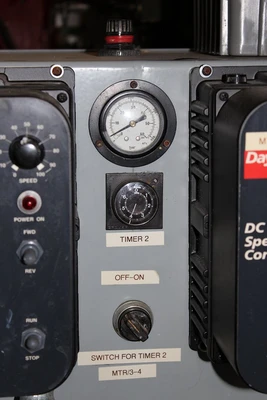

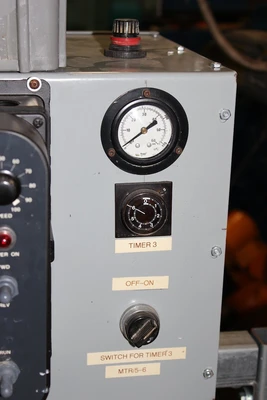

motors 3/4hp 2,500 rpm 90VDC attached to gear reducers (3 drive work heads & 3 drive tables), (3) Air

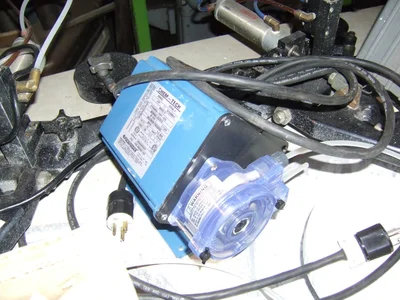

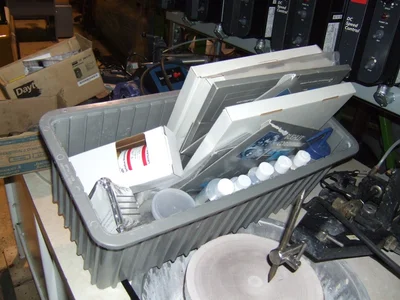

operated vales & timers w/ on/off switches, (1) Chemtech Pulsafeeder Air pump system, Box w/ fluids -
powders - disc pads & Misc., Overall Dim. (on skid) 6'L x 4'FB x 5' 5"H, Est. Wt. 2,500 lbs.
