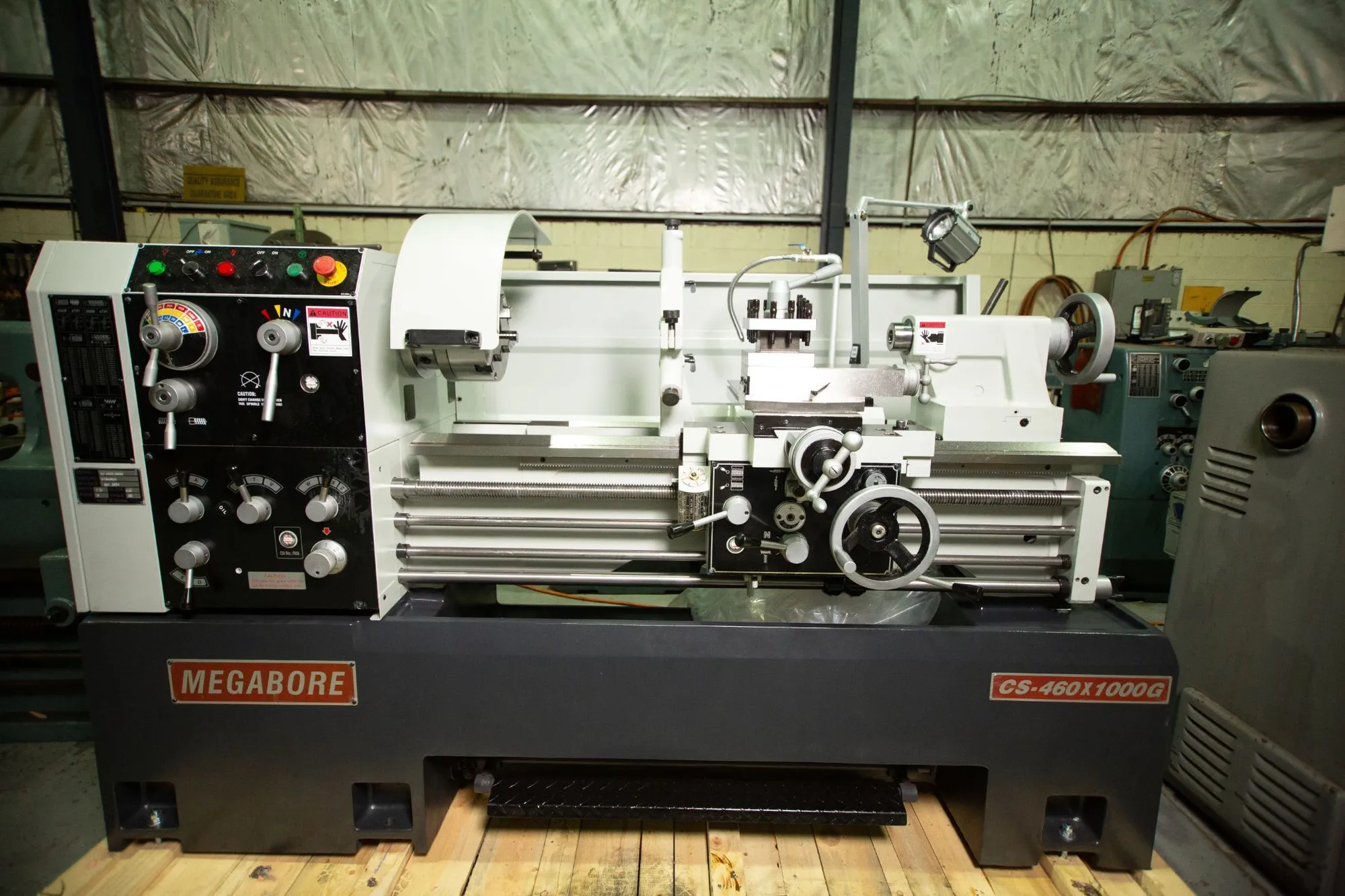

NEW MEGABORE cs460

MEGABORE CS-460/560/660 Centre Lathe Specifications
Capacity
Specification CS-460 CS-560 CS-660
Swing over bed 460 mm 560 mm 660 mm
Swing over cross slide 260 mm 360 mm 460 mm
Swing over gap 680 mm 780 mm 880 mm
Distance between centres 1000 mm 1600 mm 2200 mm
Centre height 230 mm 280 mm 330 mm

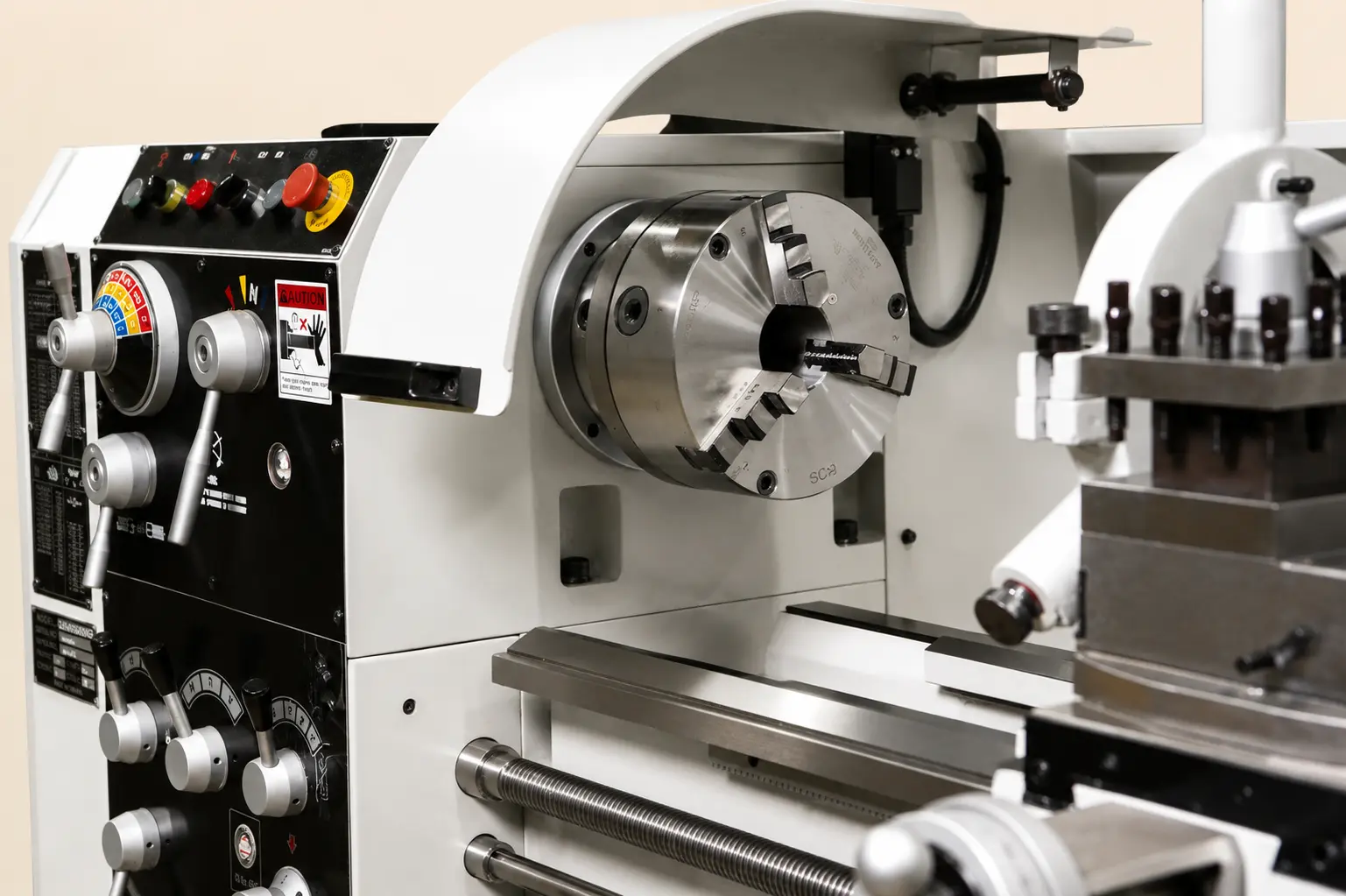

Headstock
Spindle nose: A2-6 or D1-6 (CS-460), A2-8 or D1-8 (CS-560/660)
Spindle bore: 58 mm (82 mm optional)
Number of spindle speeds: 12

Spindle Speed Range

58 mm spindle bore

36, 52, 80, 110, 125, 175, 260, 360, 650, 950, 1400, 2000 rpm

82 mm spindle bore (optional)

25, 40, 55, 75, 90, 130, 190, 270, 470, 720, 1020, 1500 rpm
Feeds & Threading
Lead screw: 35 mm
Feed changes: 32
Longitudinal feed: 0.04–1.0 mm/rev (0.0015–0.04")
Cross feed: 0.04–1.0 mm/rev (0.0015–0.04")

Thread Cutting Capacity

Inch Threads: 45 types – 2 to 72 TPI
Metric Threads: 41 types – 0.2 to 14 mm
Diametral Pitch: 21 types – DP 8 to 44
Module Threads: 18 types – Module 0.3 to 3.5
Tool Slide
Cross slide travel: 260 mm
Compound slide travel: 127 mm
Tailstock
Quill travel: 150 mm
Quill diameter: 65 mm (75 mm on CS-560/660)
Centre taper: MT#4 (CS-460), MT#5 (CS-560/660)
Motor
Main motor: 7.5 HP (10 HP optional)
Bed
Bed width: 336 mm
Machine Dimensions
Model Length Width Height
CS-460 2200 mm 950 mm 1280 mm
CS-560 2800 mm 950 mm 1330 mm
CS-660 3410 mm 950 mm 1380 mm
