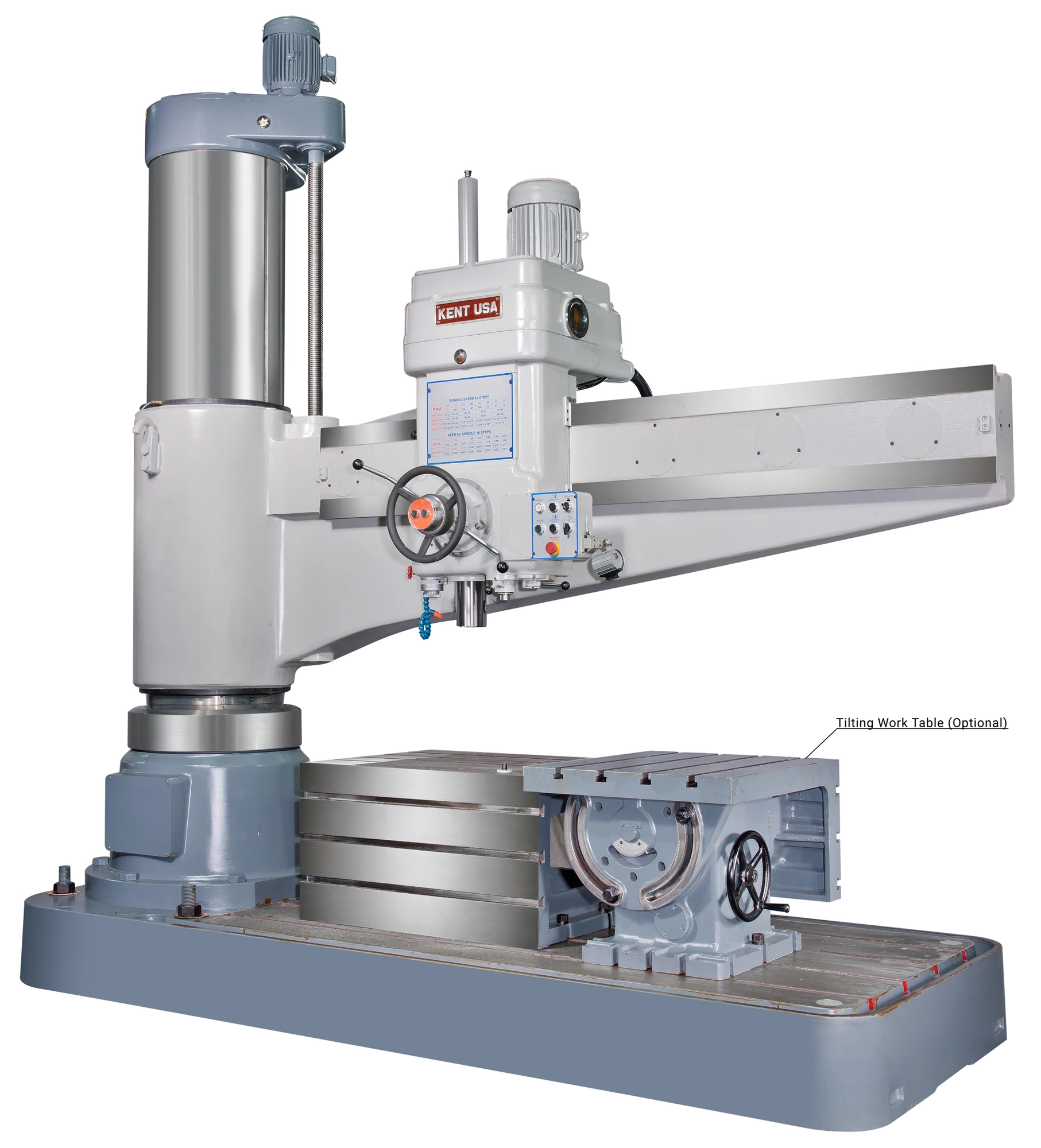

NEW KENT USA TRD-C2500

Features
16 spindle speed and 16 feed rates
Centralized single level control for forward and reversal of spindle
Ultra low noise
Light and handy to operate
Safety overload
Auxiliary dial for spindle feed depth
With standard accessories

Maximum Drilling Diameter (Castings/Steel) 3.94″ / 3.15″
Distance Between Spindle Axis and Column (max/min) 98.4″ / 19.68″
Distance Between Spindle End and Working Surface of
- Base Plate (max/min) 78.7″ / 21.6″
Spindle Taper M.T. 6
Range of Spindle Speed 16-1250 RPM (16 steps)
Range of Spindle Feed Speed 0.0016”-0.125”/Rev. (16 steps)
Diameter of Outer Column 21.6″
Length of Arm 102"
Table Size 39.4″ X 31.5″ X 22″
Spindle Motor 10 HP
Net Weight 24200 LBS
Gross Weight 27500 LBS

Standard Accessories
Work table
Tool releasing wrench
Drift
Reducing sleeve
Coolant system
Work light
