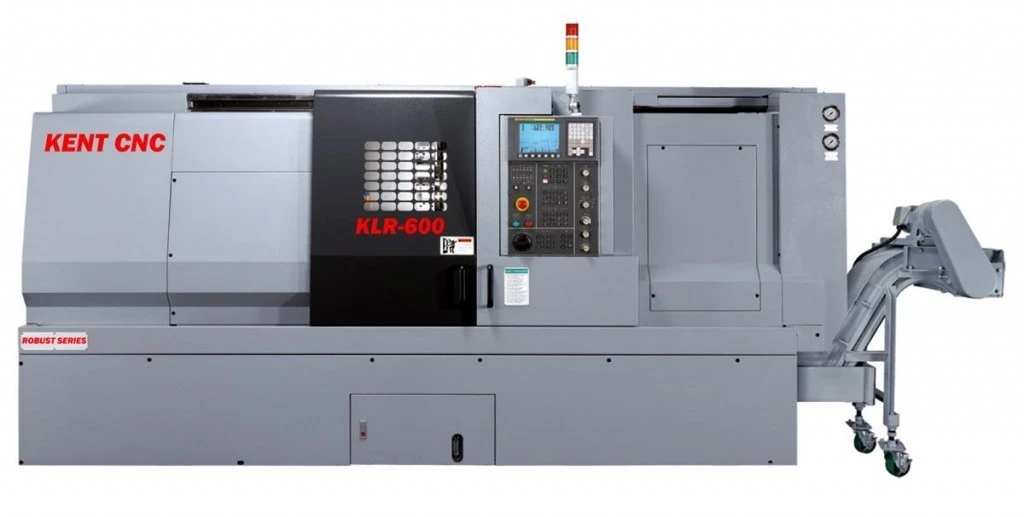

NEW KENT CNC KLR-600

The Kent CNC 2-Axis slant bed lathe series combines proven machine design with advance technology in control and manufacturing. Reliability and stability make these a favorite among demanding job shops and in-house productions alike. The heavy duty turret and rigid machine body structure enable higher turning efficiency with better finish and longer tool life – resulting in greater productivity and profitability all around. Upgrade your global competitiveness today.

Up to 15″ 3-jaw chuck with 5.15″ bar capacity
Up to 35.4″ max turning diameter and 82″ max turning length
High speed / high accuracy 12 station turret
Induction hardened and precision ground box ways
45° slant bed with one piece Meehanite® casting for superior dampening and stability
High grade C3 precision ball screws and pretension for enhanced precision
Auto lubrication system metered check valves and piston distributor
Programmable spindle air blow tube

Max Turning Diameter 35.4″
Max Turning Length 43.3″ (Up to 157″)
Spindle Nose A2-11
Chuck Diameter 15″ (Opt. Up to 20″)
Spindle Speed 2200 RPM
Bar Capacity 4.52″ (Opt. 7.08″)
Spindle Motor Up to 50 HP
Bed Slant
Rapid Traverse Z-Axis 944 – 236 ipm
Rapid Traverse X-xis
Guide Ways
Z-Axis Travel
X-Axis Travel 18.5″
Turret Tool Stations
Tailstock Travel –
Quill Travel
Quill Diameter
Positioning
Machine Weight 28600 – 52800 lbs
Machine Dimensions 209″ – 99″ x 118″
