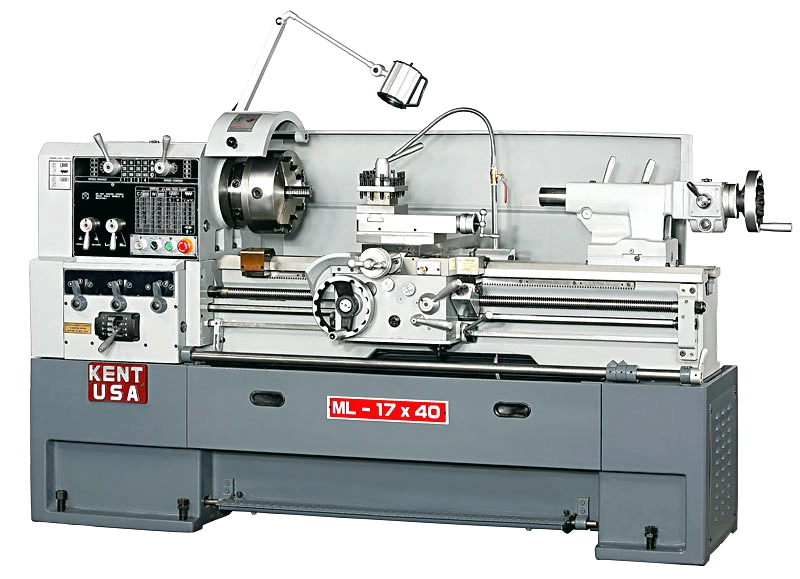

NEW KENT USA ML/X-1740T
Overview
Features
7.5 HP (10 HP on MLX model) Spindle Motor, 12-Speeds
3.125” Spindle Through Hole
Solid Full-Length Casting Base with Front Loading Chip Tray for Easier Cleaning
Adjustable Over-load Feed Clutches
Quick Reversal Feed from Apron
Full-length Safety Foot Brake
Spindle Jog Button Control
One-shot Lubrication for Apron, Carriage, and Bed Ways
Multi-position Adjustable Feed Position Stops
Dual Inch/Metric Calibrated Tailstock Quill with Knockout Tang; Heavy Duty Two Speed Tailstock
Dual Inch/Metric Dials with Quick-change Sleeve
Specs
Swing Over Bed 17"
Swing Over Cross Slide 11"
Swing Over Gap 24.5"
Width of Bed 12"
Distance Between Centers 44"
Cross Slide Travel 12"
Top Slide Travel 4.75"
Spindle Bore 3.15"
Spindle Speeds 12
Spindle Speed Range 36-1800 RPM
Through Hole Diameter 3.125"
Spindle Nose D1-6 (D1-8 on MLX)
Spindle Bore Taper MT#7 - MT#4
Thread – Standard (Whit-worth) 45 (2-72) TPI
Thread – Metric Pitch 39 (0.2-14) mm
Longitudinal Feed 0.0015"–0.04" in/rev
Cross Feed 0.00075"–0.02" in/rev
Lead Screw Diameter -
Threading Pitch -
Quill Travel 5"
Quill Diameter 2.3"
Quill Bore Taper MT#4
Main Motor 7.5 HP (10 HP on MLX)
Coolant Pump Motor 1/8 HP
Machine Dimension 89”x33”x58”
Packing Dimension 95”x39”x63”
Machine weight 3850 LBS
Packing weight 4510 LBS
Equipped With
Standard Accessories
3-jaw chuck
Steady rest
Follow rest
Coolant system
Full-length splash guard
Worklight
Chuck cover
Thread chasing dial
Toolbox with standard tools
3-position carriage stop
Bed mount carriage stop
Optional Accessories
4-jaw chuck
Digital Readout System (View Brochure)
Royal spindle type live center
BTC 3-jaw chuck with back plate (Zero-set)
Taper turning attachment
Rustlick coolant
Micro carriage stop
