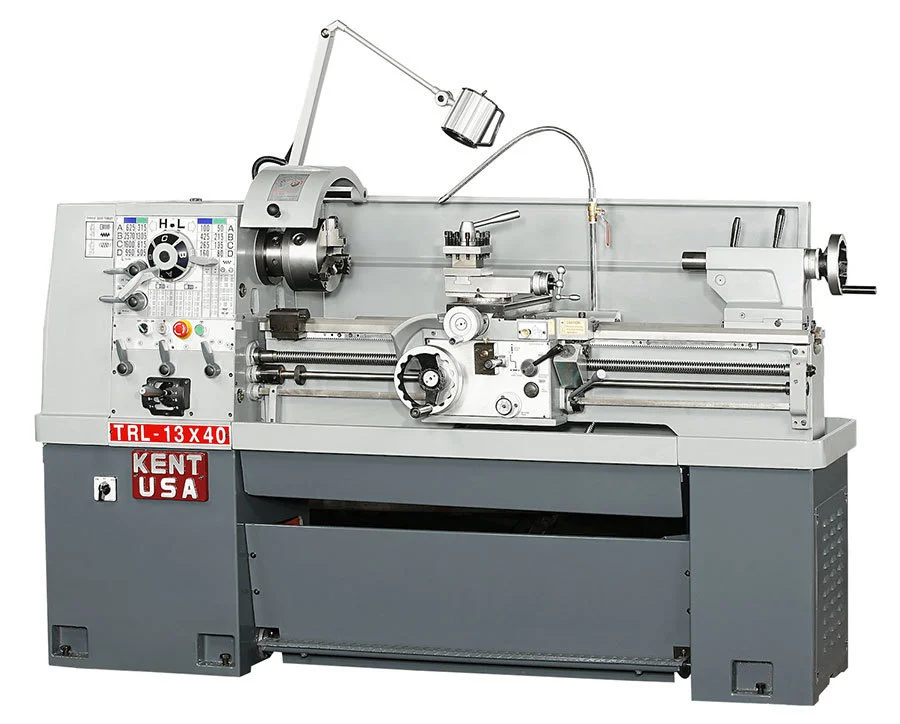

NEW KENT USA TRL-1340/V
Overview
Features
Heaviest duty 13” lathe in its class
5 HP main spindle motor
16 speeds, geared headstock (TRL-1340) (50 – 2570 RPM)
Infinitely variable speed in Hi/Low geared speed ranges (TRL-1340V) (100-500-3000 RPM)
Jog button for easy gear changes
Hardened and ground gears and bedways
Cast iron machine bedways and base
Removable chip pan for easy clean up
Foot brake and T-Slot compound
Inch/metric reading on dials
Inch/metric ruler on tailstock quill
ISO 9001 certified manufacturer
Specs
Swing Over Bed 13-3/8"
Swing Over Cross Slide 8-1/4"
Swing Over Gap 20"
Width of Bed 9”
Distance Between Centers 40"
Cross Slide Travel 7"
Top Slide Travel 4"
Spindle Bore 1.5"
Spindle Speeds 16
Spindle Speed Range 50-2570 RPM
Through Hole Diameter 1-9/16"
Spindle Nose ASA D1-4 Camlock
Spindle Bore Taper MT#5
Thread – Standard (Whit-worth) 45 (2-72) TPI
Thread – Metric Pitch 39 (0.2-14) mm
Longitudinal Feed 0.002"–0.067"
Cross Feed 0.001"–0.0375"
Lead Screw Diameter 1-1/8"
Threading Pitch 4 TPI
Quill Travel 4"
Quill Diameter 2"
Quill Bore Taper MT#3
Main Motor 5 HP
Coolant Pump Motor 1/8 HP
Machine Dimension 81.5" x 32" x 56"
Packing Dimension 90" x 37" x 60"
Machine weight 2200 LBS
Packing weight 2440 LBS
Equipped With
Standard Accessories
3-jaw chuck (7″)
Steady rest
Follow rest
4-position tool post
Coolant system
Full-length splash guard
Worklight
Chuck cover
Thread chasing dial
Toolbox with standard tools
Optional Accessories
4-jaw chuck (8″)
Digital Readout System (View Brochure)
Royal spindle type live center
BTC 3-jaw chuck with back plate
Taper turning attachment
Rustlick coolant
