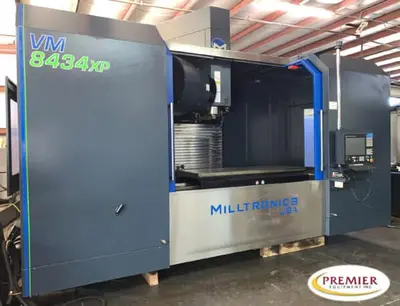

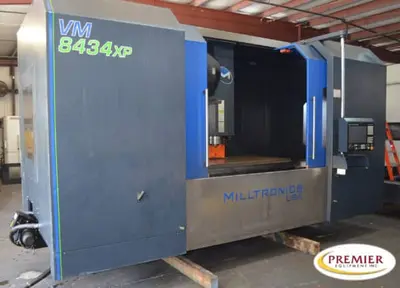

Milltronics VM8434XP CNC Mill
CNC Vertical Machining Center
CAPACITY
Travels: 84 x 34 x 30 in
Table Working Surface: 86 x 34 in
Max. Weight on Table: 4750 lbs
SPINDLE
Spindle Taper: BIG-PLUS® ISO No. 50
Spindle Speed: 8000 RPM
Spindle Power: 35/25 HP
AUTOMATIC TOOL CHANGER
Tool Shank: CT50
Tool Capacity / Type: 32 / Double Arm
Milltronics 9000 Series CNC Control
CHIPBOSS SOFTWARE FOR TROCHOIDAL MILLING
LINEAR ROLLER WAY VMC
300 PSI COOLANT THRU SPINDLE SYSTEM WITH ROTARY UNION & AUXILIARY COOLANT TANK WITH FILTER
RENISHAW COMBO PACK WITH OMP40-2 OPTICAL SPINDLE PROBE & OTS CONTACT TOOL SETTER WITH MACROS
4TH AXIS ELECTRICS PACKAGE WITH INTERNAL & EXTERNAL CABLES
TROYKE MODEL DL-16.5-B-RH-180-0, VERTICAL MOUNT 4TH AXIS ROTARY TABLE
TROYKE TS-16.5, 10″ CENTER HEIGHT/#5MT DEAD CENTER TAILSTOCK
Chip Conveyor
