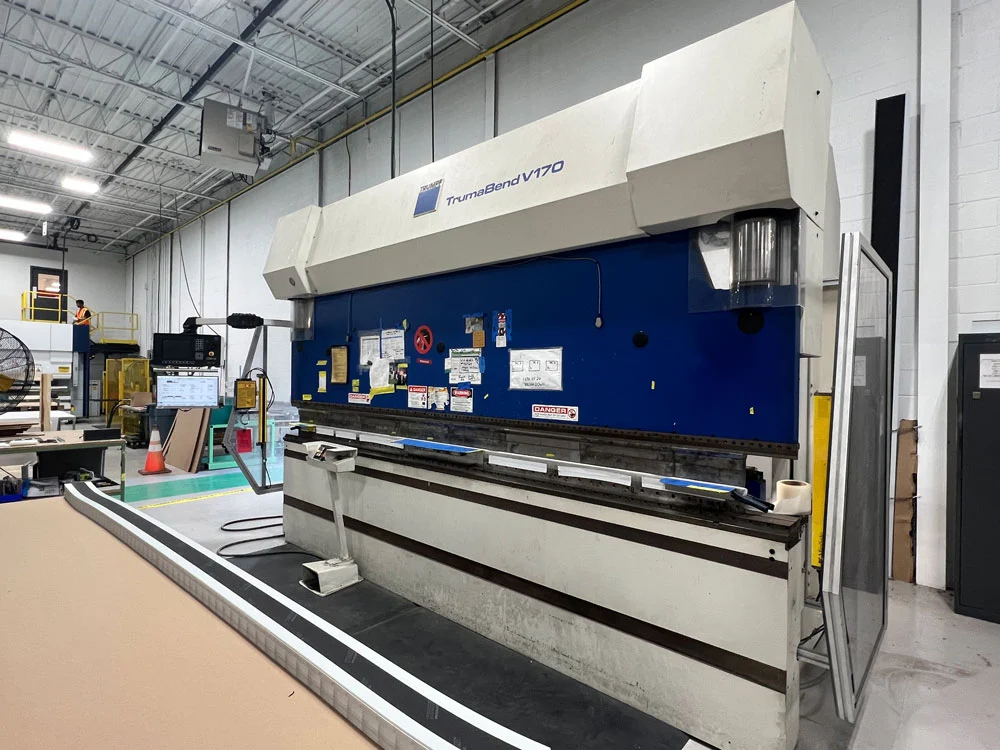

Pre-owned TRUMPF CNC HYDRAULIC PRESS BRAKE 13’ 5” x 187 ton capacity

FEATURES:
Specifications:
MODEL: V170 TRUMABEND
CAPACITY: 13′ 5” X 187 TON
SERIAL#: 80105A0014
OVERALL BENDING LENGTH: 160”
DISTANCE BETWEEN HOUSINGS: 145”
STROKE OF RAM: 14.3”
EFFECTIVE OPEN DAYLIGHT: 21”
SPEED: ADVANCE: 480 IPM
SPEED: PRESSING: 26 IPM
SPEED: RETURN: 320 IPM
MAXIMUM TRAVEL OF BACK GAUGE: 24”
TABLE WIDTH: 4.7”
DISTANCE FLOOR TO TOP OF BED: 41”
THROAT DEPTH: 16”
YEAR: 2002
MOTOR: 28 HP
WEIGHT:  39,000 LBS (approx)
DIMENSIONS (LxWxH): 180″ x 84″ x 119″
