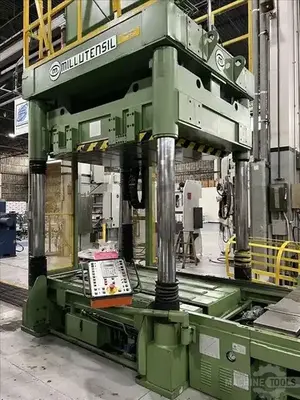

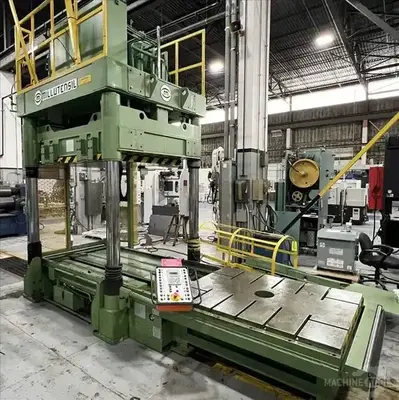

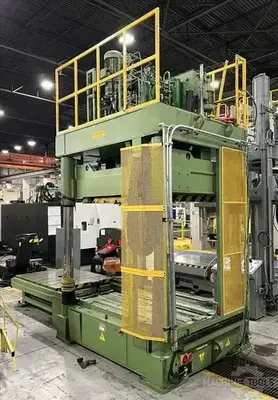

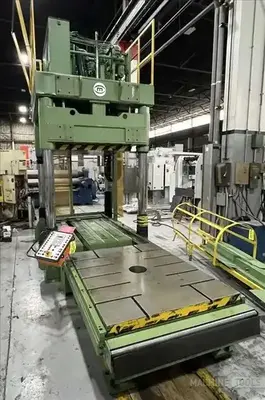

USED 1995 MILLUTENSIL MIL 162

Millutensil MIL 162 110-Ton Die-Tryout & Spotting Press

Tonnage Capacity: 110 Ton
Stroke Length: 39.4"
Daylight: 55.5"

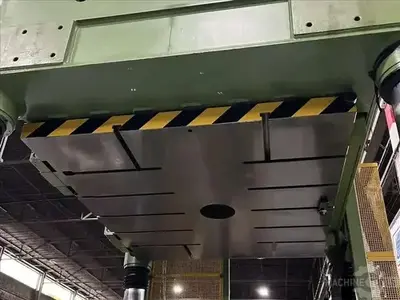

Upper Platen (L x R): 63" x 53"
Column Area (L x H): 67" x 54"

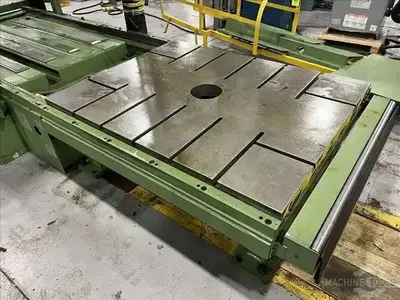

Moving Bolster: 63" x 49.5"
Max. Close Force: ~224,800 lbf
Max. Open Force: ~33,700 lbf
Max. Upper Load: 17,600 lb.
Max. Lower Load: 35270 lb.
Plate Rotation: Up To 180°
Motor: 24 HP

Speeds
Quick: 157 IPM
Working: 19.6 IPM
Return: 78.7 IPM

Feed Speeds
Approach: 189 IPM
Working: 19 IPM
Return: 118 IPM

Siemens PLC Control w/ Coros OP5 Touch Panel
