NEW CANTEK D405ANC

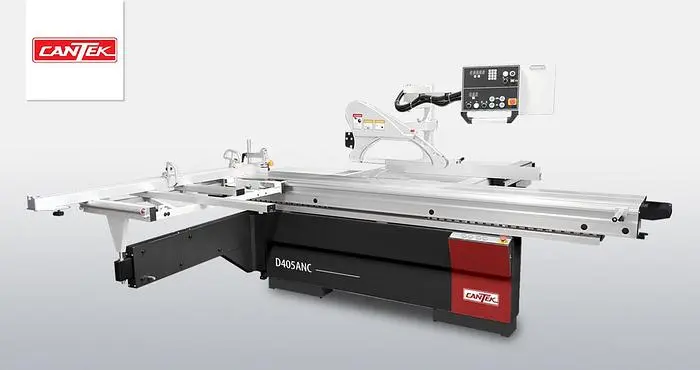

CANTEK D405ANC 1-AXIS Programmable Fence SLIDING TABLE SAW, 7.5HP, 3PH

Why a Cantek D405ANC 1-Axis Sliding Table Saw?

Programmable rip fence saves time & provides high level of accuracy and repeatability
Precision sliding table runs on hardened linear guides for extremely smooth and effortless movement
Powerful 7.5 HP main motor and separate 1HP scoring motor
Ergonomic eye level control panel for setting the rip width, blade height, and blade angle along with on/off switches for the main and scoring motors
Accurate crosscut miter fence for fast length and angle setting

Key Advantages

Programmable rip fence with maximum cutting width of 51″ by means of a precision ball screw
Motorized blade rise/fall
Motorized blade tilting with electronic angle display on control panel
Overhead control panel can be adjusted for operator convenience
Convenient external manual scoring adjustment
7.5 HP main motor with 1HP scoring motor
(3) saw blade speeds for optimum cutting results in various materials

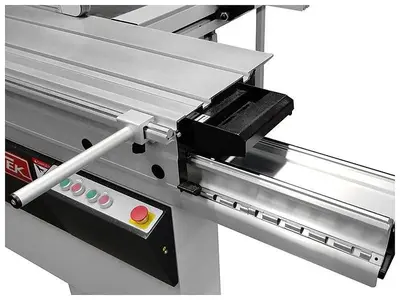

Precision anodized aluminum sliding table with prismatic rollers running on precision ground steel guides
Aluminum extruded crosscut fence with (2) flip stops with convenient angle adjustment for mitre cuts
Solid cast iron main table which is ground and polished
Heavy-duty outrigger for strong support of workpiece during cutting operations
Overhead CE blade guard with dust port
Complete with eccentric clamp and wedge for solid wood cutting

Specifications

Metric
Inch
Sliding table dimensions
3200 x 395mm
126 x 15.5″
Cast iron table dimensions
548 x 896mm
21.6″ x 35.3″
Extension table (rear)
952 x 896mm
38.7″ x 35.25″
Extension table (front)
830 x 320mm
32.7″ x 12.6″
Table size
1500 x 1726mm
59″ x 68″
Main saw blade (Max.)
400mm
16″
Main saw bore dia.
30mm
Max. cutting height @ 90o (355mm)
105mm
4.13″
Max. cutting height @ 90o (400mm)
130mm
5.12″
Max. cutting height @ 45o (355mm)
70mm
2.75″
Main motor power
7.5 HP
Main blade speed
3000 / 4000 / 5000 RPM
Scoring blade dia.
120mm
Scoring blade bore dia.
20mm
Scoring blade motor power
1 HP
Scoring blade speed
8000 RPM
Max. rip cutting width
1300mm
51″
Cutting width adjustment
Motorized
Saw blade tilting adjustment
0~45o (Motorized)
Scoring saw adjustment
Manual
Dust collection outlets
120 / 100mm
4.72″ x 4″
Machine shipping dimensions
2110 x 1150 x 1120mm
83″ x 45.25″ x 44″
Machine NW / GW
558 / 649 kgs
1228 / 1428 lbs
Sliding table shipping dimensions
3480 x 490 x 370mm
137″ x 19.3″ x 14.6″
Sliding table NW / GW
141 / 173 kgs
310 / 381 lbs
Rip fence shipping dimensions
1860 x 320 x 330mm
73.25″ x 12.6″ x 13″
Rip Fence NW / GW
41 / 52 kgs
90 / 115 lbs
Machine total weight NW / GW
740 / 874 kgs
1628 / 1923 lbs
Electrics
230/3/60 =26.20 Full total Amps

Optional crosscut fence with digital readouts for precise length setting

Optional digital display for angle of crosscut fence for accurate miter cuts
