NEW CANTEK PCS14

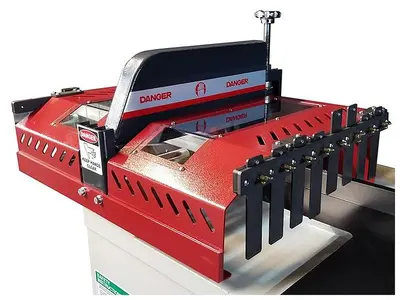

Cantek PCS14, 14″ Blade Capacity PNEUMATIC CUT-OFF SAW, "2 x 9" Cut Capacity, 5HP, 230V, 3PH

Available in Right Hand & Left Hand configuration
Cut off capacity (thickness x width): 1”x10”, 2”x9” up to 3”x8”
Powerful 5HP main motor

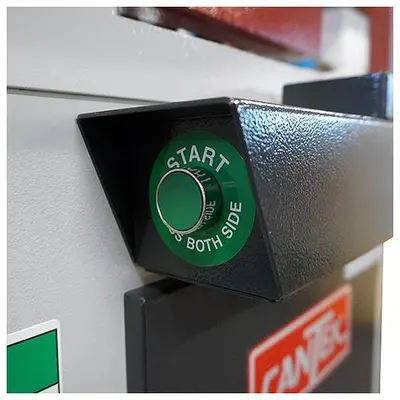

Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push button control)
Fast cutting cycle with up to 95 strokes per minute
Cast iron table surface is precision ground assuring high cutting accuracy.
Material clamp is easily adjusted for workpiece thickness variation.
CSA/UL magnetic switch

Cutting capacity (thickness x width) 1″ x 10″, 2″ x 9″, 3″ x 8″
Cycle speed 95 strokes/min
Cycle operation Air
Saw blade size 14″
Saw arbor diameter 1″
Saw blade speed 4100 RPM
Dust exhaust diameter Ø4″
Air 16.9 CFM / 70-85 PSI
Motor 5 HP
Table size 24.8” x 23.2”
Net weight 530 lbs.
Shipping weight 642 lbs.
Machine dimensions (LxWxH) 36” x 25” x 48”
Packing dimensions (LxWxH) 30” x 30” x 51.2”
Power requirements 230/1/60 = 28 amps | 230/3/60 = 15.2 amps
460/3/60 = 7.6 amps | 575/3/60 = 6.1 amps
