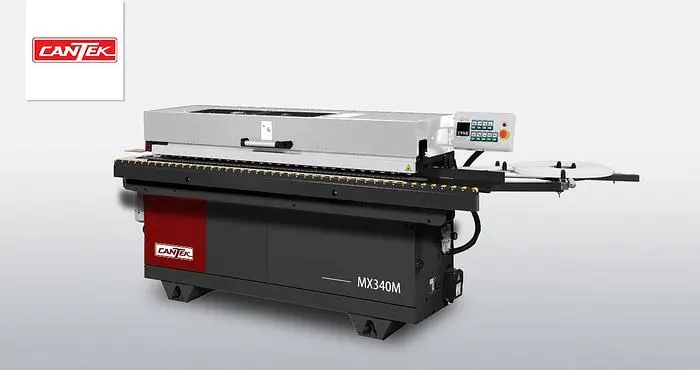

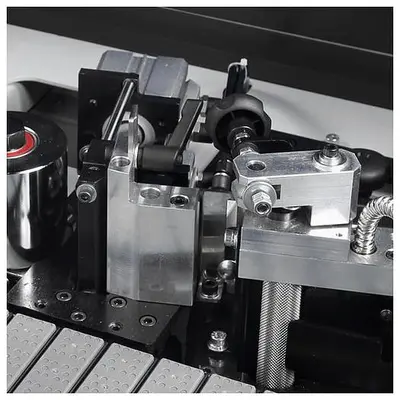

NEW CANTEK MX340M

Cantek MX340M Glue Pot Edgebander, 3MM Tape Cap., 230V, 1PH

Compact design with best-in-class edgebanding result.

The Cantek MX340M Automatic Edgebander is an entry level edgebander with the perfect blend of quality and affordability. With fine attention to detail and quality componentry the MX340M can output high quality edges on cabinet parts and more. This machine is equipped with end trimming, flush trimming, PVC scraping, and buffing. User friendly controls and adjustments allow for efficient changeovers of edge tape thicknesses between 0.4mm & 3mm.

Why Cantek MX340M Automatic Edgebander?

Compact design makes it the ideal edgebanding solution for small workshops
Precise adjustments for optimum edge quality
Chain feed system ensures consistent feeding of material for consistent results
Available in 230V 1 or 3 phase

Key Advantages

PLC control system with LED display and keypad

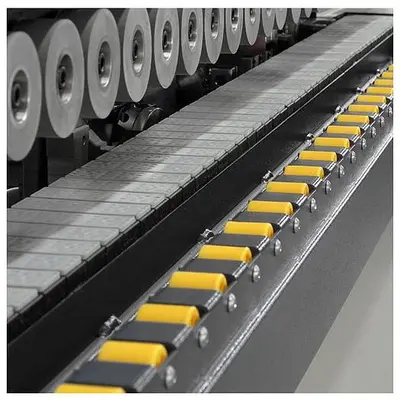

Workpiece is fed by chain
Edge coil support plate: Ø 800 mm (31.5″), for PVC/ABS
Automatic edge feeding with a thickness capacity of 0.4-3 mm;
Coiled edge bands up to 3 mm in thickness in Hard-PVC/ABS are cut with guillotine shears.

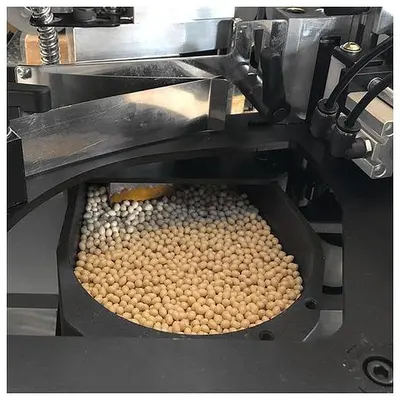

2 kg (2.64 lb) Teflon-coated hot-melt glue pot

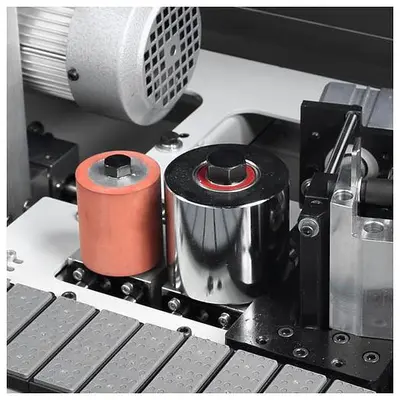

Spring loaded pressure unit with (2) pressure rollers (1 chrome & 1 rubber)
Heavy duty pressure beam with extendable work-piece support
Heated infeed fence for pre-heating the panel for optimum glue penetration
Mechanical digital readouts for convenient and quick adjustment to the working units & thickness

Working Units

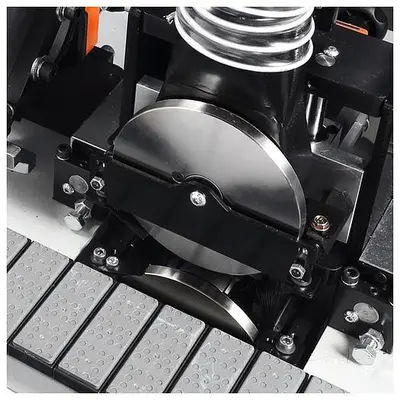

END TRIM
8800 RPM dual saw blade (80mm / 3.15″) end trimming unit

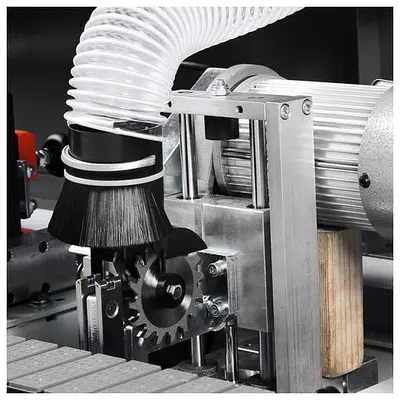

TOP & BOTTOM TRIM
10500 RPM top & bottom trimmers with insert knife cutters for radius trimming & bevel trimming

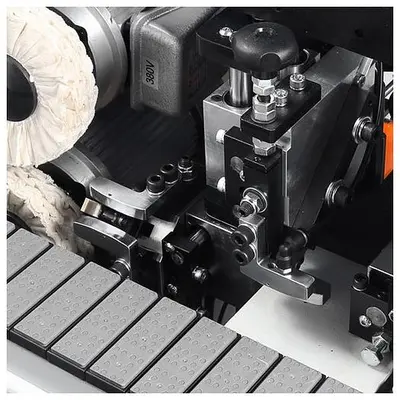

RADIUS SCRAPING
Radius scraper with 2mm radius knives can be easily excluded when not required

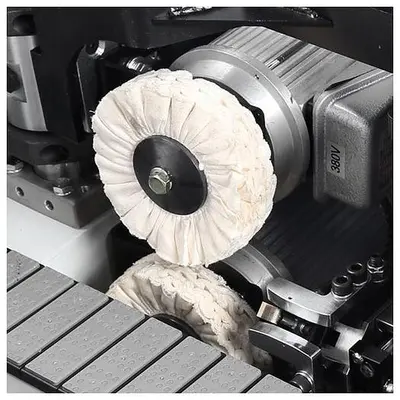

BUFFING
2800 RPM top & bottom buffing units to polish the machined edge

Specifications

Feeding speed 23 FPM

Panel thickness 0.472~1.77″

Edge thickness 0.4 ~ 3 mm

Minimum panel width 3 ½”

Minimum panel length 3 ½”

Working table height 33.5″

Dust collection outlet dia. 2 x 4″

Total connected power 5 HP

Air 7.06CFM / 85 – 100 PSI

Max. machine dimensions (LxWXH) 115″ x 47″ x 48″

Machine weight 968 lbs.

Shipping dimensions (LxWxH) 89″ x 29″ x 50″

Shipping weight 1115 lbs.
