NEW CANTEK HB500R

Cantek 20″ Bandsaw, HB500R, 3HP, Single or Three Phase Avail., 11 7/8" Under Guide

Rack & pinion guide adjustment
Table is made of cast iron and surface is precision machines for flatness

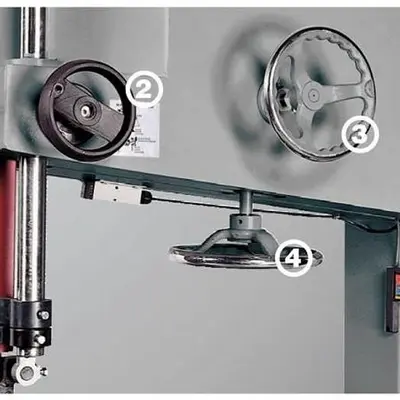

Convenient blade tension adjustment by a handwheel
Foot brake for quick stopping of the blade

Saw wheel diameter 20″
Motor 3HP
Table size 26 ¾” x 20 ½”
Table tilting 0 – 45 o
Throat capacity 18 ¾”
Height capacity under guide 11-7/8″
Width of wheel 1.38″ (35mm)
Blade speed 4450 FPM
Blade length 156 ¼” ~ 157 ½”
Blade width ¼” ~ 1 ¼”
Dust hood dia. 4″
Net weight 616 lbs.
Shipping weight 770 lbs.
Machine dimensions 38.2″ x 27 ½” x 74″
Shipping dimensions 77 ½” x 22.8″ x 39 ¾”
Electrical 230/1/60 = 17 Full Load Amps
230/3/60 = 9.6 Full Load Amp
