NEW CANTEK EM12

Cantek EM12 Continuous Throughfeed End Matcher, 10HP Motors, 3PH, 12" width Capacity, 1.38" Height Capacity

New Machine!

Designed for machining tongue & groove with or without v's on flooring and panel products

(2) 10HP cutterhead motors

1HP feed system motor

1/2HP cutter drive motor

230V or 460V

1.6" - 12" width capacity

0.4" - 1.38" thickness

12" min. length

Max. length unlimited

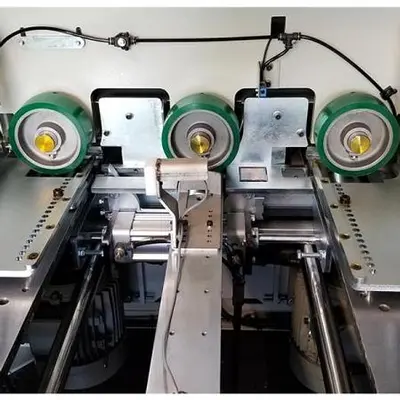

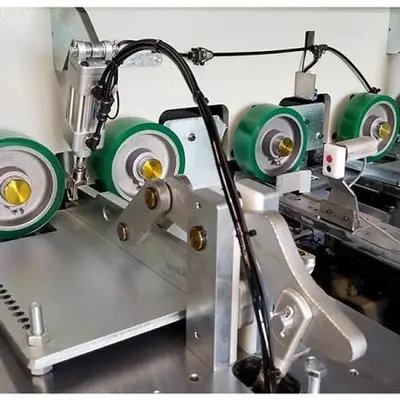

Top & side clamping

40mm spindle dia.

85PSI compressed air requirement

Dimensions 91" x 51.5" x 63"

Weight 2,530 lbs.

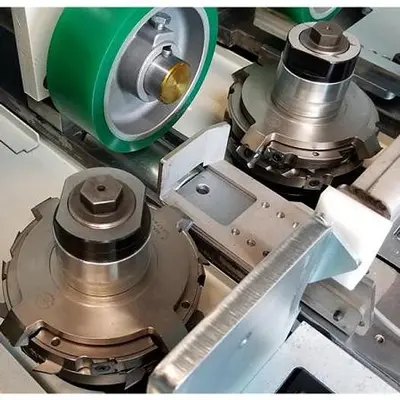

Includes 1 set - Carbide Insert type Tongue & Groove cutterheads

Options:

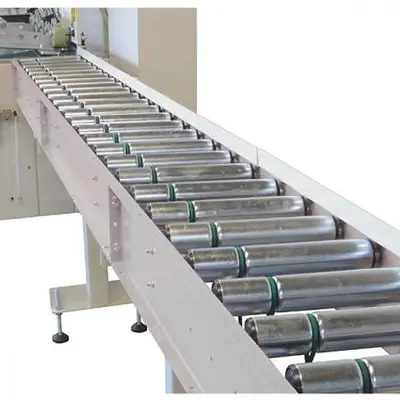

Increased Infeed Powered Roller Conveyor Length: 43” (1100mm) long section (per section) $ 950.00

Increased Outfeed Slide Table Length 43” (1100mm) (per section) $ 400.00

Deduct for Non Supply of Factory Cutterheads $ 2,040.00

Additional set of Carbide insert Cutterheads (Left & Right) $2,710.00
