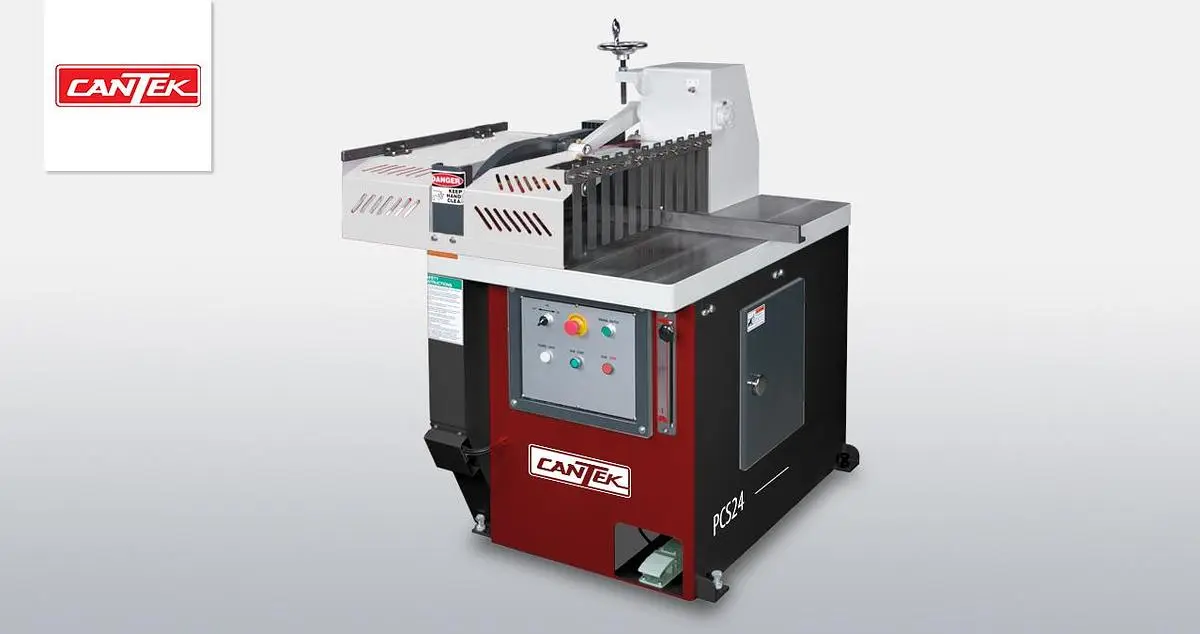

NEW CANTEK PCS24

Cantek PCS24M 24″ Blade Capacity PNEUMATIC CUT-OFF SAW w/Non-Ferrous Metals Package, 4" x 19", Cut Capacity, 15HP, 230V, 3PH

New Machine!

Available in Right Hand & Left Hand configuration
Cut off capacity (thickness x width): 2″ x 21″, 4″ x 19″, 6″ x 15″, 7″ x 8″
Powerful 15HP main motor

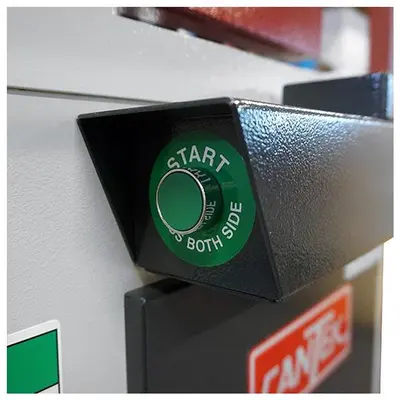

Pneumatic foot pedal operation with adjustable cutting speed from the front of the machine (Optional dual push button control)
Fast cutting cycle with up to 40 strokes per minute
Cast iron table surface is precision ground assuring high cutting accuracy.
Material clamp is easily adjusted for workpiece thickness variation.
CSA/UL magnetic switch

This saw has the Non-ferrous Metals Package included!

Pneumatic & Hydraulic Control
Mist Cooling Lubricator Sprayer Device
Sawblade for cutting Aluminum instead of cutting Wood
Air over Oil Cylinders
Chrome Table
Chrome Plate on Fence

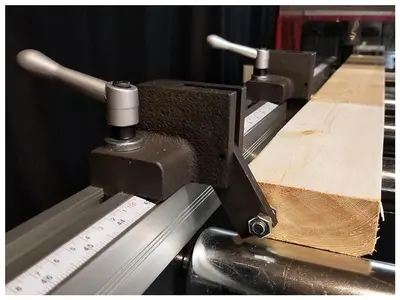

Horizontal Clamps with Pressure Regulator

Cutting capacity (thickness x width) 2″x21″, 4″x19″, 6″x15″, 7″x8″
Cycle speed 40 strokes/min
Cycle operation Air / mechanical
Saw blade size 24″ max. (20″ min.)
Saw arbor diameter 1″
Saw blade speed 2400 RPM
Dust exhaust diameter Ø4″ x 2
Air consumption 27.5 CFM
Motor 15 HP
Table size 45.3″ x 26″
Net weight 1058 lbs
Gross weight 1433 lbs
Machine dimensions (LxWxH) 40.2″ x 45″ x 55″
Packing dimensions (LxWxH) 53.5″ x 35.5″ x 57″
Electrical requirements 460/3/60 = 21 Amps
230/3/60 = 42 Amps
575/3/60 = 17 Amps
