| Arm Length | 84.25' | 25.7 m |
| Column Dia. | 13.78" | 350.01 mm |
| Power | 5 hp | 3.7 kW |
| RPM | 2,000 RPM | 2,000 RPM |
| Dimensions | L x W x H: 98.4" x 42.1" x 111.8" | L x W x H: 98.4" x 42.1" x 111.8" |
| Weight | 7720 Lbs. | 7720 Lbs. |
Specification (subject to buyer verification)
Drilling Capacity for Steel: 1.97”
Spindle Taper: M5
Max. Distance Between Spindle Axis and Column: 62.99”
Max. Distance Between Spindle Axis and Column: 13.78”
Max. Distance Between Spindle Nose to Base Plate: 48.03”
Max. Distance from Spindle Nose to Base Plate: 12.59”
Spindle Travel: 12.40”
Spindle Taper: Morse 5
Range of Spindle Speeds: 25-2000 RPM
Number of Spindle Speeds: 16
Range of Spindle Feeds: .00015 - .125 inch per rev.
Number of Spindle Feeds: 16

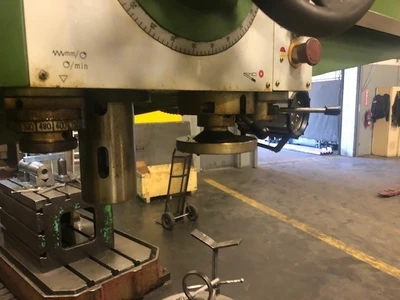

Box Table L x W x H: 19.68” x 24.80” x 19.68”
Travel of Spindle Head along Arm: 41.21
Power of Main Motor: 4 KW
Dimensions L x W x H: 98.4” x 42.1” x 111.8”
Weight: 7720 Lbs.
Equipped With (subject to buyer verification)
Coolant System
Work Lamp

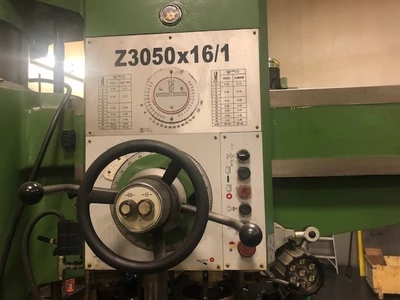

Controls on Headstock
Hydraulic Clamping
Hydraulic Speed and Feed
