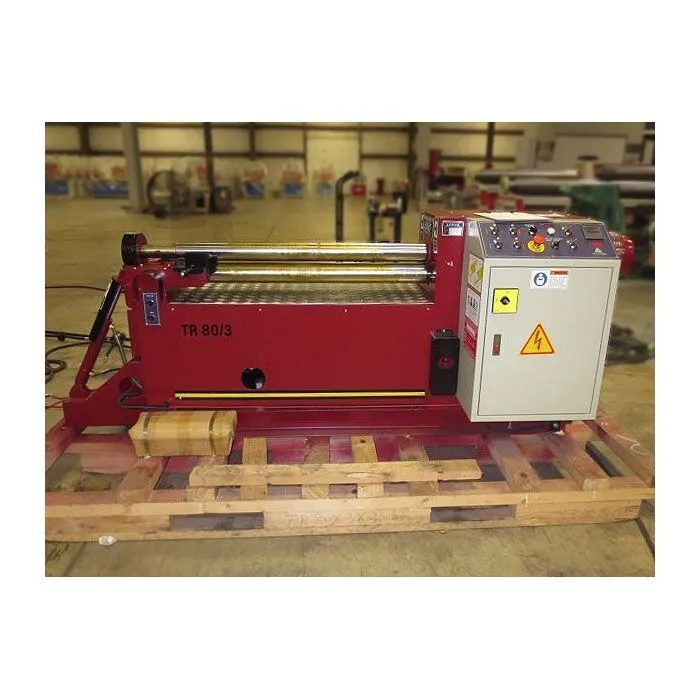

LEMAS 3-Roll initial-pinch bending rolls feature hydraulic adjustment of the bending roll and the lower pinch roll with separate convenient pinch gap indicator. In addition, the rear bending roll is hydraulically tiltable for cone rolling, and the hydraulic drop end makes it simple to remove the completed cylinder from the rolls.
| Length of Rolls | 3' | 0.9 m |
| Capacity - Mild Steel | 13 gauge | 13 gauge |
| Roll Diameter | 3.15" | 80.01 mm |
| Rolls Speed | 16 ft/min. | 4,876.8 mm/min. |
| Power | 2 hp | 1.5 kW |
| Hydraulic System Motor | 0.5 hp | 0.4 kW |
| Voltage | 230V or 480V (specify) | 230V or 480V (specify) |
| Phase | 3-phase | 3-phase |
| Dimensions | 75" x 33" x 38" | 75" x 33" x 38" |
| Weight | 1,700 lbs. | 1,700 lbs. |
*Typical Mild Steel – 36 KSI Yield
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 2 YEAR
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
