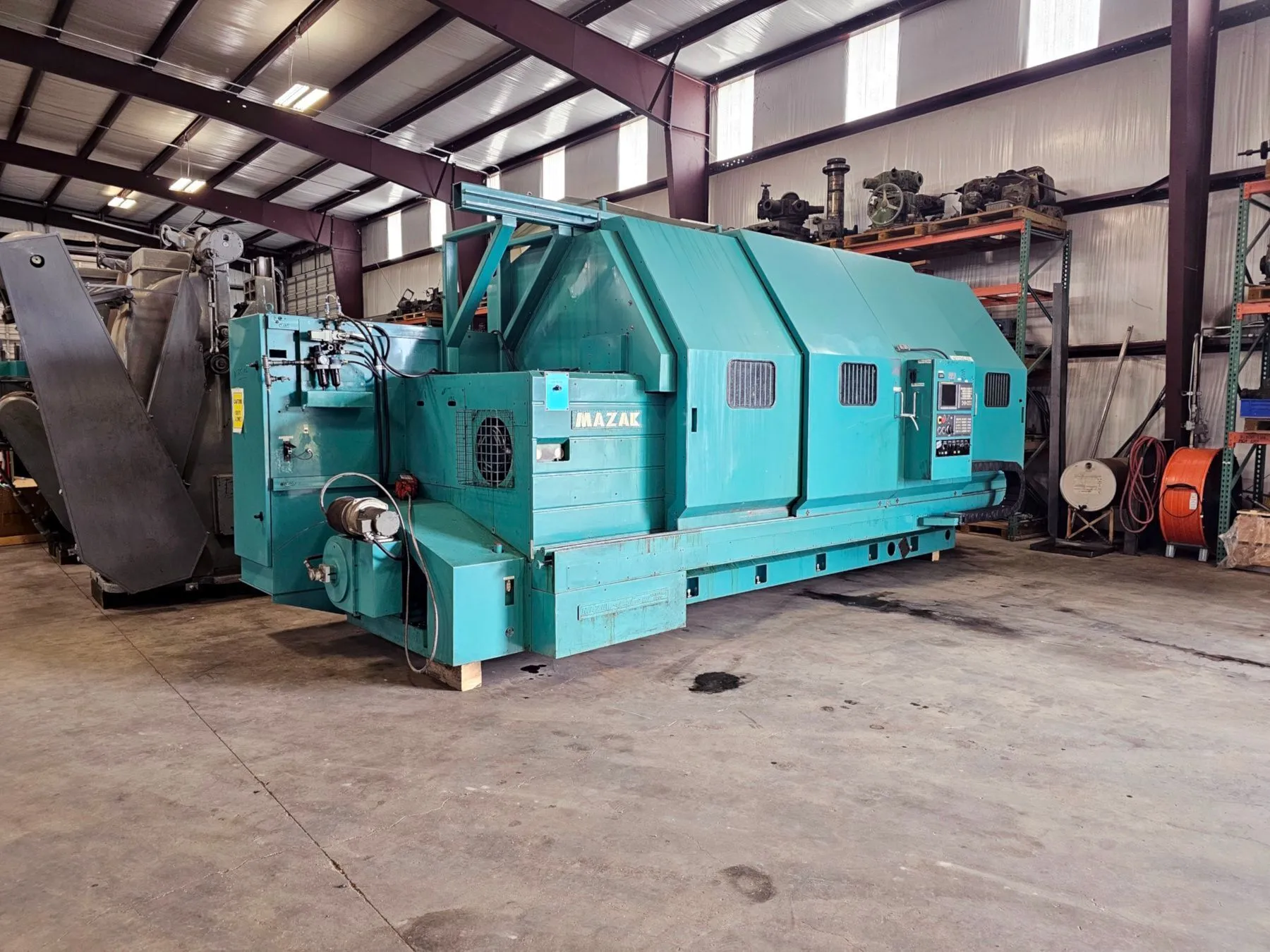

Mazak Slant Turn 60 N
The Mazak Slant Turn 60N CNC Lathe is an industrial workhorse built for serious turning capacity, boasting a 36-inch swing and 120.25-inch distance between centers. Powered by a robust 60 horsepower spindle motor with a 10 inch bore and 500 RPM capability, this machine is engineered to handle heavy shaft work, large-diameter parts, and high-volume production cycles. With a 20-inch air chuck, Fanuc OT-TD, and 15-position turret, it offers solid performance for tough applications in sectors such as energy, shipbuilding, and transportation.
Compared to compact turning centers, the Slant Turn 60N delivers immense rigidity and longer stroke support, and MT #6 tailstock. Machines with smaller bores and lower HP configurations fall short of the torque and part-length capacity found in this Mazak model, making it an ideal solution for large-scale precision work in demanding environments.
| Swing | 36" | 914.4 mm |
| Center Distance | 120" | 3,048 mm |
| Max RPM | 500 RPM | 500 RPM |
| Bar Capacity | 10" | 254 mm |
| Chuck Size | 31.5" | 800.1 mm |
| Tailstock | Yes | Yes |
| Power | 60 hp | 44.7 kW |
| # Axis | 2 | 2 |
| Control | CNC (Fanuc OT-TB) | CNC (Fanuc OT-TB) |
| Dimensions | R-L 25' X F-B 9' X Height 10'6" | R-L 25' X F-B 9' X Height 10'6" |
| Weight | 42,000 Lbs. | 42,000 Lbs. |
Control......................................Fanuc OT-TD
Rebuilt And Retrofitted......................2001
Swing........................................36"
Turning diameter.............................28.75"
Center distance..............................120"
Chuck size BB800-410-3 BBN...................31.5"
Bar capacity.................................10"
X axis travel................................25.3"
Z axis travel................................125.1"
Rapid traverse (x/z).........................475/630 IPM
Spindle nose.................................A2-15
Spindle speed................................500 rpm
Main motor...................................60 hp
Dimension....................................R-L 25' X F-B 9'
Height.......................................10'6"
Machine weight...............................42,000 pounds
Tailstock....................................Yes
Gear box.....................................Yes
Turret capacity..............................10 + 5
Chip Conveyor................................Yes
Note:
Machine has been cleaned and cycled. Just removed from service.
