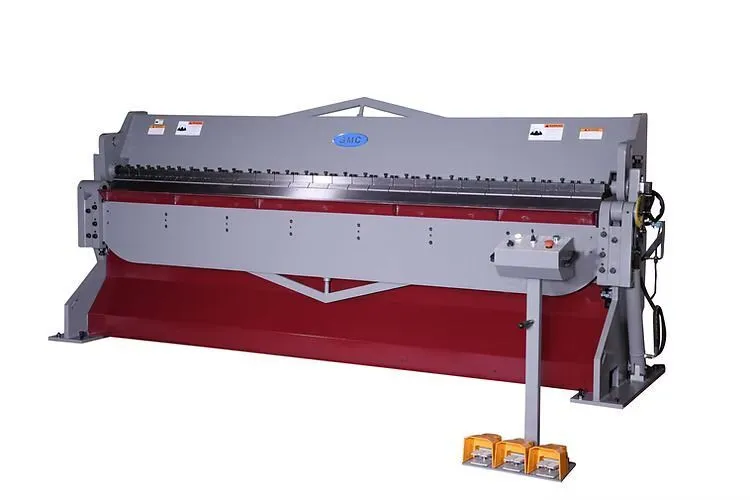

NEW GMC HBB-1214

This machine is compatible with a phase converter. Please note that the phase converter must be installed by GMC Machine Tools to ensure warranty coverage.

Once the machine is received and the phase converter is installed by us, it will be ready for use. For more information or if you have any further questions or need assistance, feel free to contact us.

Max Bending Length 12'
Capacity:
Mild steel(hot roll), 60k PSI 12’x 14Ga
stainless steel, 85k PSI 12’x 16Ga
Soft aluminum, 28k PSI 12’ x 10Ga
Hemming max. thickness mild steel 26Ga.
Bend Degree 135
Max. Box & Pan Depth 153mm=6.02”
Large Beam Opening 3"
Oil Tank Gal. 32 Gal
Hydraulic oil recomended:
Shell #68 or equivalent
Main Motor 10 HP 3 Phase Prewired: 220VAC 35A Optional: 440VAC 20A
Machine Weight: 8,950 lbs.
Shipping Weight: 9,150 lbs.
Overall Dimensions: (LxWxH) 166" x 46" x 66"
Shipping Dimensions: 179" x 41" x 67"
Assorted fingers
26” manual back gauge with one side handwheel operation
Angle set up dial
Hydraulic clamping system
Foot pedal control for hydraulic clamping & auto mode
This machine is not made to Hem over 22 GA.
This machine can hem light duty gauge up to 26 GA.
