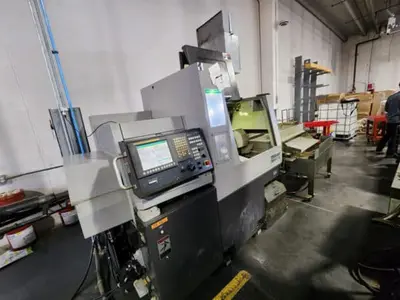

Tsugami B0325-II Swiss Lathe – 2015

Tsugami BO325II CNC Swiss Type Lathe

CAPACITY 1.25″

POWER 3.7 hp

RPM 8,000 RPM

# AXIS 5

SWISS, CHUCKER OR CONVERTIBLE? Convertible

MAIN SPINDLE INDEXING Full C

SUB SPINDLE INDEXING 5 degree

CONTROL CNC (FANUC OI-TD)

DIMENSIONS 104.5″ x 57″ x 77″

WEIGHT 7,500 lbs

To the best of our knowledge all details listed below are deemed correct. It

is the buyers responsibility to confirm prior to purchase.
General Machine Specifications per Manufacturer’s Brochure
Number of Axes: 5 (X1,Y1,Z1, X2,Z2)

C Axis Optional

Chucking Barstock Diameter: 8 – 32mm (0.31 – 1.25″)

Max Machining Length: 320 mm (12.59″)

(w// direct Drive Rotary GB)

Max Drilling Diameter: 12 mm (.47″)

Max Tapping Diameter: M10

Max Back Spindle Chucking Diameter; 32mm (1.25″)

Max Back Spindle Drilling Diameter: 10mm (.39″)

Max Back Spindle Tapping Diameter: M8

Max Tool Spindle Drilling Diameter: 8mm (.31″)

Max Tool Spindle Tapping Diameter: M6

Max Tool Spindle Slotting Diameter: 45mm (1.77″)

Main Spindle Speed: 200 – 8000 rpm

Back Spindle Speed: 200 – 8000 rpm

Rapid Traverse Rate: 32 m/min (X1,Y1,Y2 24 m/min)
Tool Storage Capacity (std/max): 27/39

Stick Tool Size: 16 x 16 x 100mm

Tooling Configuration:

Live Cross Drills: 4

OD Turning Tools: 8

ID Tools (by sub spindle) 2

ID/BW Tools: 5

BW Tools: 4 Fixed
Main Spindle: 3.7 / 5.5 kW

Back Spindle: 2.2 / 3.7 kW

Tool Spindle: 1.0 kW

Rotary Guide Bushing: 1.5 / 3.0 kW

X1: 0.5 kW

Y1, Z1, X2, Z2: 0.75 kW

Coolant Pump: 400 W

Lubricating Pump: 3 W
Power Requirements: 21.4 KVA

Air Requirements: 0.4 MPa or Above

Air Discharge rate: 40 NL/min

Coolant Tank Capacity: 180 L (47.5 gal)
Machine: 104.5″ x 57″ x 77″ 7,500 lbs

Fanuc 0i-TD Control

Edge Patriot 338 Magazine Barloader, 12′ bar length cap

MP Systems V2 High Pressure Coolant System

TriMist 850 G2 Mist Collection System

LNS Turbo Chip Conveyor

Long Parts Attachment

Machine Ran:

– C360 Brass & C230 Red Brass

Only oil ran.

-XTREME CUT 757

Power On: 40,383 hrs

Operating Time: 22,500 hrs apprx (at some point the clock was resent, average run time is 1-1.5 shifts/day)
