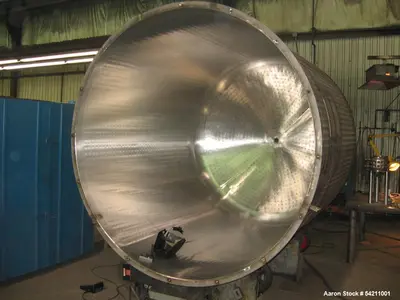

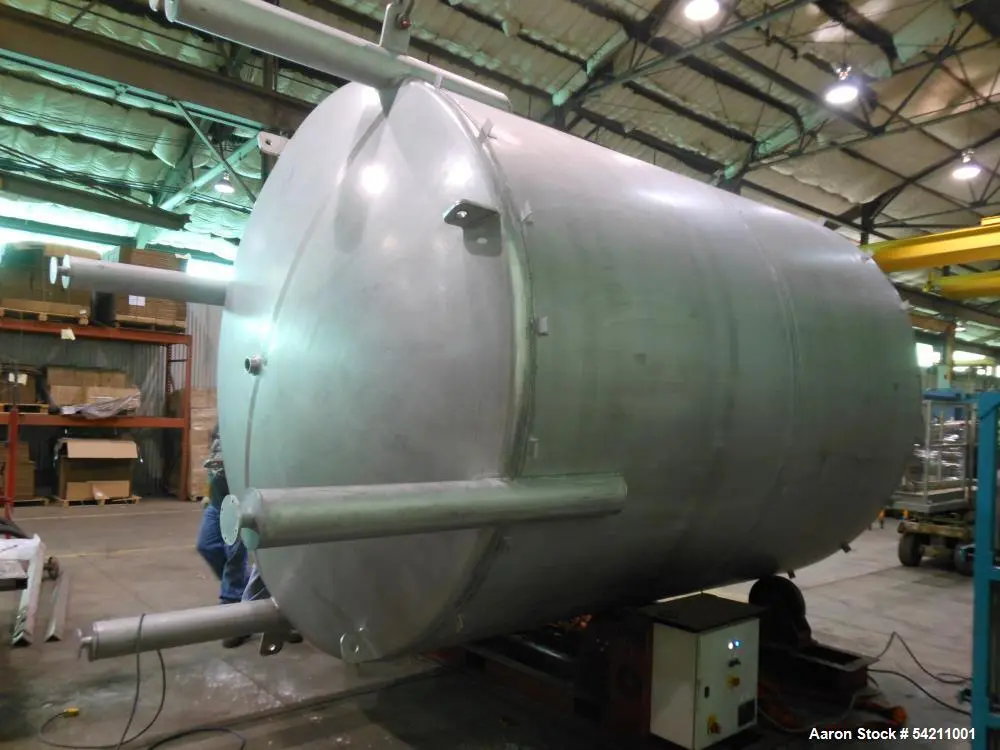

Unused 4,000-Gallon Stainless Steel Storage Tank | Type 304 SS | Dished Top & Bottom | 108" Dia x 108" H | Atmospheric | Manway & Flanged Fittings

Unused 4,000-Gallon Stainless Steel Storage Tank | Type 304 SS | Dished Top & Bottom | 108" Dia x 108" H | Atmospheric | Manway & Flanged Fittings. Non jacketed, insulation, or heat-transfer surface, making it suitable for ambient storage applications. The tank is supported by four Type 304 stainless steel legs with square footpads and includes two 304 stainless steel lifting lugs for handling. Fittings include, on the top head: (1) 12", (2) 4", and (1) 3" 150# RFSO flanges, along with a 24" cross-arm manway with an EPDM gasket, All 316 stainless steel. The bottom head features (1) 3" 150# RFSO flange. Both the interior and exterior surfaces have a mill finish with cleaned, as-welded joints, providing a durable and sanitary surface suitable for general storage use. NOTE: Description for this tank is approximate. Customer will opportunity to modify nozzle configuration. Please contact your Aaron Professional.

Used Equipment Facts About This Machine
🏭 Manufacturer Information

Condition: Unused / New

Capacity: 4,000 Gallons

Construction Material: Type 304 Stainless Steel (Interior & Exterior)

Design: Cylindrical shell with dished top and bottom heads

Service Rating: Atmospheric (non-pressure)

Surface Finish: Mill finish, cleaned with as-welded joints

Mounting: Four stainless steel legs with square footpads

Country of Manufacture: USA

Modification: Nozzle configuration customizable upon request

⚙️ Product Description

This 4,000-gallon stainless steel storage tank is a new, unused Type 304 stainless steel vessel designed for ambient, atmospheric pressure storage in sanitary or industrial applications.
The tank features a cylindrical shell with dished top and bottom heads, offering structural integrity and easy cleaning.
Built with no jacket, insulation, or heat-transfer surface, this unit is ideal for general-purpose or bulk liquid storage.
It includes 304 stainless steel legs with square footpads for stable installation and two stainless lifting lugs for safe handling.
The tank’s top head fittings include:

(1) × 12" 150# RFSO flange

(2) × 4" 150# RFSO flanges

(1) × 3" 150# RFSO flange

(1) × 24" cross-arm manway with EPDM gasket (all 304 stainless steel)

The bottom head includes a 3" 150# RFSO flange for drainage or outlet service.
With a mill finish inside and out, and cleaned, as-welded joints, this tank provides a durable, corrosion-resistant, and sanitary storage surface, making it suitable for a wide range of ambient liquid or dry material storage needs.

📏 Specifications

Capacity: 4,000 Gallons

Material: Type 304 Stainless Steel

Orientation: Vertical, cylindrical

Shell Dimensions: 108" Diameter × 108" High

Design Pressure: Atmospheric service

Top Head: Dished

Bottom Head: Dished

Jacket: None (non-jacketed)

Insulation: None

Heating Surface: None

Mounting: 4 × 304 SS legs with square footpads

Lifting Points: 2 × 304 SS lifting lugs

Fittings (Top Head):

(1) × 12" 150# RFSO flange

(2) × 4" 150# RFSO flanges

(1) × 3" 150# RFSO flange

(1) × 24" cross-arm manway with EPDM gasket

Fittings (Bottom Head):

(1) × 3" 150# RFSO flange

Finish: Mill finish (interior and exterior)

Welds: Cleaned and as-welded

Condition: Unused / New

Modification: Custom nozzle configurations available

🧩 Applications

Food and beverage storage

Chemical solution containment

Pharmaceutical ingredient storage

Cosmetic or personal care ingredient tank

Water or glycol storage

Plant-based oil or extract holding

Brewing or distillation process storage

General industrial or utility water tank

Non-corrosive chemical processing

Agricultural or bulk liquid containment

⚗️ What Might This Be Used For

This new 4,000-gallon stainless steel storage tank is perfect for ambient, non-pressurized liquid or chemical storage in sanitary, industrial, or manufacturing environments. Its durable 304 stainless construction and mill finish surfaces make it ideal for food, beverage, cosmetic, or chemical applications requiring corrosion resistance and cleanability.

🧴 Products That Could Use This Tank

Drinking or process water

Liquid flavorings and syrups

Plant-based oils and extracts

Liquid detergents and cleaning agents

Cosmetic creams or lotions (bulk)

Fermentation liquids

Food ingredients or juices

Non-corrosive chemicals

Glycol or antifreeze mixtures

Wastewater or neutralized effluent
