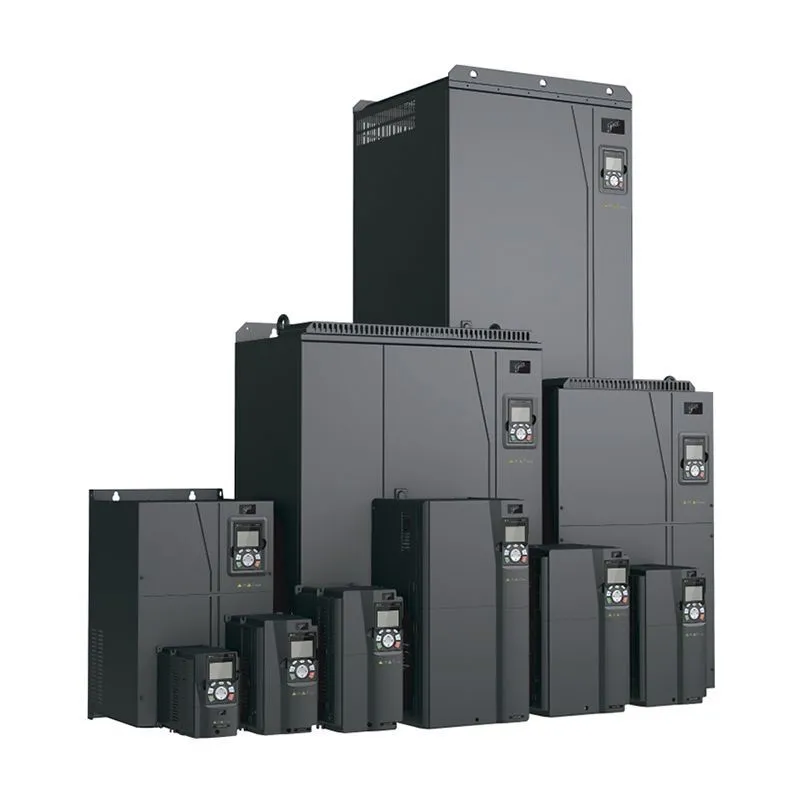

G540-00140UL-03 - 10HP, 480V, 3-phase VFD with IP20 enclosure, modbus communication protocol and external keypad.
| Capacity | 14 A | 14 A |
Model: G540-00140UL-03
Brand: GALT ELECTRIC
Product Condition: New
Warranty: 3 Years
HP Rating @ 120% OL: 10 HP
HP Rating @ 150% OL: 5 HP
Amp Rating @ 120% OL: 14 A
Amp Rating @ 150% OL: 9.5 A
Rated Voltage: 460 V, 480 V
Output Amperage Rating: 9.5 A
Phase Rating: 3 Phase Input - 3 Phase Output
Constant Torque / Variable Torque: Variable Torque/Constant Torque
Phase: Three Phase
Enclosure Rating: IP 20
Series: G500
Ambient Temperature Rating: 40 °C
Rated Amps: 14 A
Horsepower Rating: 10 HP, 5 HP
Frame Size: 2
Height: 10.10 in
Width: 5.80 in
Depth: 7.60 in
