350 ton x 14'
| size | 350 Ton X 14' | 350 Ton X 14' |
| Tonnage | 350 T | 317.515 t |
| Type | HYD | HYD |
| Overall Length | 169" | 4.3 m |
| Between Housings | 148" | 3.8 m |
| Stroke | 11.8" | 299.72 mm |
| Dimensions | 181 x 70 x 112 | 181 x 70 x 112 |
| Weight | 52900 | 52900 |

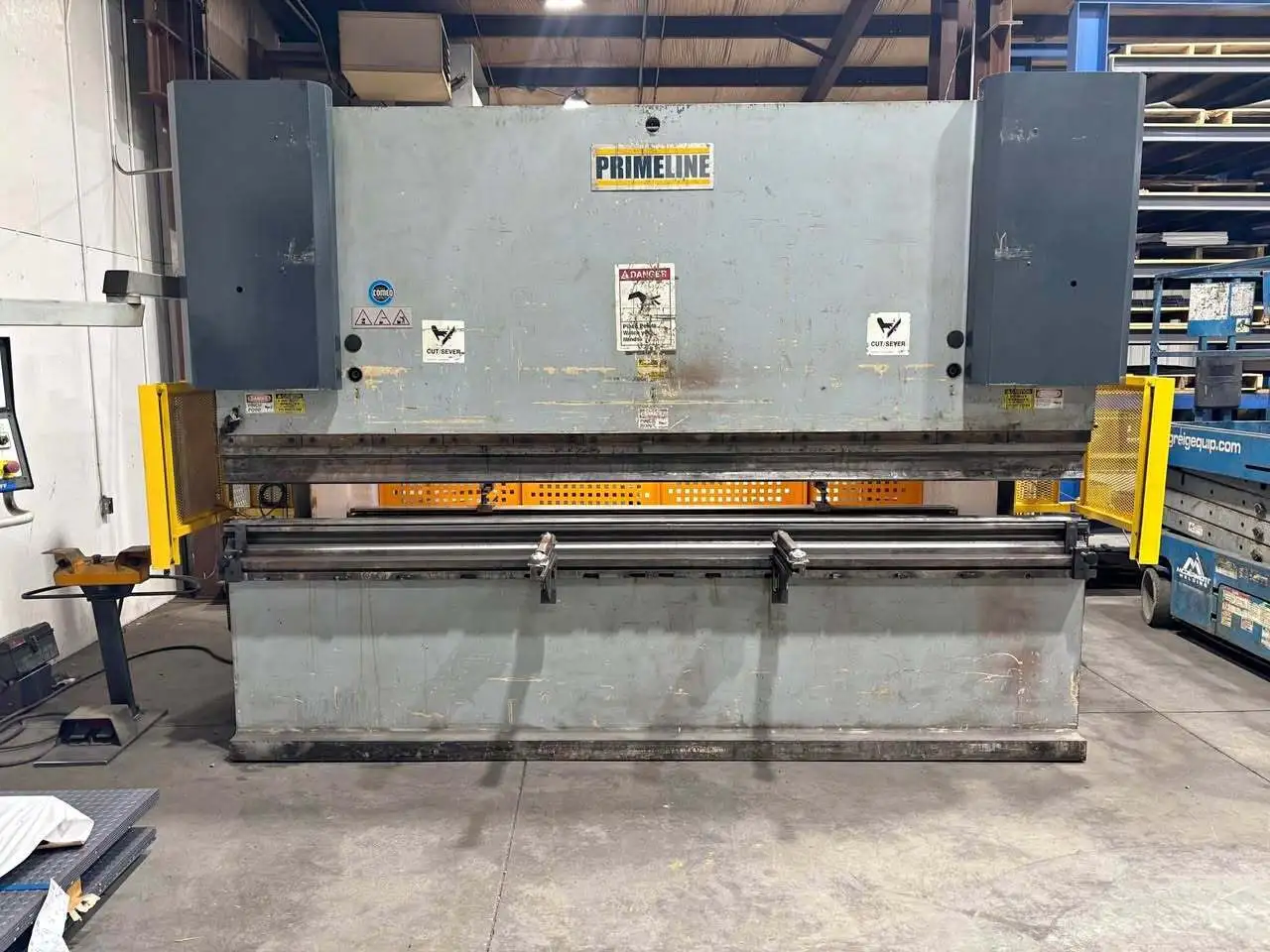

Baykal Primeline 350X14 Hydraulic Press Brake (2007)
Overall Capacity-350 Ton X 14′
Bending Length: 169″
Distance Between Columns: 148
Open Height: 20.2″
Stroke: 11.82″
Throat: 15.75″
Table Height: 36.63″
Back Gauge Speed
X Axis Speed: 23.63 In/sec
R Axis Speed: 14.18 In/sec
Back Gauge Stroke: 29.54″
Rapid Approach Speed: 3.175 In/sec
Pressing Speed: 0.47 In/sec
Return Speed: 5.67 In/sec
Main Power 40 HP
Hydraulic Tank Capacity: 79 Gallons
Electrics 220/440/3/60
Top punch and 4 way bottom die
