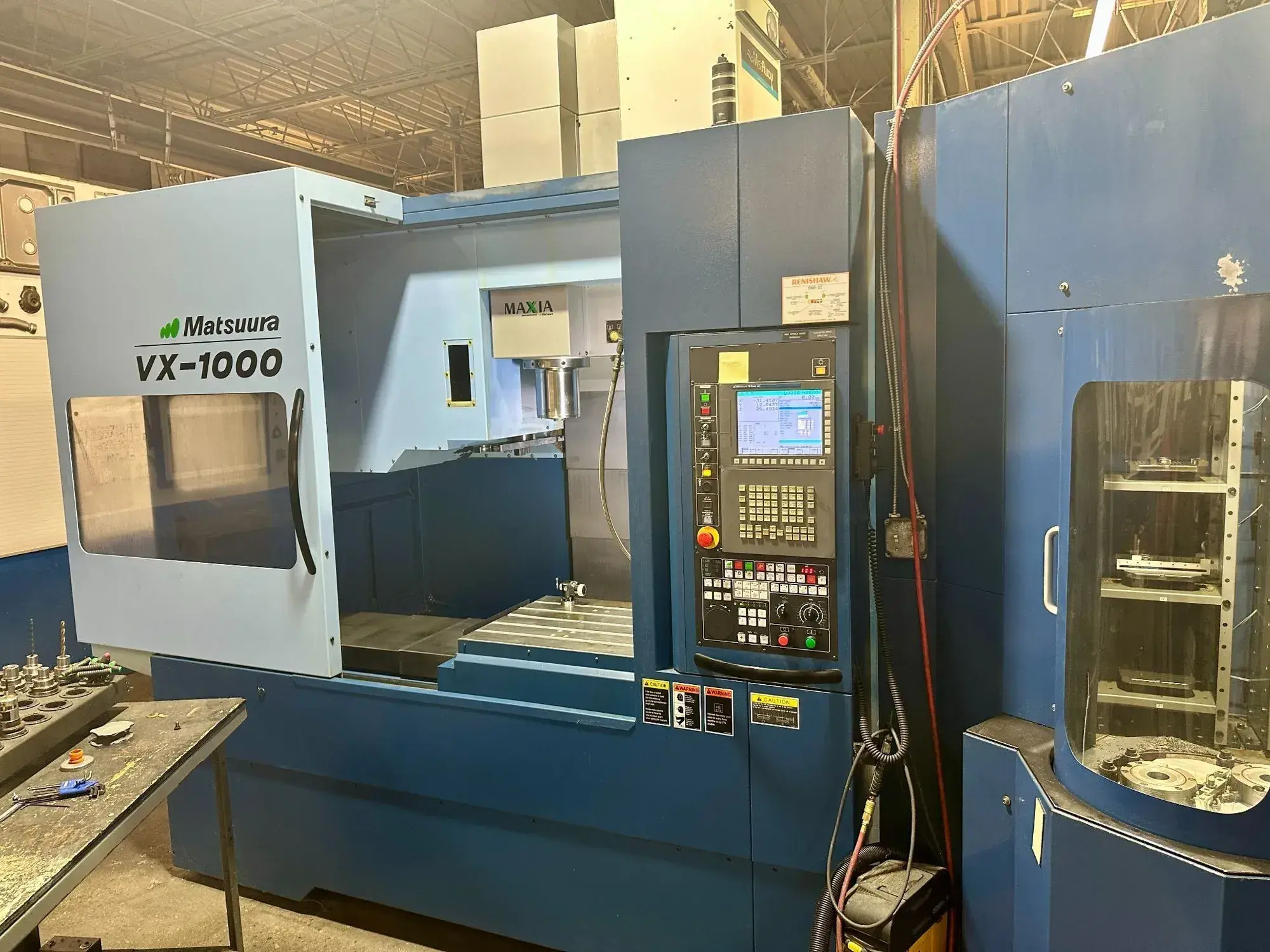

Matsuura VX-1000 CNC Vertical Machining Center w/ Pallet Shuttle System, Matsuura G-Tech 31i CNC Control, 47" x 23.6" Table, X=40.15", Y=24.01", Z=24.01", 24 Station Pallet Shuttle System w/ Fanuc Robot, CAT 40 Taper, 20000 Max Spindle RPM, 30 ATC, TSC, Chip Conveyor, New 2018.
| X | 1,020 mm | 40.158" |
| Y | 610 mm | 24.016" |
| Z | 610 mm | 24.016" |
| RPM | 15,000 RPM | 15,000 RPM |
| # ATC | 30 | 30 |
| Taper | BT40 | BT40 |
| Table-W | 600 mm | 23.622" |
| Table-L | 1,200 mm | 47.244" |
| # Axis | 3 | 3 |
CNC Control Matsuura G-Tech 31i CNC
# Axis 3
Table-L 47.24"
Table-W 23.62"
Max Table Load Capacity 1,100 lb
X-Axis (Longitudinal Travel) 40.15"
Y-Axis (Cross Travel) 24.01"
Z-Axis (Vertical Travel) 24.01"
X-Axis Rapid Traverse Rate 1,574.8 in/min.
Y-Axis Rapid Traverse Rate 1,574.8 in/min.
Z-Axis Rapid Traverse Rate 1,417.3 in/min.
Max Spindle Speed 20,000 RPM
Spindle Taper CAT 40
Coolant Through Spindle Yes
Automatic Tool Changer Capacity (ATC) 30
Electrics 220/3/60
24 Station Pallet Shuttle System w/ Fanuc Robot, Matsuura G-Tech Fanuc 31i CNC Control, 20000 RPM Spindle-Cat 40, Through Spindle Coolant & Flush Coolant, Renishaw Part & Touch Probe, Mist Collector, Spindle Chiller, Coolant System & Chip Conveyor.
Brand new spindle was installed in September.
* New Replacement Cost 700k
