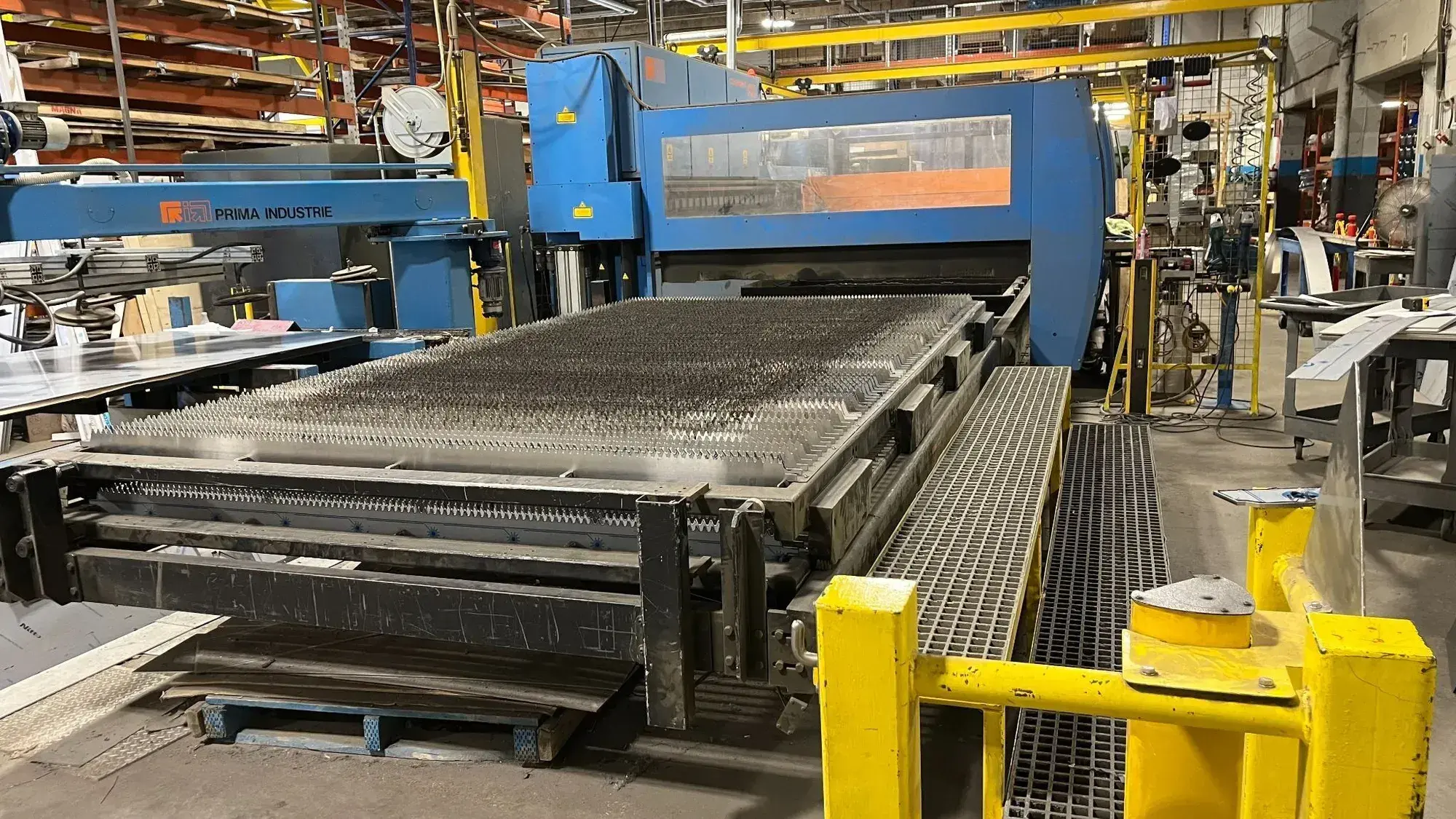

2008 Prima Platino 2040 Laser Cutting Machine. Machine is in good condition and available for inspection as needed.
| Sheet-W | 78" | 1,981.2 mm |
| Sheet-L | 157" | 3,987.8 mm |
| Wattage | 4000 w | 4,000 W |
| IPM | 5460 ipm | |
| X | 80" | 2,032 mm |
| Y | 160" | 4,064 mm |
| Z | 6" | 152.4 mm |
Laser Capacity: 5,000 Watt
Y-Axis Travel: 160″
X-Axis Travel: 80″
Z-Axis Travel: 6″
Rapid Traverse: 4,330 IPM
Table Size: (2m x 4m) 6′ x 12′
Number of Tables: 2
CNC CONTROL: PRIMACH 20L, PC Based
Approx Weight: 25,000 LBS
• Laser tube up to 6’’ OD
• Primach 20L PC Based CNC Control
• Prima 5000 Watt Laser
• Cantilever Flying Optic Laser Resonator
• Capacitive Style Quick Change Cartridge Cutting Head
• 5″, 7.5″ & 10″ Focal Lens
• Quick Pierce
• Auto Focus
• Programmable Assist Gas
• Laser Piercing Monitor (LPM)
• Automatic Shut Off
• Automatic Sheet Referencing
• Safe Impact Protection System
• Chiller Unit
• Duster Unit
