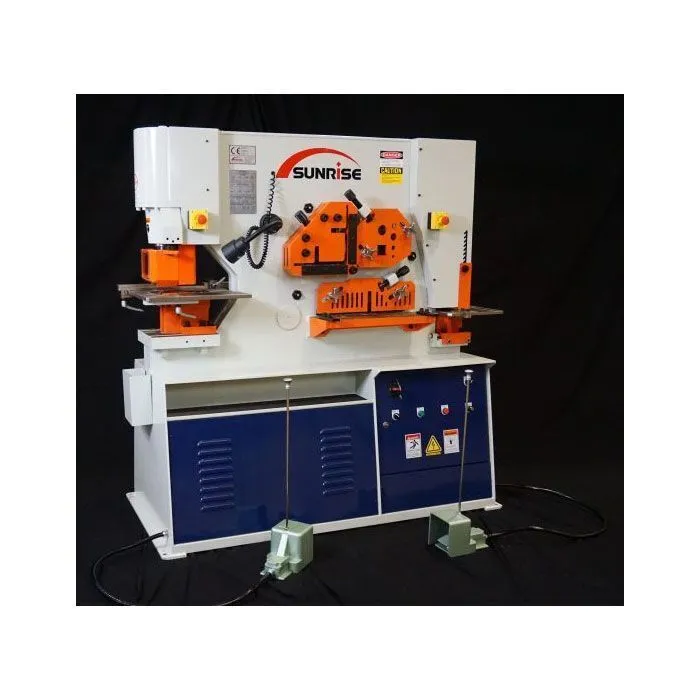

SUNRISE Model IW Dual Cylinder Ironworkers range in capacities from 66 to 185 Tons and feature two high-speed cylinders with two-position foot pedals. The dual-cylinder series ironworkers are built with the SUNRISE tradition of well-engineered products for high power, quality, and reliability at an incredible price.
| Punch Tonnage | 88 T | 79,832.4 kg |
| Punch Max. Capacity | 1" in 7/8" | 2" in 1/2" | 1" in 7/8" | 2" in 1/2" |
| Angle Shear - Maximum Capacity | 6" x 6" x 1/2" – 3" x 3" x 3/8" Miter | 6" x 6" x 1/2" – 3" x 3" x 3/8" Miter |
| Notcher | 2" x 3-1/2" x 1/2" | 2" x 3-1/2" x 1/2" |
| Shear Capacity Plate | 18" x 9/16" or 12" x 7/8" | 18" x 9/16" or 12" x 7/8" |
| Angle (L1) | 6" | 152.4 mm |
| Angle (L2) | 6" | 152.4 mm |
| Angle (T) | 0.5" | 12.7 mm |
| Throat Depth | 12" | 304.8 mm |
| Electrics | 3-Phase, 220/480v | 3-Phase, 220/480v |
| Power | 10 hp | 10 hp |
| Dimensions | 73 x 33 x 70 in. | 73 x 33 x 70 in. |
| Weight | 4,825 lbs. | 4,825 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor
Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
