SUNRISE Model IW Dual Cylinder Ironworkers range in capacities from 66 Tons to 185 Tons and feature two High-Speed cylinders with two-position foot pedals. The dual-cylinder series ironworkers are built with the SUNRISE tradition of well engineered products for high power, quality and reliability at an incredible price.
| Punch Tonnage | 66 T | 59,874.3 kg |
| Punch Max. Capacity | 7/8" in 3/4" | 2" in 5/16" | 7/8" in 3/4" | 2" in 5/16" |
| Angle Shear - Maximum Capacity | 5" x 5" x 1/2" – 3" x 3" x 3/8" Miter | 5" x 5" x 1/2" – 3" x 3" x 3/8" Miter |
| Notcher | 2" x 3-1/2" x 3/8" | 2" x 3-1/2" x 3/8" |
| Shear Capacity Plate | 14" x 9/16" or 10" x 3/4" | 14" x 9/16" or 10" x 3/4" |
| Angle (L1) | 5" | 127 mm |
| Angle (L2) | 5" | 127 mm |
| Angle (T) | 0.5" | 12.7 mm |
| Throat Depth | 20" | 508 mm |
| Electrics | 3-Phase, 220/480v | 3-Phase, 220/480v |
| Power | 7.5 hp | 7.5 hp |
| Dimensions | 82 x 32 x 68 in. | 82 x 32 x 68 in. |
| Weight | 4,875 lbs. | 4,875 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor

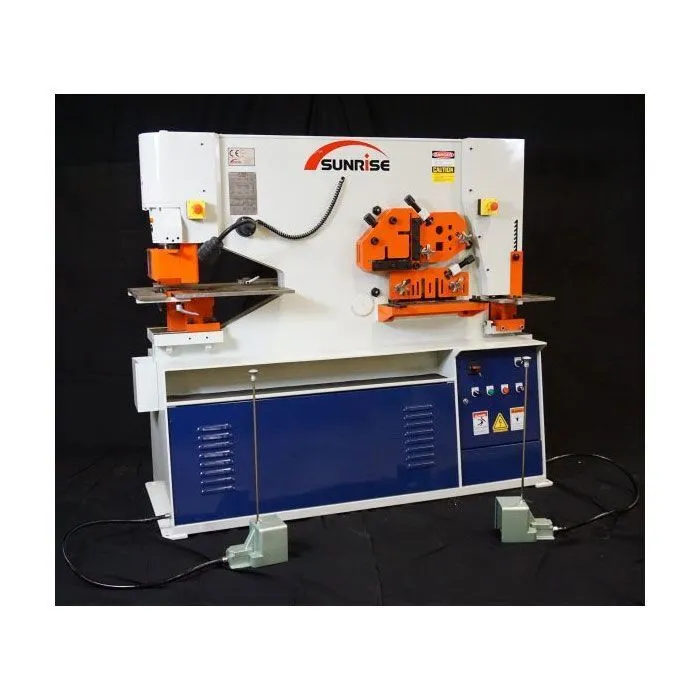

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
