SUNRISE Model IW Dual Cylinder Ironworkers range in capacities from 66 Tons to 185 Tons and feature two High-Speed cylinders with two-position foot pedals. The dual-cylinder series ironworkers are built with the SUNRISE tradition of well engineered products for high power, quality and reliability at an incredible price. Angle shear with no material loss cut and four-edge blades
| Punch Tonnage | 66 T | 59,874.3 kg |
| Punch Max. Capacity | 7/8" in 3/4" | 1.5" in 5/16" | 7/8" in 3/4" | 1.5" in 5/16" |
| Angle Shear - Maximum Capacity | 5" x 5" x 1/2" – 3" x 3" x 3/8" Miter | 5" x 5" x 1/2" – 3" x 3" x 3/8" Miter |
| Notcher | 2" x 3-1/2" x 3/8" | 2" x 3-1/2" x 3/8" |
| Shear Capacity Plate | 14" x 9/16" or 10" x 3/4" | 14" x 9/16" or 10" x 3/4" |
| Angle (L1) | 5" | 127 mm |
| Angle (L2) | 5" | 127 mm |
| Angle (T) | 0.5" | 12.7 mm |
| Throat Depth | 12" | 304.8 mm |
| Stroke | 4" | 101.6 mm |
| Electrics | 3-Phase, 220/480v | 3-Phase, 220/480v |
| Power | 7.5 hp | 7.5 hp |
| Dimensions | 67 x 32 x 68 in. | 67 x 32 x 68 in. |
| Weight | 3,975 lbs. | 3,975 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor

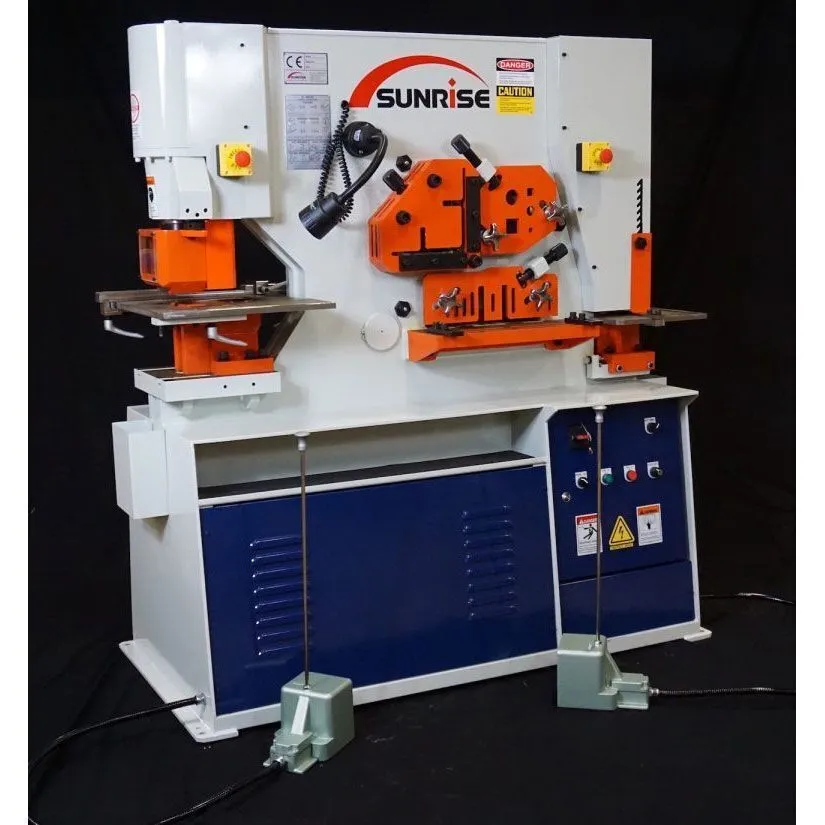

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
