The K-Series is a specially designed ironworker with vertical movement on all stations. The main slide moves up and down to provide optimum results for punching, shearing, notching, and bending without other moving parts. The 66KBN has an integrated 4" Press-Brake and Rectangular Notcher – With Guards.
| Punch Tonnage | 66 T | 59,874.3 kg |
| Punch Max. Capacity | 7/8" in 3/4" | 1.5" in 5/16" | 7/8" in 3/4" | 1.5" in 5/16" |
| Angle Shear - Maximum Capacity | 4" x 4" x 3/8" | 4" x 4" x 3/8" |
| Press Brake Attachment | 4" x 3/8" | 4" x 3/8" |
| Notcher | 2" x 3-1/2" x 5/16" | 2" x 3-1/2" x 5/16" |
| Shear Capacity Plate | 14" x 9/16" | 14" x 9/16" |
| Angle (L1) | 4" | 101.6 mm |
| Angle (L2) | 4" | 101.6 mm |
| Angle (T) | 0.375" | 9.525 mm |
| Throat Depth | 7" | 177.8 mm |
| Electrics | 3-Phase, 220/480v | 3-Phase, 220/480v |
| Power | 7.5 hp | 7.5 hp |
| Dimensions | 67 x 32 x 68 in. | 67 x 32 x 68 in. |
| Weight | 3,975 lbs. | 3,975 lbs. |
Specifications are subject to change without notice.
NOTE: Data is provided by the manufacturer.
WARRANTY: 3 YEAR – Parts
WARRANTY: 1 YEAR – Labor

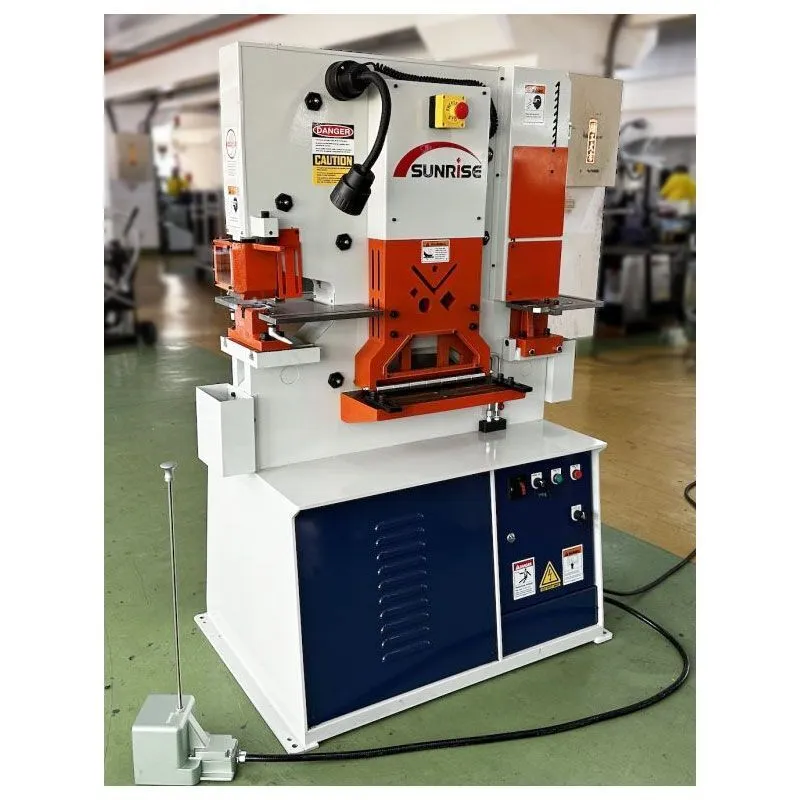

Machine Photo May Include Optional Equipment
Product image is only a representation, actual product appearance may differ slightly
